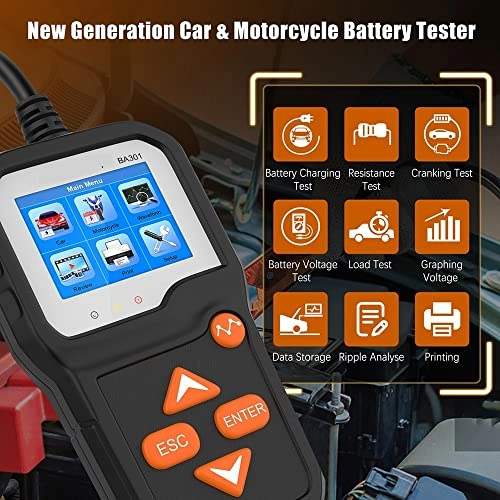

BA301 Battery Tester 6V Motorcycle Tool Cranking Test 12V Car Battery Analyzer Circuit Car Battery Tester Batteries Charger Automotive Tools
BA301 Battery Tester adopts the state-of-art conductance testing technology in the word to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery,healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintence personnel to find the problem quickly and accurately. thus to achieve quick vehicle repair.
Top reasons to choose Professional car battery tester BA301
1. Support test wide range of 6V/12V batteries.
2. Simple and easy to use
3. Test batteries IN/ OUT of the vehicle
4. Accurate results in milliseconds
5. Battery life analysis, health percentage
6. Analysis Result: Good, Recharge or Replace
7. Lifetime update free and print via PC.
8. Add One-key entering battery voltage waveform analysis
9. 3 LED indicators directly tells you what happened to your battery
10. imported STM-32 103VCT6 Chip Set, Faster running speed.
BA301 12V Battery Tester Functions and Features:
1.System voltage: 6-12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (m)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, Life-time free update service
10.Battery test, cranking test, charging test and other additional functions.
Cranking Test
The cranking test is used to test and analyze the actual required cranking current and cranking voltage to check the starting motor works properly or not. The test result displays cranking time, voltage, and status. If the stating malfunction may cause an increased starting loaded torque; or rotor friction of the starting motor generates increasing friction of the starting motor itself.
Charging Test
Charging test is used to check and analyze the charging system (generator, rectifier, rectifier diode, etc.) status, displays load voltage, unloaded voltage, ripple status, charging system status, thus to find out whether the output voltage of the generator is normal, the rectifier diode works properly or not, which avoids damaging the battery and shortening its life greatly due to overcharging or incomplete charging.

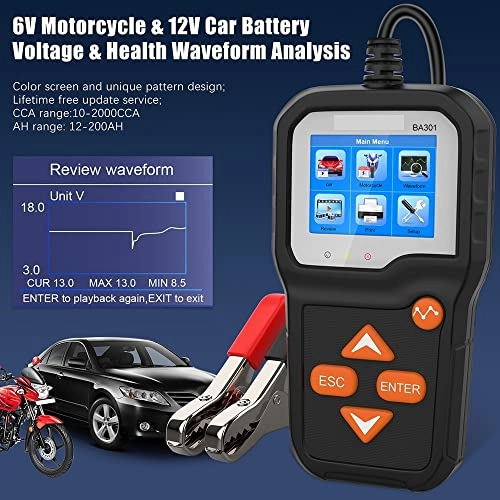

Monitor Real-time Voltage
BA301 battery tester can monitors real-time voltage to check battery health status. There's a hot-key to directly one-click read the voltage change graph. The waveform displays current voltage, maximum, and minimum voltage during ignition, and it will stay static until there are voltage changes detected. By analyzing the voltage of discharge, starting, and charging to know if the battery needs to be replaced or not.
Operation interface display
BA301 Cover 9 Measure Standards:
1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9SAE:100-2000

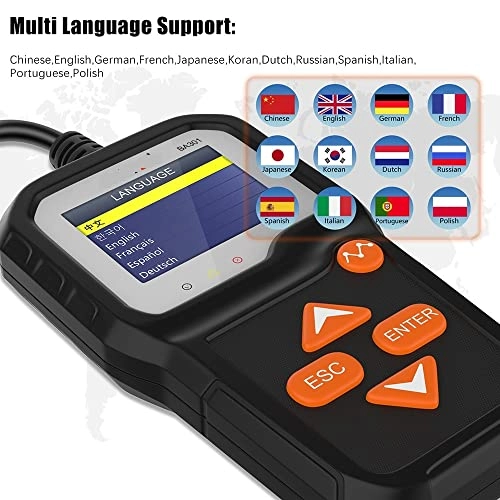

BA301 Battery Tester Support Multi-language
Chinese, English, German, French, Japanese, Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish
BA301 12V Battery Tester support car models
Motorcycles, Boat, Light Truck, SUV, Sedan

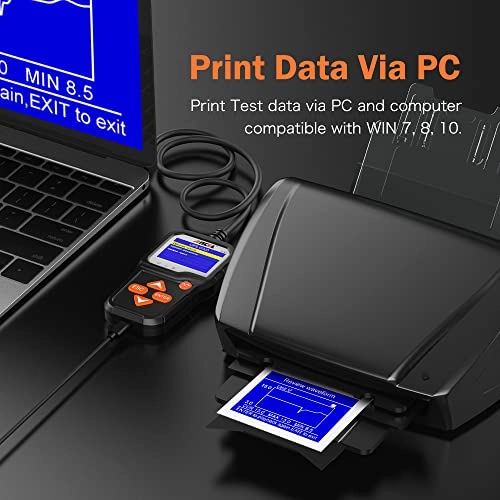

12V Battery Analyzer Support Free Update and Printing Test Report
Supports XP, WIN7, WIN8, WIN 10 laptop and support free upgrade system and print data on PC.
BA301 details

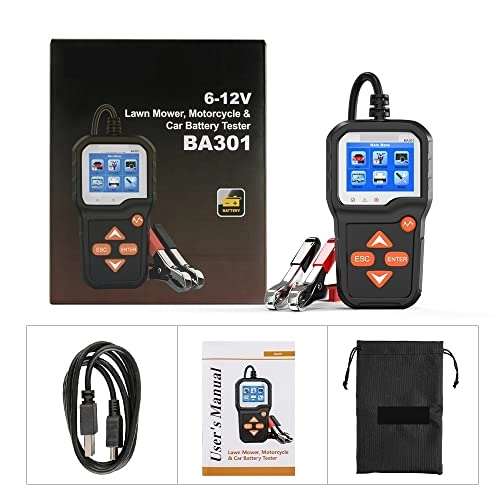

100% Original BA301 Packing list:
BA301*1
USB Cable*1
Nylon bag*1
Quick Manual*1
Paper Box*1
