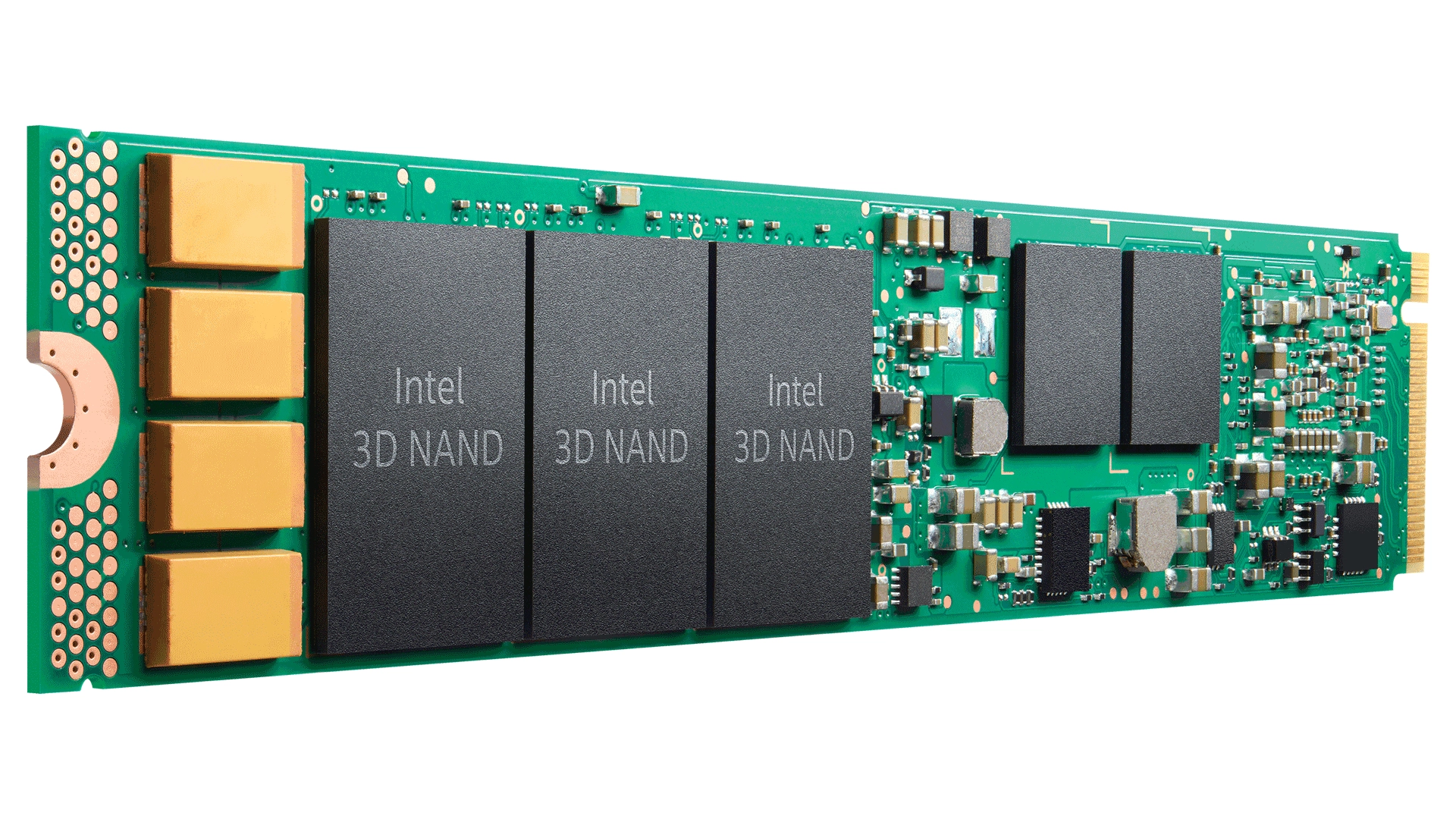

Intel DC P4511 - 1 TB M.2 22110

Name: Intel DC P4511 - 1 TB M.2 22110
Brand: Intel
SKU: 367704
Availability: InStock

Best offer

AED

991⁰⁶

Key Features

Random read (100% span): 295000IOPS
Random write (100% span): 31000IOPS
Write latency: 40µs
Read latency: 85µs
Component for: Server/workstation
SSD temperature monitoring: Yes
End-to-End Data Protection: Yes
Enhanced Power Loss Data Protection technology: Yes
Sequential latency - read (up to): 15µs
Sequential latency - write (up to): 20µs
Random latency - read (up to): 100µs
Random latency - write (up to): 50µs
Average power consumption (read): 7.6W
Average power consumption (write): 7.6W
Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read

Specifications

Features

Product series

Intel® SSD DC P4511 Series

Launch date

Q2'18

Temperature monitoring and logging

✓

Mean time between failures (MTBF)

2000000 h

Security algorithms

256-bit AES

Uncorrectable Bit Error Rate (UBER)

< 1 per 10^17 bits read

Power consumption (idle)

3.50 W

Random latency - write (up to)

50 µs

Random latency - read (up to)

100 µs

Sequential latency - write (up to)

20 µs

Sequential latency - read (up to)

15 µs

SSD temperature monitoring

✓

Component for

Server/workstation

Weight & dimensions

Weight

14 g

Height

22 mm

Width

110 mm

Power

Average power consumption (read)

7.60 W

Average power consumption (write)

7.60 W

Performance

Maximum operating temperature

55 °C

Minimum operating temperature

0 °C

Other features

Product family

Data center SSD

Power consumption (active)

7.60 W

SSD power consumption (idle)

3.5W

SSD endurance rating

Up to 0.98PBW

SSD shock

1000G (0.5ms)

Sequential writing speed

1000 MB/s

Sequential reading

1950 MB/s

SSD ARK ID

137107

Intel High Endurance Technology (HET)

✗

Processor special features

Intel® Rapid Start Technology

✗

Intel® Smart Response Technology

✗

Storage

NVMe

✓

SSD form factor

M.2

SSD capacity

1000 GB

Ports & interfaces

Interface

PCI Express 3.1

Operational conditions

Operating / non-operating shock

1000G (0.5ms)

Operating temperature (T-T)

0 - 55 °C

Non-operating vibration

3.13 G

Operating vibration

2.17 G

Technical details

Product codename

Cliffdale Refresh

Status

Launched

Commodity Classification Automated Tracking System (CCATS)

G162706

Security

Hardware encryption

✓

Enhanced Power Loss Data Protection technology

✓

End-to-End Data Protection

✓

Brand-specific features

Intel® Remote Secure Erase

✗

Logistics data

Export Control Classification Number (ECCN)

5A992C

Harmonized System (HS) code

84717070

Solid state drive

Memory type

TLC 3D NAND

Read latency

85 µs

Write latency

40 µs

Random write (100% span)

31000 IOPS

Random read (100% span)

295000 IOPS

Product Details

Enhanced Power Loss Data Protection Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data. Hardware Encryption Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion. Temperature Monitoring and Logging Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command. End-to-End Data Protection End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
