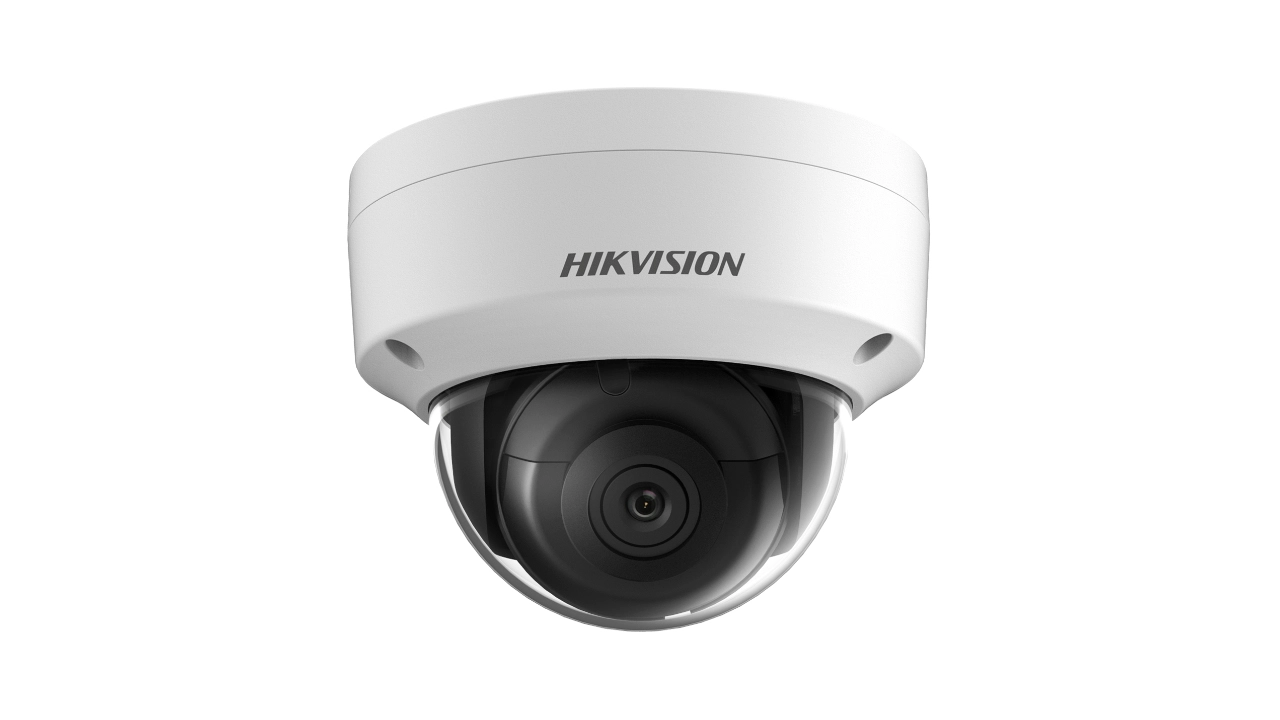

Hikvision DS-2CD2163G0-I

Name: Hikvision DS-2CD2163G0-I
Brand: Hikvision
SKU: 357496
Availability: InStock

Best offer

AED

353⁵²

Key Features

Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 63°°
Lens viewing angle, diagonal: 120°°
Power consumption (Power over Ethernet (PoE)): 9W
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Fixed focus: Yes
Type: IP security camera
Active tampering alarm: Yes
Mirror: Yes
Motion sensor: Yes
Sample rate: 48kHz
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3072 x 1728, 3072 x 2048, 320 x 240, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA)
Behavior analysis: Intrusion detection, Line crossing detection

Specifications

Features

Web browser

✓

Protection features

Dust resistant, Vandal proof, Water resistant

Voice codecs

G.711, G.722.1, G.726, MP2L2, PCM

Weatherproof

✓

Number of sensors

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Digital watermark

✓

Fixed focus

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Motion sensor

✓

Sample rate

48 kHz

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3072 x 1728, 3072 x 2048, 320 x 240, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA)

Packaging data

Package height

108 mm

Package depth

134 mm

Package width

134 mm

Weight & dimensions

Weight

500 g

Height

82.40 mm

Diameter

111 mm

Length

82.40 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (max)

7.50 W

Power over Ethernet (PoE)

✓

DC output current

0.60 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

9 W

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

355 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SDHC, SDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling

Form factor

Dome

Packaging content

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP

Streaming method

Multicast

Cabling technology

10/100Base-T(X)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

DC-in jack

✓

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Anti-flicker

✓

Lens system

Minimum aperture number

1.20

Maximum aperture number

Number of lenses

Fixed focal length

2.80 mm

Noise reduction technology

3D noise reduction

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, DNR, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Heartbeat

✓

Camera

Day/night mode

✓

Lens diameter

2.80 mm

Gain control type

Auto

Back Light Compensation (BLC)

✓

Camera shutter speed

1/3 - 1/100000 s

3D NR (Noise Reduction)

✓

Region of Interest (ROI) encoding

✓

Total megapixels

6 MP

Number of cameras

Bit rate

32 Kbps - 16 Mbps

Analog signal format system

PAL

Sensor type

CMOS

Lens viewing angle, horizontal

97°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Lens viewing angle, diagonal

120°

Lens viewing angle, vertical

63°

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

3072 x 2048 pixels

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

30 m

Infra-red wavelength

850 nm

Product Details

Pro Series (All) With a perfect balance of performance and value, Hikvision Pro Series network cameras aim to provide just the right components, including intelligent features that are affordable and easy to use.

Hikvision AcuSense technology

Integrated with automatic triggering, Hikvision AcuSense Technology takes alarm accuracy and search efficiency to a whole new level.

Deep Learning Algorithm

The Magic Behind It All As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Human and Vehicle Intrusion

Spotlights the Events that Matter The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Accurate Alarm for Human and Vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Visual and Auditory Warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.

Search Targets Quickly by Type

Video clips are sorted by human and vehicle categories, and object classification vastly improves search efficiency.

Files

Product Brochure

mmo_59938474_1634398250_248_51025.pdf

PDF• 1 MB

User manual

mmo_59938474_1634398275_4034_10784.pdf

PDF• 4.7 MB

Quick Start Guide

mmo_59938474_1634398258_4719_9306.pdf

PDF• 2.6 MB

Videos

Turbo HD X security system, from responsive to active

MP4• 21.4 MB

Reviews
