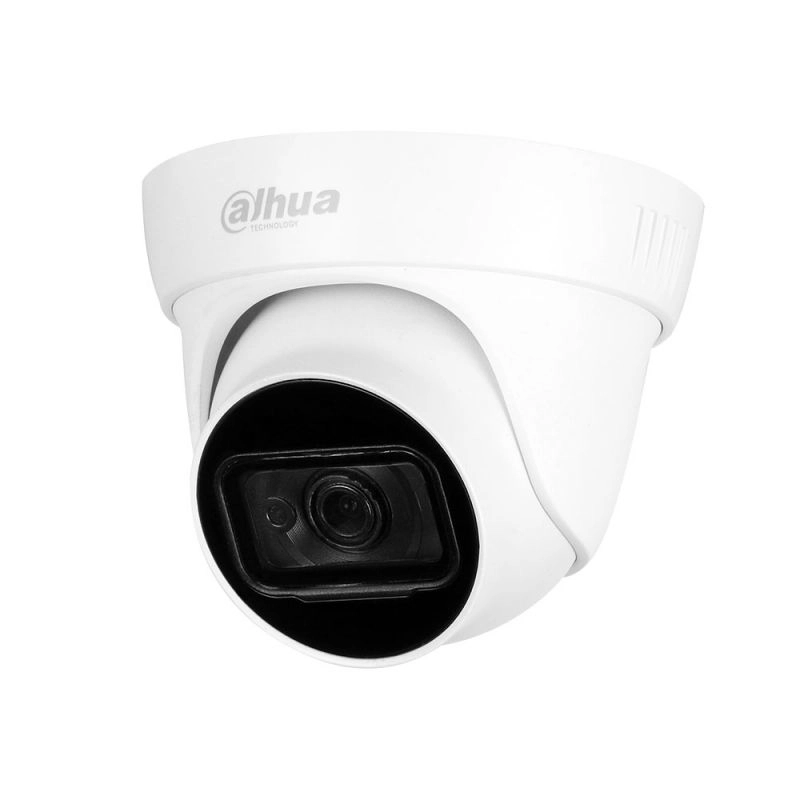

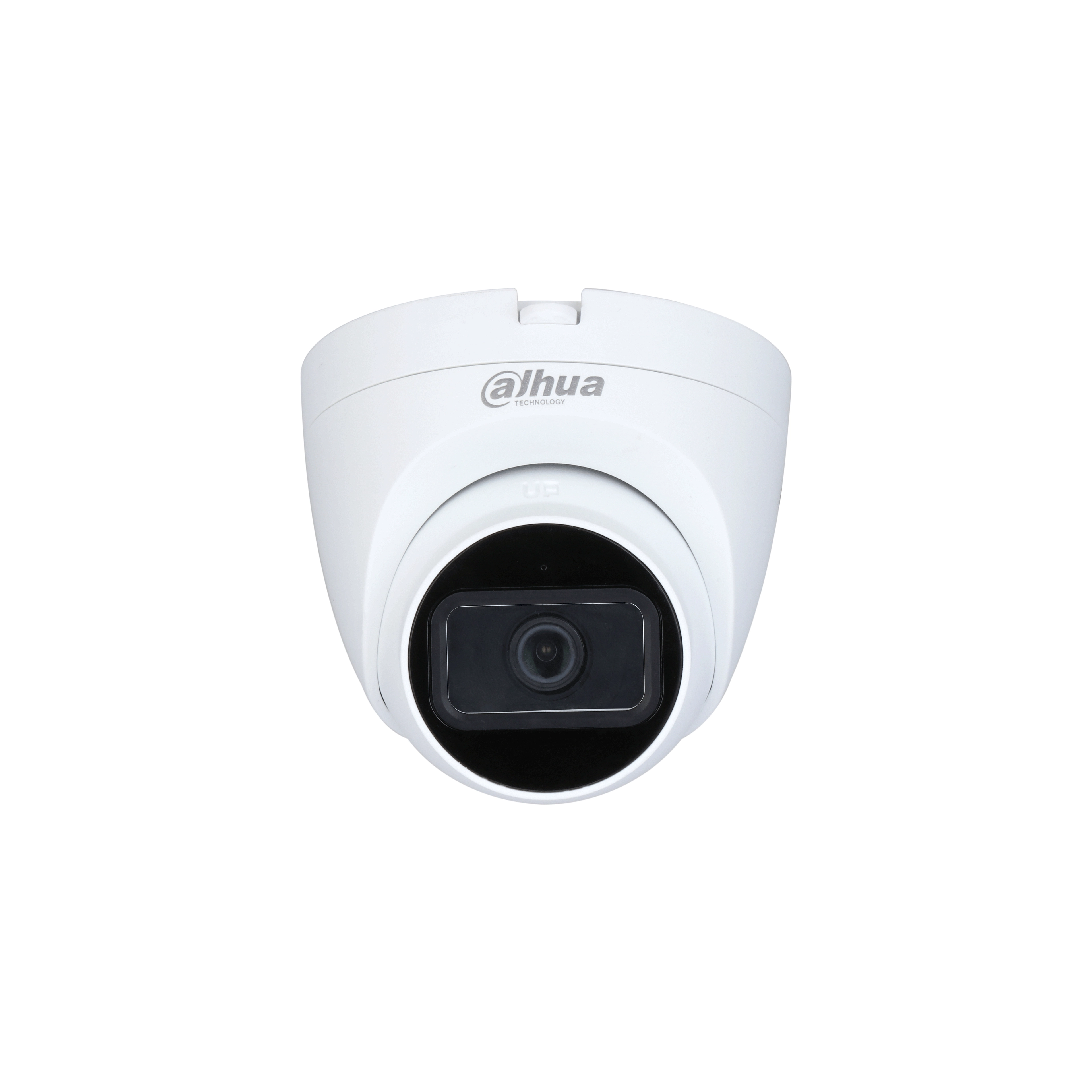

Dahua Technology HAC-HDW1200TLMQ-A

Best offer
AED
8800

Key Features

  • Camera tilt control: Yes
  • Detect distance: 41.1m
  • Observe distance: 16.5m
  • Recognize distance: 8.3m
  • Camera pan control: Yes
  • Noise reduction technology: 3D noise reduction
  • Lens viewing angle, vertical: 60°°
  • Lens viewing angle, diagonal: 129°°
  • Identify distance: 4.1m
  • Infrared (IR) cut-off filter: Yes
  • Fixed focus: Yes
  • Type: CCTV security camera
  • Mirror: Yes
  • Fog proof: Yes
  • Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 960 x 480, 960 x 576
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Protection features
Dust resistant, Splash proof, Water resistant, Waterproof
Number of sensors
1
Built-in microphone
✓
Languages support
Multi
Video motion detection
✓
Connectivity technology
Wired
Product colour
White
Fixed focus
✓
Type
CCTV security camera
Mirror
✓
Fog proof
✓
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 960 x 480, 960 x 576
Detect distance
41.10 m

Packaging data

Package weight
420 g

Weight & dimensions

Weight
300 g
Height
85.80 mm
Depth
97 mm
Width
85.70 mm
Diameter
94 mm

Power

Power consumption (max)
2.60 W
Power over Ethernet (PoE)
✗
Power source type
DC
DC output voltage
12

Performance

Number of effective pixels (H x V)
1920 x 1080 pixels
Camera pan control
✓

Other features

Noise reduction
✓

Ergonomics

Angle of rotation
360 °

Storage

Built-in HDD
✗

Design

International Protection (IP) code
IP67
Housing material
Aluminium, Metal, Plastic
Placement supported
Indoor, Indoor/Outdoor
Mounting type
Ceiling, Ceiling/Wall, Ceiling/Wall/Pole
Form factor
Turret
Built-in light
✓

Network

Wi-Fi
✗
Bluetooth
✗
Ethernet LAN
✗

Ports & interfaces

Interface
BNC
BNC output ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %

Technical details

Sustainability compliance
✓
Certification
ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1), CE (EN55032, CE (EN55032:2015, CE-EMC: EN 55032, CE-LVD: EN 62368-1, EN 55035, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, EN55024, EN55024:2010+A1:2015, FCC: 47 CFR FCC Part 15, Subpart B, UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Compliance certificates
CE

Audio

Audio system
2-way
Automatic gain control
✓
Built-in speaker(s)
✓

Lens system

Number of lenses
1
Lens mount interface
Board mount
Minimum aperture number
2
Maximum aperture number
1.90
Fixed focal length
2.80 mm
Identify distance
4.10 m
Noise reduction technology
3D noise reduction
Recognize distance
8.30 m
Observe distance
16.50 m

Video

Frame rate
30 fps
Smart IR
✓
Privacy masking
✓
Supported video modes
1080p, 720p

Focusing

Closest focusing distance
0.50 m

Camera

Day/night mode
✓
Gain control type
Auto
Back Light Compensation (BLC)
✓
Number of Privacy masking areas
8
Field of view (FOV) angle
89.90 °
Camera shutter speed
1/30 - 1/100000 s
Bit rate control
Constant Bit Rate (CBR)
Analog signal format system
NTSC
Total megapixels
2 MP
Number of cameras
1
Signal-to-Noise Ratio (SNR)
65 dB
Sensor type
CMOS
Lens viewing angle, horizontal
102°
Progressive scan
✓
White balance
Auto
Full HD
✓
Wide Dynamic Range (WDR)
✓
Auto focus
✗
Highlight Compensation (HLC)
✓
Digital Wide Dynamic Range (DWDR)
✓
Lens viewing angle, diagonal
129°
Lens viewing angle, vertical
60°
Camera tilt control
✓

Shutter

Camera shutter type
Electronic

Pan-tilt unit

Tilt angle range
0 - 78 °
Pan range
0 - 360 °

Image sensor

Maximum resolution
1920 x 1080 pixels
Minimum illumination
0 lx
Infrared (IR) cut-off filter
✓

Night vision

Night vision
✓
LED type
IR
Night vision distance
20 m
Number of illumination LEDs
2

Radar

Detection distance
53 m

Product Details

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios. Smart Dual Light With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution. Broadcast-quality Audio Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence. Super Adapt With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images. Advanced 3DNR Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space. Protection (IP67, Wide Voltage) IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios. 4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install. * Audio input is available for select HDCVI camera models. Long Distance Transmission HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.
