HAC-HDW2802T-A
HAC-HDW2802T-A
HAC-HDW2802T-A
HAC-HDW2802T-A
HAC-HDW2802T-A
HAC-HDW2802T-A

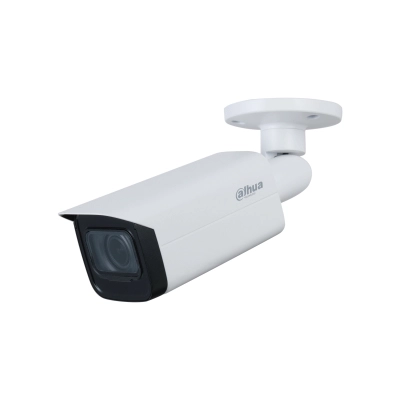

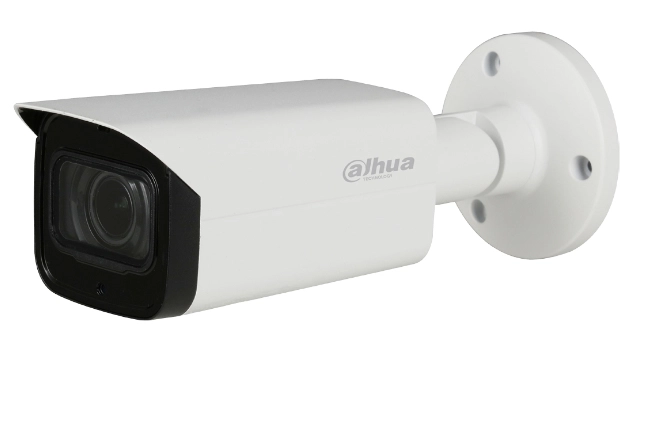

Dahua Technology HAC-HDW2802T-A

Best offer
AED
36200

Key Features

  • Camera tilt control: Yes
  • Detect distance: 189.6m
  • Observe distance: 42m
  • Recognize distance: 21m
  • Camera pan control: Yes
  • Noise reduction technology: 3D noise reduction
  • Lens viewing angle, vertical: 60 - 26°°
  • Lens viewing angle, diagonal: 133 - 53°°
  • Identify distance: 10m
  • Infrared (IR) cut-off filter: Yes
  • Type: CCTV security camera
  • Mirror: Yes
  • Flip & mirror: Yes
  • Supported graphics resolutions: 2560 x 1440, 2880 x 1620, 3840 x 2160, 3860 x 2160, 960 x 480, 960 x 576
  • Recognize distance (wide): 16.7m
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Number of sensors
1
Built-in microphone
✓
Cloud-managed
✗
Languages support
Multi
Connectivity technology
Wired
Product colour
White
Type
CCTV security camera
Mirror
✓
Flip & mirror
✓
Supported graphics resolutions
2560 x 1440, 2880 x 1620, 3840 x 2160, 3860 x 2160, 960 x 480, 960 x 576
Recognize distance (wide)
16.70 m
Recognize distance (tele)
37.90 m
Detect distance
189.60 m

Packaging data

Package weight
660 g

Weight & dimensions

Weight
480 g
Height
90 mm
Depth
244.10 mm
Width
90.40 mm
Diameter
106 mm
Length
93.60 mm

Power

Power consumption (typical)
8.10 W
Power consumption (max)
11.30 W
Power source type
DC
DC output voltage
12, 24

Performance

Camera pan control
✓

Other features

Noise reduction
✓

Ergonomics

Angle of rotation
360 °

Storage

Built-in HDD
✗

Design

International Protection (IP) code
IP67
Housing material
Aluminium, Metal
Placement supported
Indoor/Outdoor, Outdoor
Mounting type
Ceiling, Ceiling/Wall/Pole, Wall
Form factor
Bullet

Network

Wi-Fi
✗
Bluetooth
✗
Ethernet LAN
✗

Ports & interfaces

DC-in jack
✓
BNC output ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %

Technical details

Certification
ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1), CE (EN55032, CE-EMC: EN 55032, CE-LVD: EN 62368-1, EN 55035, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, EN55024, FCC: 47 CFR FCC Part 15, Subpart B, UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Lens system

Number of lenses
1
Digital zoom
4 x
Minimum aperture number
1.50
Maximum aperture number
1.60
Fixed focal length
3.60 mm
Detect distance (wide)
83.40 m
Detect distance (tele)
189.60 m
Observe distance (wide)
33.40 m
Observe distance (tele)
75.80 m
Identify distance (wide)
8.30 m
Identify distance (tele)
19 m
Identify distance
10 m
Noise reduction technology
3D noise reduction
Recognize distance
21 m
Observe distance
42 m

Video

Frame rate
25 fps
Smart IR
✓
Privacy masking
✓

Focusing

Closest focusing distance
1.20 m

Camera

Day/night mode
✓
Gain control type
Auto/Manual
Back Light Compensation (BLC)
✓
Number of Privacy masking areas
8
Camera shutter speed
1/4 - 1/100000 s
Focal length range
2.7 - 13.5 mm
Analog signal format system
PAL
Total megapixels
8 MP
Number of cameras
1
Signal-to-Noise Ratio (SNR)
65 dB
Sensor type
CMOS
Lens viewing angle, horizontal
113 - 47°
Progressive scan
✓
White balance
Auto
Zoom capability
✓
Focus adjustment
1.5
Wide Dynamic Range (WDR)
✓
Auto focus
✓
Highlight Compensation (HLC)
✓
Digital Wide Dynamic Range (DWDR)
✓
Lens viewing angle, diagonal
133 - 53°
Lens viewing angle, vertical
60 - 26°
Camera tilt control
✓

Shutter

Camera shutter type
Electronic

Pan-tilt unit

Tilt angle range
0 - 90 °
Pan range
0 - 360 °

Image sensor

Maximum resolution
3840 x 2160 pixels
Minimum illumination
0 lx
Dynamic range
120 dB
Infrared (IR) cut-off filter
✓

Night vision

Night vision
✓
LED type
IR
Night vision distance
60 m
Number of illumination LEDs
4

Product Details

System Overview The Pro Series contains a series of highly reliable and flexible cameras, making it a great choice for SMB solutions and projects. It has Starlight technology, up to 130 dB true WDR and 3DNR, and produces vivid images in rich detail even under difficult lighting conditions. Functions Starlight With its large image sensor and large aperture, the camera delivers high performance and quality, even in low-light conditions. The starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light. Broadcast-quality Audio Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence. Wide Dynamic Range With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images. Super Adapt With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images. Smart IR Illumination With its IR illumination, the camera provides optimal performance in low light conditions, ensuring uniformity in the brightness of B/W images. Through its smart IR technology, the camera also compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure of images as targets move closer to the camera. 4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install. Long Distance Transmission HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory. Advanced 3DNR Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space. Protection (IP67, Wide Voltage) IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

Files

Product Brochure

mmo_113873835_1704194070_4404_12838.pdf

PDF• 481.9 KB

User manual

mmo_113873835_1704194105_2358_12232.pdf

PDF• 2 MB
