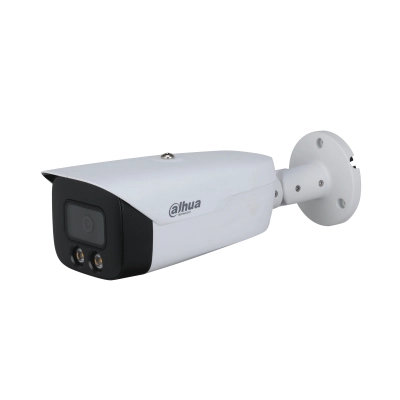

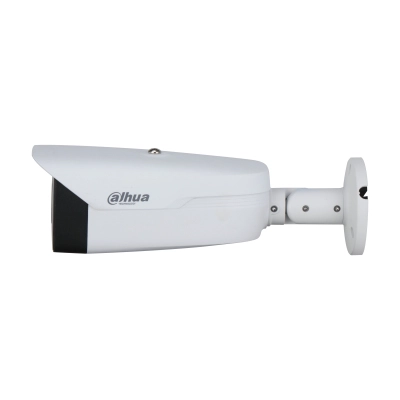

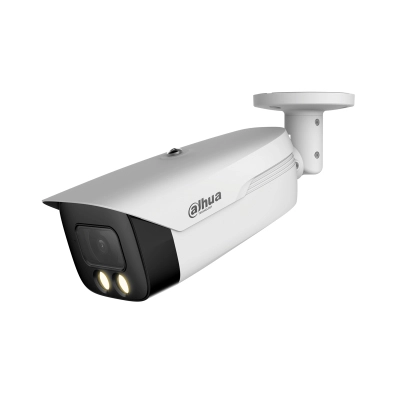

Dahua Technology DH-HAC-HFW1509CLP-A-LED

Name: Dahua Technology DH-HAC-HFW1509CLP-A-LED
Brand: Dahua Technology
SKU: 356488
Availability: InStock

Best offer

AED

179⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 80m
Observe distance: 32m
Recognize distance: 16m
Camera pan control: Yes
Noise reduction technology: 2D noise reduction
Lens viewing angle, vertical: 46°°
Lens viewing angle, diagonal: 104°°
Type: CCTV security camera
Mirror: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620, 960 x 480, 960 x 576
DC output voltage: 12
Angle of rotation: 360°
Built-in HDD: No
Form factor: Bullet

Specifications

Features

Protection features

Dust resistant, Waterproof

Number of sensors

Built-in microphone

✓

Connectivity technology

Wired

Product colour

White

Type

CCTV security camera

Mirror

✓

Supported graphics resolutions

1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620, 960 x 480, 960 x 576

Detect distance

80 m

Packaging data

Package weight

440 g

Weight & dimensions

Weight

290 g

Height

76.20 mm

Depth

304 mm

Width

80.20 mm

Length

198.40 mm

Power

Power consumption (max)

6.40 W

Power source type

DC output voltage

Performance

Camera pan control

✓

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor

Mounting type

Ceiling/Wall

Form factor

Bullet

Network

Wi-Fi

✗

Bluetooth

✗

Ethernet LAN

✗

Ports & interfaces

BNC output ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Certification

ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1), CE (EN55032, EN50130-4, EN55024, EN55032, EN60950-1 FCC (CFR 47 FCC 15/B, EN60950-1) FCC (CFR 47 FCC Part 15 subpartB

Compliance certificates

Lens system

Number of lenses

Maximum aperture number

Fixed focal length

3.60 mm

Noise reduction technology

2D noise reduction

Recognize distance

16 m

Observe distance

32 m

Video

Frame rate

30 fps

Smart IR

✓

Privacy masking

✓

Supported video modes

1080p, 720p

Focusing

Closest focusing distance

2.30 m

Camera

Day/night mode

✓

Gain control type

Auto/Manual

Back Light Compensation (BLC)

✓

Camera shutter speed

1/30 – 1/100000

Focal length range

3.6 mm

Analog signal format system

NTSC

Total megapixels

5 MP

Number of cameras

Signal-to-Noise Ratio (SNR)

65 dB

Sensor type

CMOS

Lens viewing angle, horizontal

88°

Progressive scan

✓

White balance

Auto

Wide Dynamic Range (WDR)

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

104°

Lens viewing angle, vertical

46°

Camera tilt control

✓

Shutter

Camera shutter type

Electronic

Pan-tilt unit

Tilt angle range

0 - 90 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2880 x 1620 pixels

Minimum illumination

0 lx

Night vision

✓

LED type

Night vision distance

40 m

Product Details

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.

Files

Product Brochure

mmo_93013783_1634302010_7477_23890.pdf

PDF• 488.7 KB
