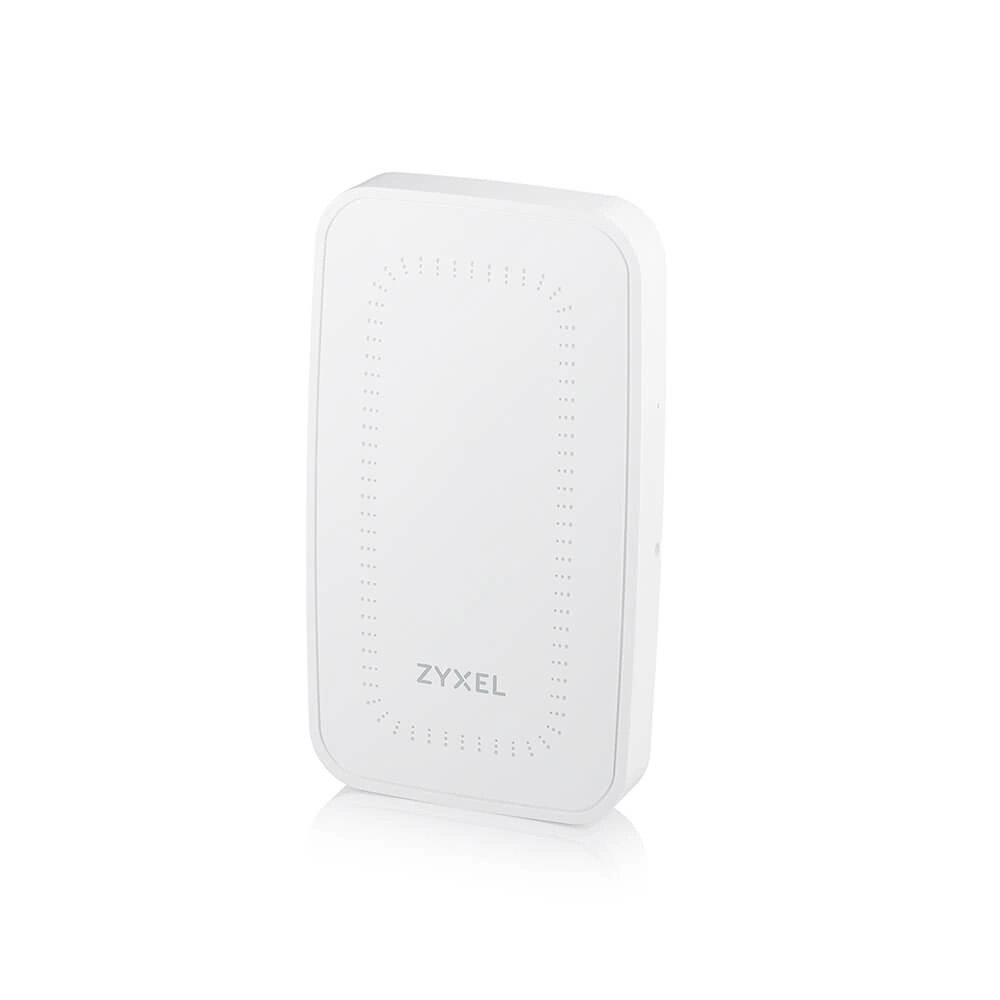

Zyxel WAC500H

Best offer
AED
70649

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate (2.4 GHz): 300Mbit/s
  • Maximum data transfer rate (5 GHz): 866Mbit/s
  • Command-line interface (CLI): Yes
  • Fast roaming: Yes
  • Antenna gain level (max): 4dBi
  • Maximum data transfer rate: 1200Mbit/s
  • Placement: Wall
  • Band steering: Yes
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Antenna type: Internal
  • Wireless isolation: Yes
  • Channel bandwidth: 80MHz
  • MIMO type: Multi User MIMO
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Security algorithms
EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
MIMO
✓
Product colour
White
Antenna gain level (max)
4 dBi
Maximum data transfer rate
1200 Mbit/s
Placement
Wall
Band steering
✓
Fast roaming
✓
Maximum data transfer rate (5 GHz)
866 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
5 GHz
✓
2.4 GHz
✓

Packaging data

Package weight
444 g
Package height
53 mm
Package depth
120 mm
Package width
195 mm

Weight & dimensions

Weight
223 g
Height
29 mm
Depth
97 mm
Width
173 mm

Management features

Web-based management
✓
Command-line interface (CLI)
✓

Power

Output current
1 A
AC input voltage
100 - 240 V
Output voltage
12 V
AC input frequency
50 - 60 Hz
Input current
0.3 A
Power over Ethernet (PoE)
✓

Performance

Transmitting power
26 dBmW

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Computer system

Antenna type
Internal

Packaging content

Mounting kit
✓

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
VLAN support
✓
Wireless isolation
✓
Channel bandwidth
80 MHz
MIMO type
Multi User MIMO
Ethernet LAN data rates
10, 100

Ports & interfaces

DC-in jack
✓
Ethernet LAN (RJ-45) ports
3

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %

Technical details

Certification
BSMI CNS13438 EN 60950-1, BSMI CNS14336-1, EN 301 489-1, EN 301 489-17, EN 301 893, EN 60601-1-2 FCC 15B, EN55022, EN55024, EN61000-3-2/-3, ETSI EN 300 328, FCC 15C, FCC 15E, IEC 60950-1, LP0002

Security

MAC address filtering
✓
Auto Wireless Distribution System (WDS)
✓

Receiver

Receiver sensitivity
-99 dBm

Logistics data

Harmonized System (HS) code
85176990

Product Details

Get not only wireless but wired and PoE connectivity, too The Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services. Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform. Versatile mounting options The versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop. More than WiFi As well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés. Work from home like a Pro! Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices. The “RF First” and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly. Most flexible management The WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes - standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.
