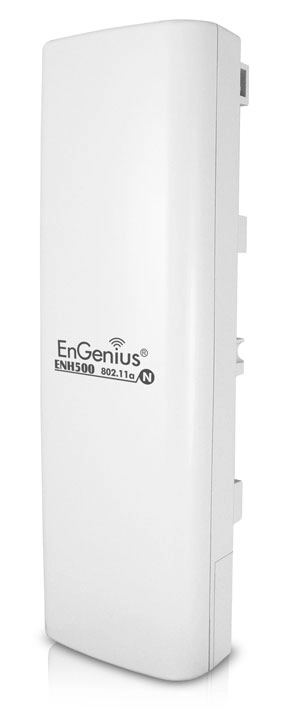

EnGenius ENH500 - 300Mbps

Key Features

  • 2.4 GHz: No
  • 5 GHz: Yes
  • Antenna features: Detachable antenna, Integrated antenna
  • Number of SSID supported: 4
  • Antenna direction type: Directional
  • Power LED: Yes
  • Antenna gain level (max): 5dBi
  • Maximum data transfer rate: 300Mbit/s
  • Channels quantity: 24channels
  • Placement: Wall
  • Frequency band: 5 GHzGHz
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Internal: No
  • Channel bandwidth: 40MHz
  • Ethernet LAN data rates: 10Mbit/s
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
2
Operating modes
Access Point (AP), Client Bridge, Client Router, WDS
Compliance industry standards
IP65
Internal memory
64 MB
Quality of Service (QoS) support
✓
Security algorithms
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, WDS, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-PSK
Virtual LAN features
Tagged VLAN
Product colour
White
Power LED
✓
Antenna gain level (max)
5 dBi
Maximum data transfer rate
300 Mbit/s
Channels quantity
24 channels
Placement
Wall
Frequency band
5 GHz
5 GHz
✓
2.4 GHz
✗

Packaging data

Package dimensions (WxDxH)
71.12 x 309.80 x 233.68 mm
Package weight
707.60 g
Package height
233.70 mm
Package depth
309.90 mm
Package width
71.10 mm

Weight & dimensions

Weight
300 g
Height
28.90 mm
Depth
185.40 mm
Width
99 mm

Management features

Web-based management
✓
Firmware upgradeable
✓

Power

Power requirements
24V
AC input voltage
24 V
Input current
1 A
Power over Ethernet (PoE)
✓

Performance

Transmitting power
15 dBmW

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Other features

Dimensions (WxDxH)
99.06 x 185.42 x 28.90 mm
Supported data transfer rates
12, 18, 24, 300Mbps, 36, 48, 54, 6, 9

Design

International Protection (IP) code
IP65
Reset button
✓
LED indicators
Yes
Internal
✗
Antenna direction type
Directional

Computer system

Processor model
Qualcomm Atheros AR7240
Built-in processor
✓

Packaging content

AC adapter included
✓

Network

Networking standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Management protocols
MIB I/II, SNMP v1/v2c, SNMP v1/v2c/v3
VLAN support
✓
Channel bandwidth
40 MHz
Ethernet LAN data rates
10
Automatic channel selection
✓

Ports & interfaces

Interface
LAN, WLAN
Ethernet LAN (RJ-45) ports
2
WAN connection
Ethernet (RJ-45)

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 90 %
Storage relative humidity (H-H)
5 - 90 %

Technical details

Certification
CE, FCC, IC

Memory

Flash memory
16 MB
Internal memory type
DDR

Security

MAC address filtering
✓
Remote Authentication Dial-In User Service (RADIUS)
✓
Auto Wireless Distribution System (WDS)
✓
Number of SSID supported
4

Camera

Maximum operating distance
2000 m

Antenna

Antenna features
Detachable antenna, Integrated antenna

Radar

Modulation
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK

Product Details

The high-powered, long-range ENH500 is a Wireless N300 Client Bridge operating in the 5 GHz frequency band. As a result, when associated with a 5 GHz Wireless Access Point it avoids the more congested 2.4 GHz frequency band all together. Utilizing its integrated internal 13 dBi directional antenna and its high power output of up to 600mW, the ENH500 delivers higher throughput across an extended range making it an ideal CPE offering for companies wishing to wirelessly link to another building so other client devices in the remote building can join the company network. ENH202 also features a robust security feature set that includes support for 64/128/256-bit WEP encryption, WPA/WPA2 Personal and Enterprise encryption, 802.1x authentication, hidden SSID and MAC address filtering. The multiple operation modes of the ENH202 make it an ideal solution for creating a high-speed, stable and highly secure outdoor wireless link between buildings, connecting surveillance cameras, or connecting outdoor digital sign to an office network.
