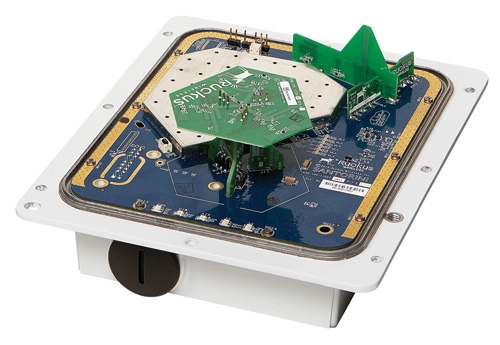

RUCKUS Networks ZoneFlex T300

Key Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate (5 GHz): 867Mbit/s
Fit AP mode features: Mesh networking
Antenna features: Detachable antenna, Integrated antenna
Number of SSID supported: 43
Service Set Identifier (SSID) features: SSID broadcast on/off
Antenna gain level (max): 3dBi
Maximum data transfer rate: 867Mbit/s
Channels quantity: 3channels
Placement: Pole, Wall
Number of connectors: 2
Syslog: Yes
Internal: No
Channel bandwidth: 80MHz

Specifications

Features

Quality of Service (QoS) support

✓

Number of WLAN connections (max)

512

Security algorithms

802.1x RADIUS, WPA-PSK, WPA-TKIP, WPA2-AES

MIMO

✓

Product colour

White

Antenna gain level (max)

3 dBi

Maximum data transfer rate

867 Mbit/s

Channels quantity

3 channels

Placement

Pole, Wall

Number of connectors

Fit AP mode features

Mesh networking

Maximum data transfer rate (5 GHz)

867 Mbit/s

5 GHz

✓

2.4 GHz

✓

Weight & dimensions

Weight

900 g

Height

110 mm

Depth

239 mm

Width

195 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

Syslog

✓

Power

Power consumption (max)

11 W

Power over Ethernet (PoE)

✓

Other features

Cable lock slot type

Kensington

Bandwidth

5 GHz

Design

International Protection (IP) code

IP67

LED indicators

Yes

Cable lock slot

✓

Internal

✗

Network

Networking standards

IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h

VLAN support

✓

Channel bandwidth

80 MHz

MIMO type

Single User MIMO

Automatic channel selection

✓

Ports & interfaces

Ethernet LAN (RJ-45) ports

WAN connection

Wi-Fi

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Switch type

Managed

Security

Wireless Intrusion Detection System (WIDS)

✓

Service Set Identifier (SSID) features

SSID broadcast on/off

Number of SSID supported

Antenna

Antenna features

Detachable antenna, Integrated antenna

Radar

Modulation

DPSK

Product Details

Modern users expect reliable wireless connectivity—anywhere, anytime. But in crowded outdoor venues with thousands of users and constant RF noise and interference, they often get poor coverage, dropped connections, and miniscule data rates. The Ruckus T300 Series of 802.11ac access points provides consistent, reliable Wi-Fi in crowded outdoor venues, at an affordable price. Available with internal omni-directional antennas or optional external 5GHz antenna support, the T300 Series uses patented Ruckus technologies to extend range, improve throughput, and deliver industry-leading 802.11ac performance to every connected client. At the same time, it’s designed for fast, simple installation with an ultra-lightweight, IP 67-rated enclosure that can stand up to the rigors of outdoor deployments.
