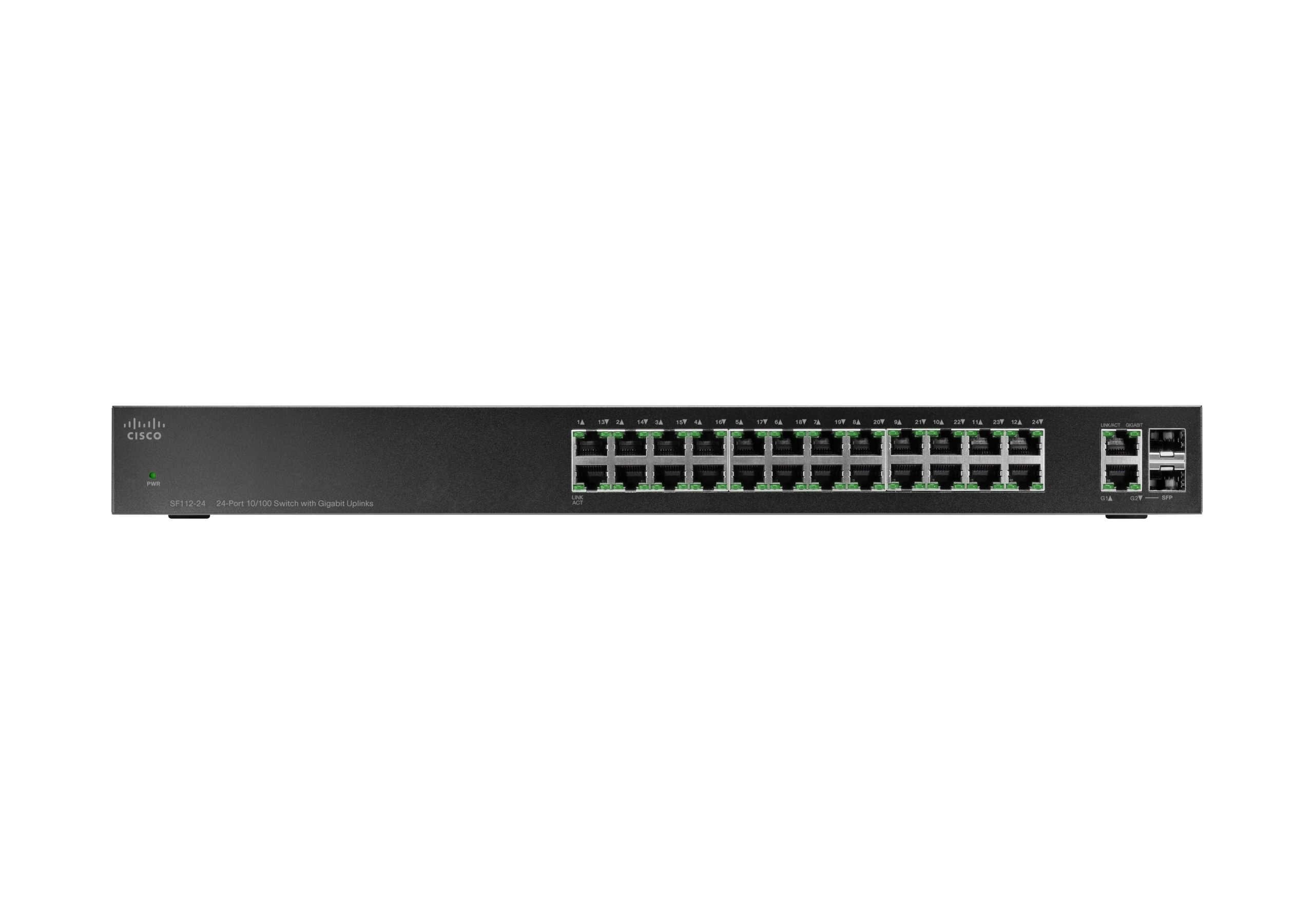

Cisco SG112-24-EU 24-ports

Name: Cisco SG112-24-EU 24-ports
Brand: Cisco
SKU: 347837
Availability: InStock

Best offer

AED

2 102¹⁶

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 35.7Mpps
Number of queues: 4
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
Jumbo frames: 9216
Switching capacity: 48Gbit/s
Full duplex: Yes
Jumbo frames support: Yes
Forwarding rate: 6.5Mpps
Form factor: Desktop
Auto MDI/MDI-X: Yes
Head-of-line (HOL) blocking: Yes

Specifications

Features

Country of origin

China

Internal memory

128 MB

Quality of Service (QoS) support

✓

Rack mounting

✓

Product colour

Black

Switching capacity

48 Gbit/s

Full duplex

✓

Jumbo frames support

✓

Forwarding rate

6.50 Mpps

Switch layer

Packaging data

Package weight

3730 g

Package height

105.90 mm

Package depth

367 mm

Package width

293.10 mm

Weight & dimensions

Weight

1930 g

Height

44 mm

Depth

440 mm

Width

202.50 mm

Power

Power plug type

Type C

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power over Ethernet (PoE)

✗

Performance

Diagnostics

Cable Diagnostics

Design

LED indicators

Yes

Form factor

Desktop

Packaging content

Quick Start guide

Quick start guide

✓

Power supply included

✓

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Auto MDI/MDI-X

✓

Head-of-line (HOL) blocking

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

10G support

✗

Flow control support

✓

Jumbo frames

9216

Ports & interfaces

SFP module slots quantity

Fiber ports quantity

Combo SFP ports quantity

Cable types supported

Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7

Fast Ethernet (copper) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Technical details

Certification

CE, CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC B, FCC Class B, FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Unmanaged

Memory

Flash memory

128 MB

Data transmission

Number of queues

Throughput

35.70 Mpps

Security

Loop protection

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco SG112-24 Switch delivers basic network connectivity and reliability for small businesses that are easy on the budget and without all the complexity. This switch provides all of the features, expandability, and investment protection you expect from Cisco, with no installation software and nothing to configure. Just plug it in, connect your computers and other business equipment, and get to work.
