Cisco C9300L-48P-4X 48-ports

Best offer
AED
21 12784

Key Features

  • Switch layer: L2, L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • IPv4 multicast entries: 1024
  • IPv6 multicast entries: 1024
  • DHCP features: DHCP snooping
  • Number of static routes: 16
  • Static route: Yes
  • Jumbo frames: 10240
  • IGMP entries: 1024
  • SFP+ module slots quantity: 4
  • Switching capacity: 176Gbit/s
  • Full duplex: Yes
  • MAC address table: 32000entries
  • Access Control List (ACL): Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
1452667 h
Market segment
Business
Internal memory
512 MB
Processor frequency
800 MHz
MIB support
Y
Quality of Service (QoS) support
✓
Rack mounting
✓
Product colour
Grey
SFP+ module slots quantity
4
Switching capacity
176 Gbit/s
Full duplex
✓
MAC address table
32000 entries
Access Control List (ACL)
✓
Traffic classification
✓
Authentication type
RADIUS
Configuring Location Settings (CLI)
✓
Jumbo frames support
✓
Forwarding rate
77.38 Mpps
Multicast support
✓
Static route
✓
Switch layer
L2, L2/L3

Packaging data

Package weight
7180 g
Package height
147.60 mm
Package depth
549.40 mm
Package width
444.50 mm

Weight & dimensions

Weight
5430 g
Height
43.90 mm
Depth
350 mm
Width
444.50 mm

Management features

Web-based management
✓
ARP inspection
✓

Power

Power plug type
Type C
AC input voltage
110 - 220 V
Power consumption (typical)
35.56 W
AC input frequency
50 - 60 Hz
Input current
0.37 - 0.64 A
Power consumption (max)
40.56 W
Power over Ethernet (PoE)
✓
Power over Ethernet (PoE) power per port
15 W
Total Power over Ethernet (PoE) budget
370 W

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes

Computer system

Processor model
ARM7
Built-in processor
✓

Packaging content

Packaging content
1 printed document

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3ap, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
SNMP
VLAN support
✓
Number of VLANs
4000
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Ethernet LAN data rates
10, 100
Auto-negotiation
✓
10G support
✓
Link aggregation
✓
Jumbo frames
10240

Ports & interfaces

Console port
RJ-45/Mini-USB
USB 2.0 ports quantity
1
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48

Operational conditions

Operating altitude (imperial)
0 - 3000 m
Operating relative humidity (H-H)
5 - 90 %
Non-operating altitude
0 - 4500 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
5 - 95 %

Technical details

Switch type
Managed

Memory

Flash memory
256 MB

Data transmission

Number of static routes
16

Security

SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
BPDU filtering/protection
✓
Authentication
Web-based authentication
IGMP entries
1024
DHCP features
DHCP snooping

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DRAM

Multicast features

IPv6 multicast entries
1024
IPv4 multicast entries
1024

Product Details

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Files

User manual

mmo_71336648_1704204606_4199_17443.pdf

PDF• 9.8 MB

Product Brochure

mmo_76924520_1579524175_4764_31145.pdf

PDF• 837.3 KB

Installation Guide

mmo_76924520_1605797740_8253_12237.pdf

PDF• 8.4 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Product.Navigation.offersCount

Amazon logo

Product.OfferList.offerCount

From
AED
21 127

Cisco Catalyst 9300L-48P-4X-E Switch

Black
AED
21 12784

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
-46%
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
14900
AED
7900
ProductCard.offer
-28%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
11300
AED
8040
ProductCard.offer
-15%
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8150
AED
6900
ProductCard.offer
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
6350
ProductCard.offer
Linksys LGS116 16-ports

Linksys LGS116 16-ports

AED
20872
ProductCard.offer
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 34190
ProductCard.offer
Linksys LGS124-UK 24-ports

Linksys LGS124-UK 24-ports

AED
34900
ProductCard.offer
-34%
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
34999
AED
23000
ProductCard.offer
D-Link DES-1210-28P 28-Ports

D-Link DES-1210-28P 28-Ports

AED
16944
ProductCard.offer
-23%
Linksys LGS116P 16-Ports

Linksys LGS116P 16-Ports

AED
51900
AED
39900
ProductCard.offer

More from Cisco

See all
Cisco 1552E

Cisco 1552E

AED
9 70715
ProductCard.offer
Cisco WS-C2960X-48TS-LL - 48-ports

Cisco WS-C2960X-48TS-LL - 48-ports

AED
3 49916
ProductCard.offer
Cisco WS-C2948G - 48-Ports

Cisco WS-C2948G - 48-Ports

AED
17 23372
ProductCard.offer
Cisco ISR4451-X-AX - Bundle With APP And Sec License Black

Cisco ISR4451-X-AX - Bundle With APP And Sec License Black

AED
25 70000
ProductCard.offer
Cisco MR52-HW

Cisco MR52-HW

AED
2 38219
ProductCard.offer
Cisco 877 - ADSL over POTS Dual-Band 802.11b/g

Cisco 877 - ADSL over POTS Dual-Band 802.11b/g

AED
2 14503
ProductCard.offer

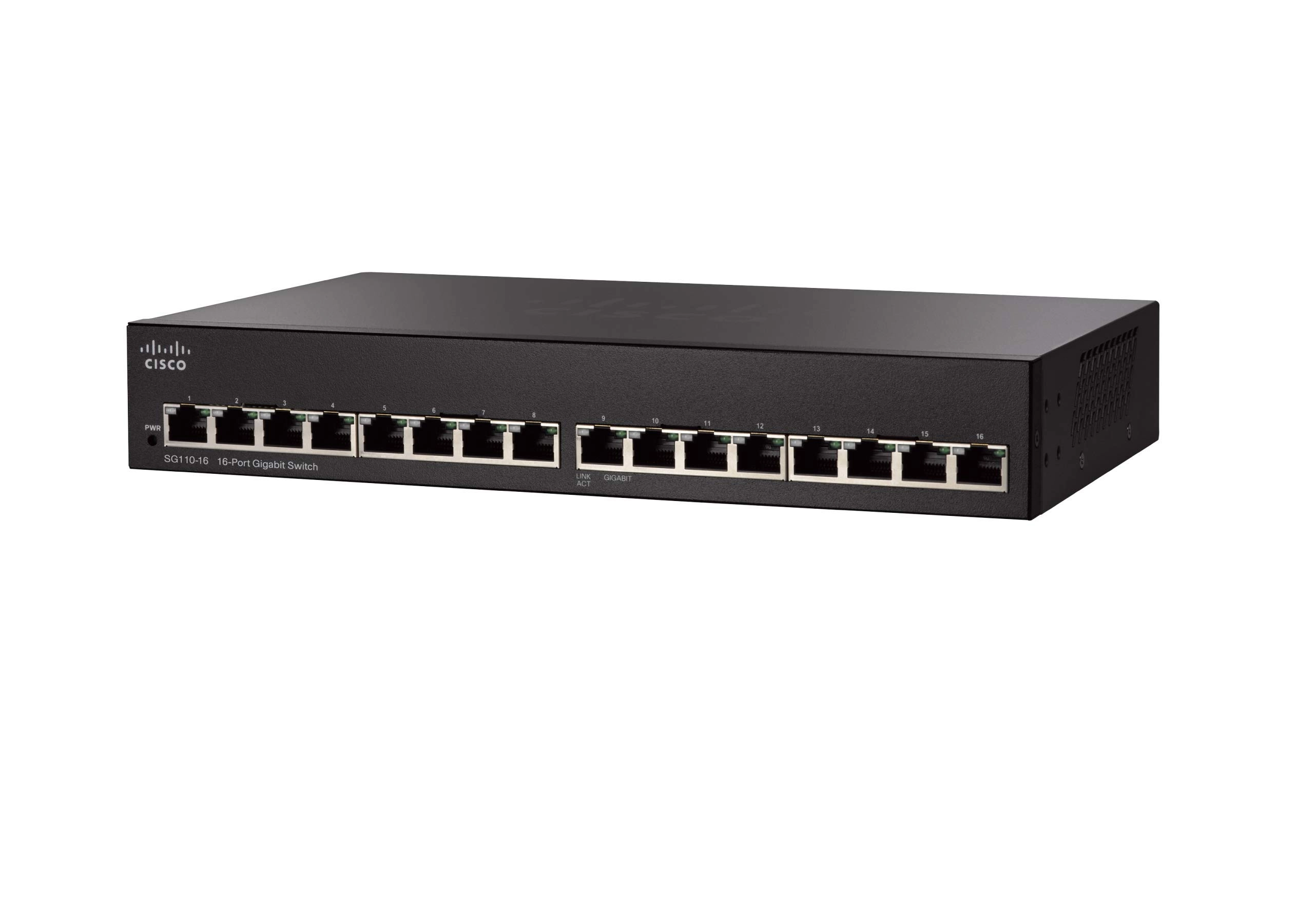

Cisco SM-ES2-16-P 16-ports
