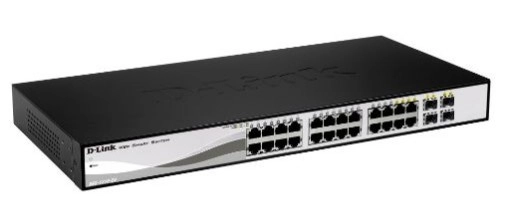

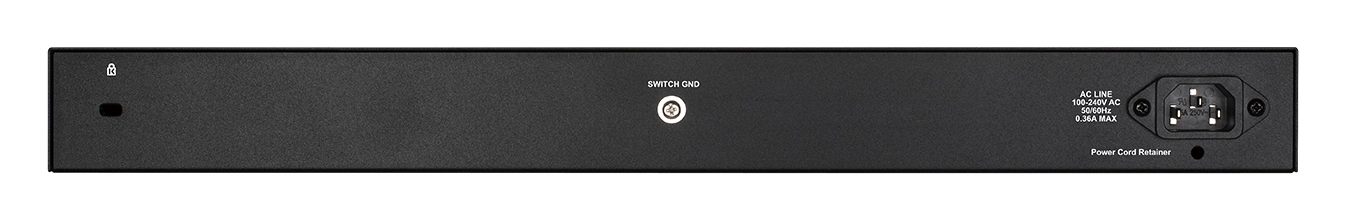

D-Link DGS-1210-26 26-ports

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 38.7Mpps
DHCP features: DHCP client, DHCP server
Port mirroring: Yes
IP routing: Yes
Switching capacity: 52Gbit/s
MAC address table: 8000entries
Access Control List (ACL): Yes
Traffic classification: Yes
Multicast support: Yes
IGMP snooping: Yes
Form factor: 1U
Auto MDI/MDI-X: Yes

Specifications

Features

Mean time between failures (MTBF)

1082534 h

Safety

CE LVD

Electromagnetic compatibility

BSMI, C-Tick, CCC, CE A, FCC A, VCCI

Internal memory

128 MB

MIB support

RFC2021

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, SNMP, SSH

Rack mounting

✓

Stackable

✓

Virtual LAN features

Port-based VLAN, Tagged VLAN

Product colour

Grey

Switching capacity

52 Gbit/s

MAC address table

8000 entries

Access Control List (ACL)

✓

Traffic classification

✓

Multicast support

✓

Switch layer

Packaging data

Package weight

3130 g

Package height

72 mm

Package depth

493 mm

Package width

249 mm

Weight & dimensions

Weight

2060 g

Height

44 mm

Depth

140 mm

Width

440 mm

Management features

Web-based management

✓

System event log

✓

Power

AC input voltage

100 - 240 V

Power consumption (typical)

15.11 W

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✗

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Activity, Fan fail, Link, Power, Speed

Form factor

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

VLAN support

✓

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Rate limiting

✓

Auto-negotiation

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

10G support

✓

Link aggregation

✓

Flow control support

✓

Port mirroring

✓

Ports & interfaces

SFP module slots quantity

Console port

RJ-45

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Heat dissipation

51.57 BTU/h

Technical details

Certification

IEC61000-4-5, RoHS

Pallet gross weight (sea)

621300 g

Pallet height (sea)

1887 mm

Pallet gross weight (air)

422400 g

Pallet height (air)

1303 mm

Switch type

Managed

Memory

Flash memory

32 MB

Data transmission

Throughput

38.70 Mpps

Security

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

DHCP features

DHCP client, DHCP server

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Pallet gross width

1200 mm

Shipping (inner) case gross weight

16500 g

Shipping (inner) case net weight

15700 g

Pallet gross length

1100 mm

Shipping (inner) case height

282 mm

Shipping (inner) case length

510 mm

Shipping (inner) case width

381 mm

Solid state drive

Memory type

DDR3-SDRAM

Product Details

Files

Image of packaging

mmo_37662726_1733476697_014_2366498.pdf

PDF• 202.7 KB

EU Declaration of Conformity

mmo_37662726_1733476808_3567_3540589.pdf

PDF• 202.3 KB

Product Brochure

mmo_37662726_1733476833_3027_2367114.pdf

PDF• 802.7 KB

User manual

mmo_37662726_1733476851_4032_2367114.pdf

PDF• 21.7 MB
