Trendnet TI-PG102 10-ports

Best offer
AED
1 25355

Key Features

  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Store-and-forward: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Jumbo frames: 10000
  • Wall mountable: Yes
  • Switching capacity: 20Gbit/s
  • Full duplex: Yes
  • DIN rail mounting: Yes
  • MAC address table: 11000entries
  • Jumbo frames support: Yes
  • Forwarding rate: 14.8Mpps
  • Redundant power supply (RPS) support: Yes
  • Buffer size: 2048KB
  • Wall mounting kit: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
459123 h
Rack mounting
✗
Product colour
Black
Packet buffer memory
0.25 MB
Wall mountable
✓
Switching capacity
20 Gbit/s
Full duplex
✓
DIN rail mounting
✓
MAC address table
11000 entries
Jumbo frames support
✓
Forwarding rate
14.80 Mpps

Weight & dimensions

Weight
445 g
Height
23 mm
Depth
120 mm
Width
150 mm

Power

Power connector
DC-in jack
AC input voltage
100 - 240 V
DC input voltage
48 - 56 V
AC input frequency
50 - 60 Hz
Input current
2 A
Power consumption (max)
160 W
Power over Ethernet (PoE)
✓
Power over Ethernet (PoE) power per port
30 W
Input voltage
48/56 V
Total Power over Ethernet (PoE) budget
240 W
Redundant power supply (RPS) support
✓

Other features

Buffer size
2048 KB

Design

International Protection (IP) code
IP30
Housing material
Metal
LED indicators
Yes

Packaging content

Quick start guide
✓

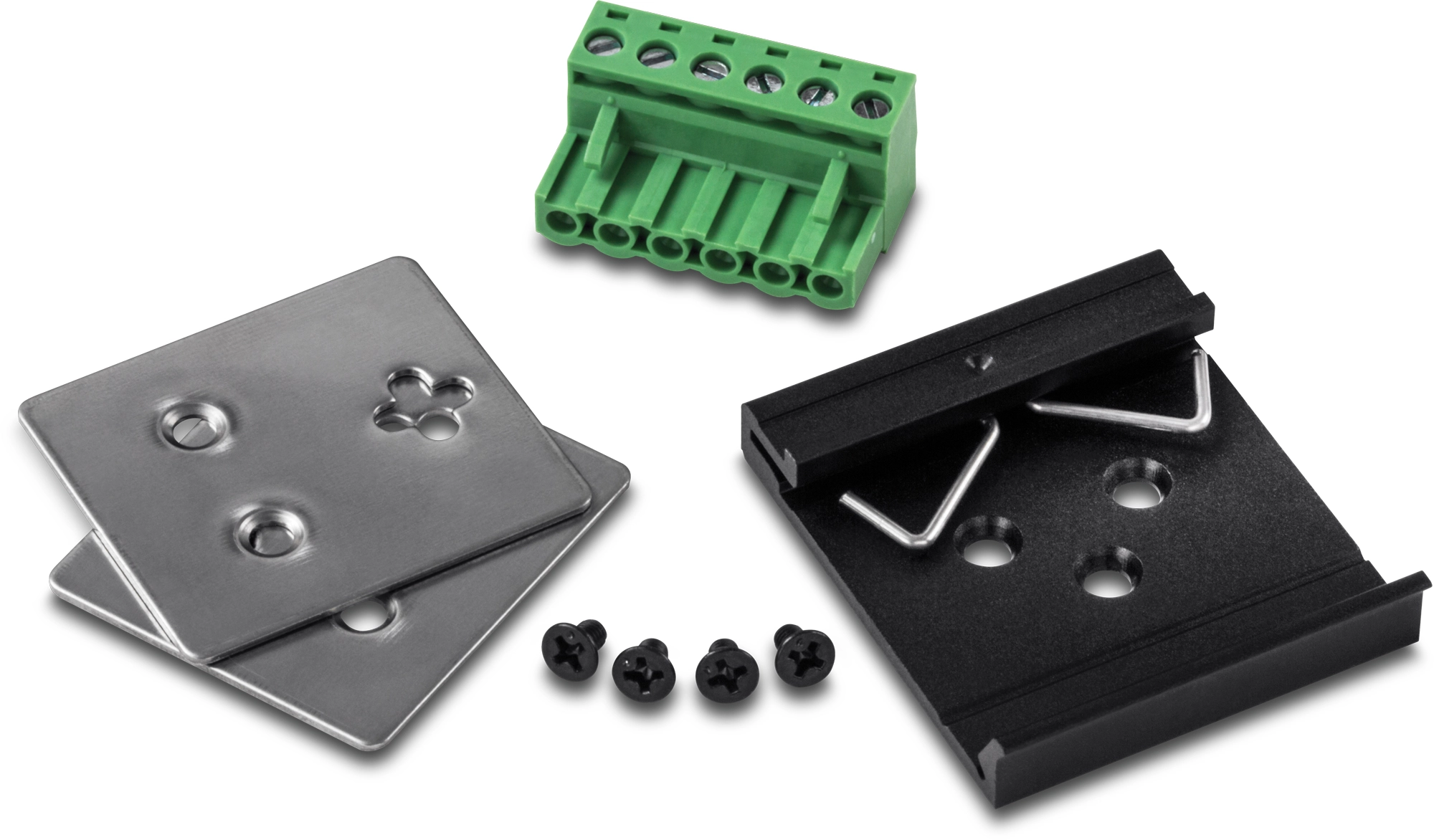

Wall mounting kit
✓
Terminal block included
✓

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
MAC address auto-learning supported
✓
MAC address auto-aging supported
✓
Auto-negotiation
✓
10G support
✗
Jumbo frames
10000
Store-and-forward
✓

Ports & interfaces

SFP module slots quantity
2
Power over Ethernet plus (PoE+) ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
10

Operational conditions

Operating relative humidity (H-H)
0 - 95 %

Technical details

Certification
CE FCC, CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Switch type
Unmanaged

Logistics data

Harmonized System (HS) code
85176990

Product Details

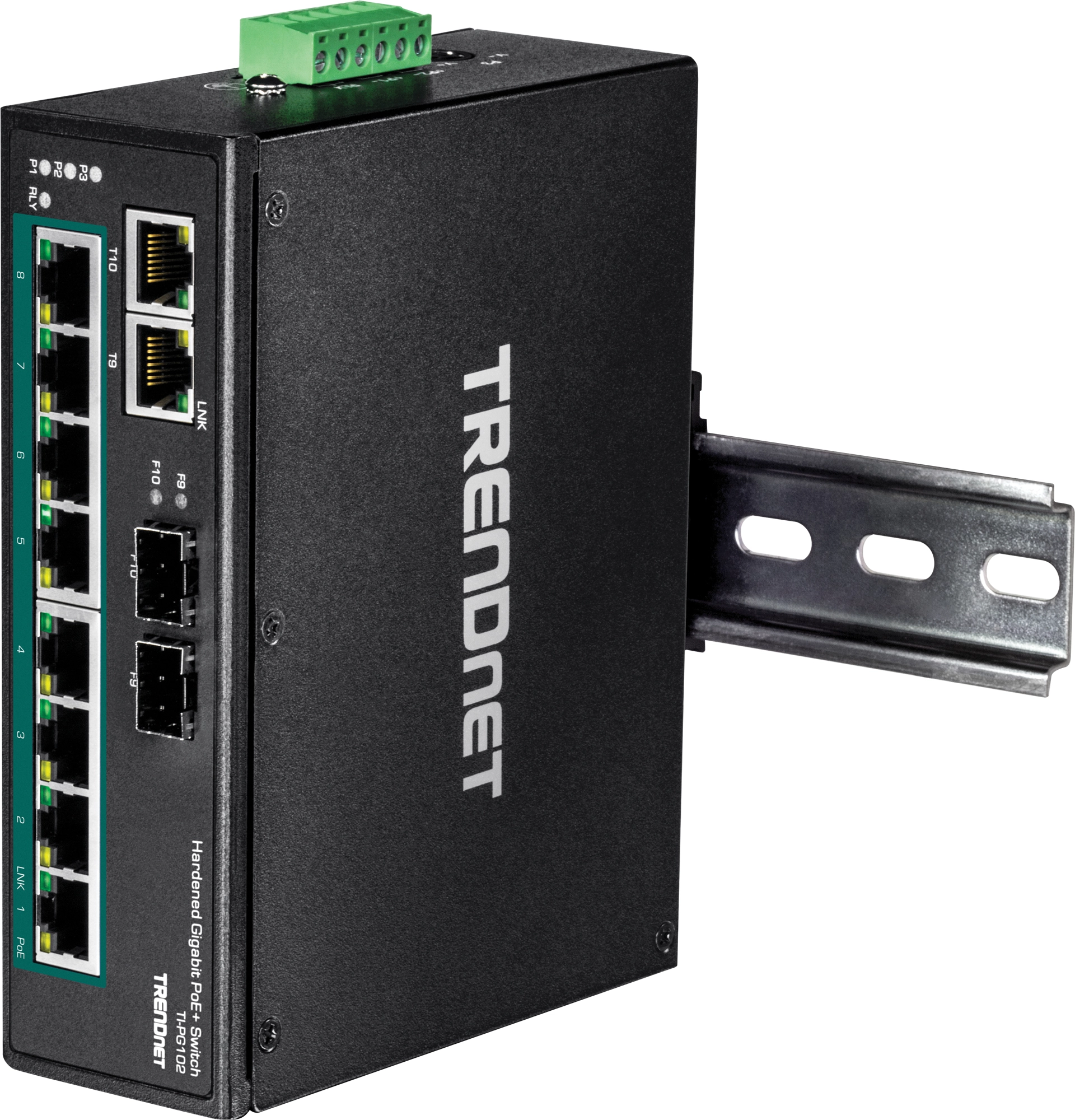

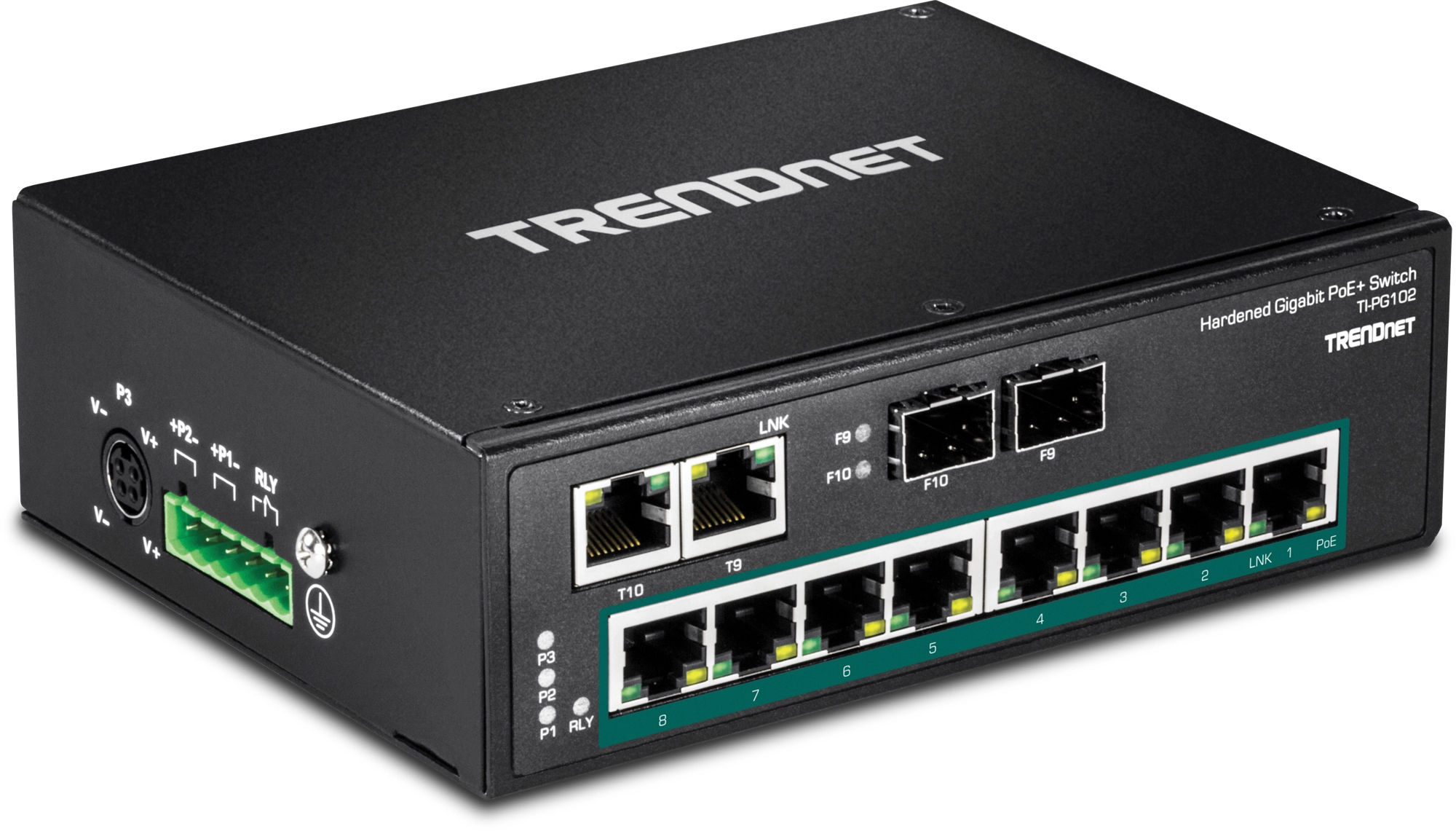

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments. PoE Power A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power. Fault Tolerance Features dual redundant power inputs with output alarm relay. Industrial Hardened Design Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).

Files

Product Brochure

mmo_35367904_1489416215_674_4502.pdf

PDF• 1.8 MB

Quick Installation Guide

mmo_35367904_1608301902_4265_3098.pdf

PDF• 590.4 KB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Product.Navigation.offersCount

Amazon logo

Product.OfferList.offerCount

From
AED
1 253

TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 8 x Gigabit PoE+ Ports, DIN-Rail Mount, 2 x SFP Slots, 240W PoE Power Budget, Network Switch, IP30, QoS, Lifetime Protection, Black, TI-PG102

Black
AED
1 25355
Noon logo

Product.OfferList.offerCount

From
AED
2 137

TRENDnet 10Port Industrial Gigabit PoE DINRail Switch 8 x Gigabit PoE Ports DINRail Mount 2 x SFP Slots 240W PoE Power Budget Network Switch IP30 QoS Lifetime Protection Black TIPG102

AED
2 13715

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
-46%
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
14900
AED
7900
ProductCard.offer
-28%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
11300
AED
8040
ProductCard.offer
-15%
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8150
AED
6900
ProductCard.offer
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
6350
ProductCard.offer
Linksys LGS116 16-ports

Linksys LGS116 16-ports

AED
20872
ProductCard.offer
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 34190
ProductCard.offer
D-Link DGS-1024D 24-ports

D-Link DGS-1024D 24-ports

AED
17950
ProductCard.offer
D-Link DLDGS1016D 16-ports

D-Link DLDGS1016D 16-ports

AED
15140
ProductCard.offer
Linksys LGS124-UK 24-ports

Linksys LGS124-UK 24-ports

AED
34900
ProductCard.offer
-34%
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
34999
AED
23000
ProductCard.offer

More from Trendnet

See all

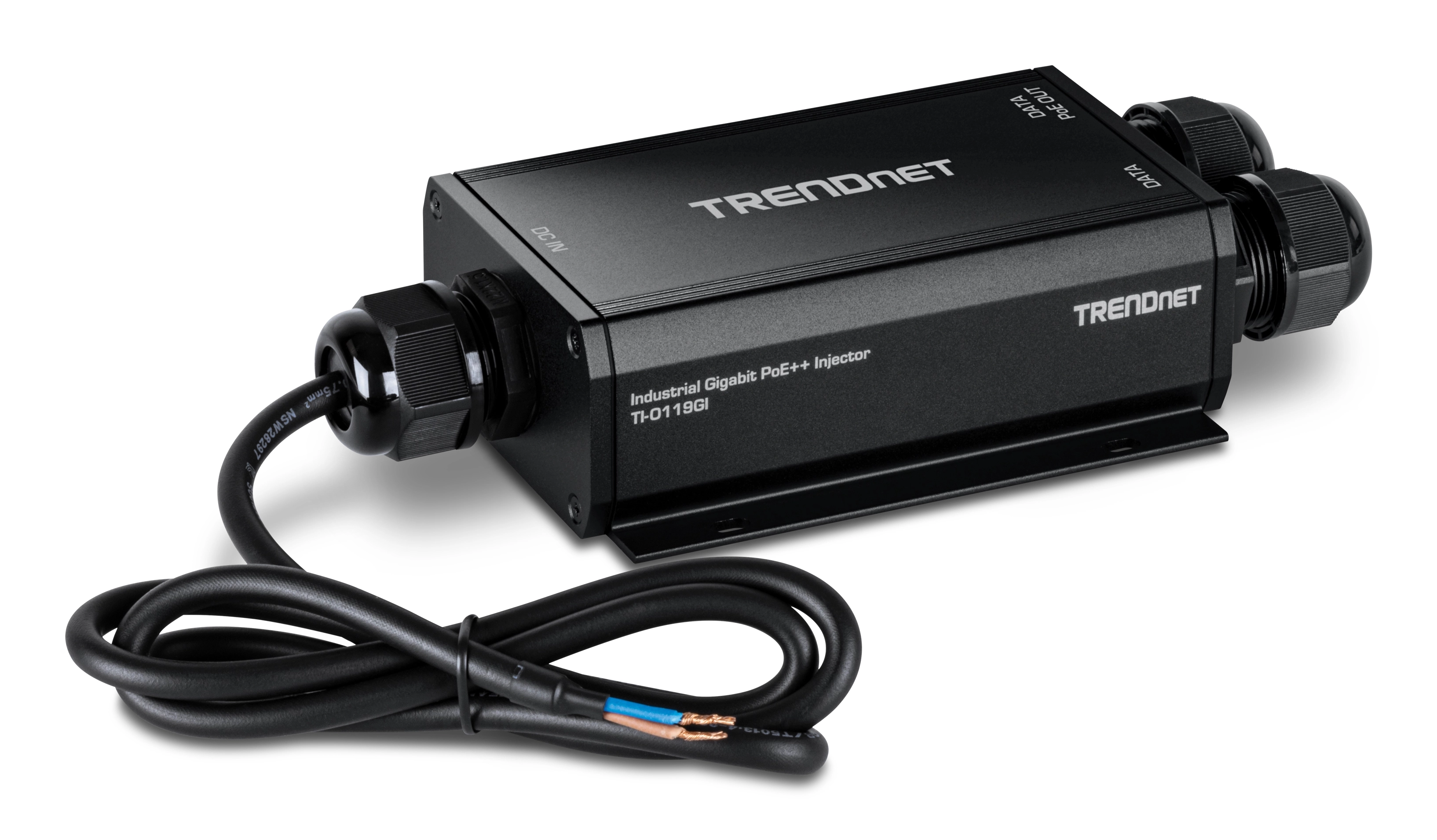

Trendnet TI-O119GI - 24–57V 96W 1x Gigabit PoE++ Port
