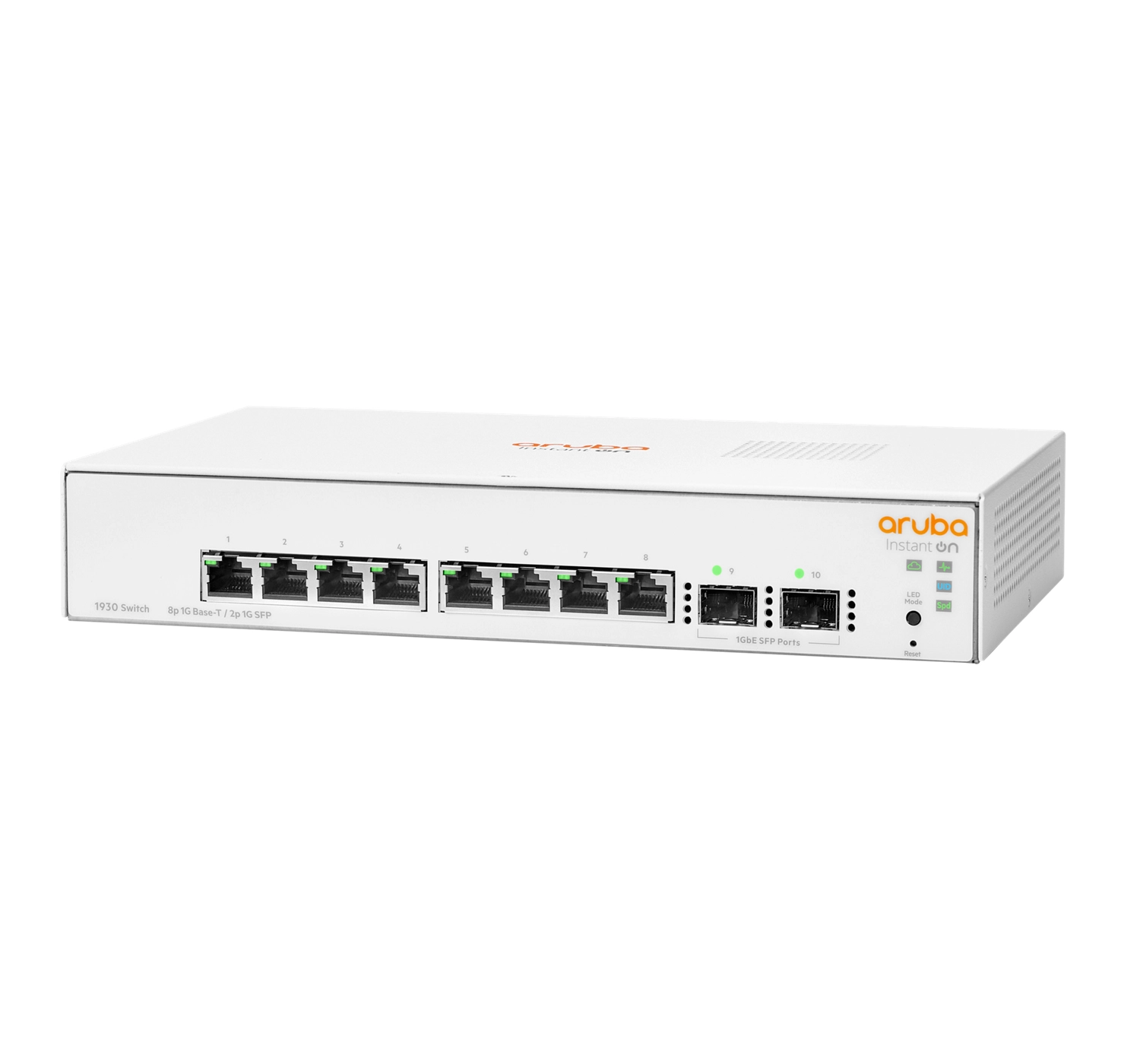

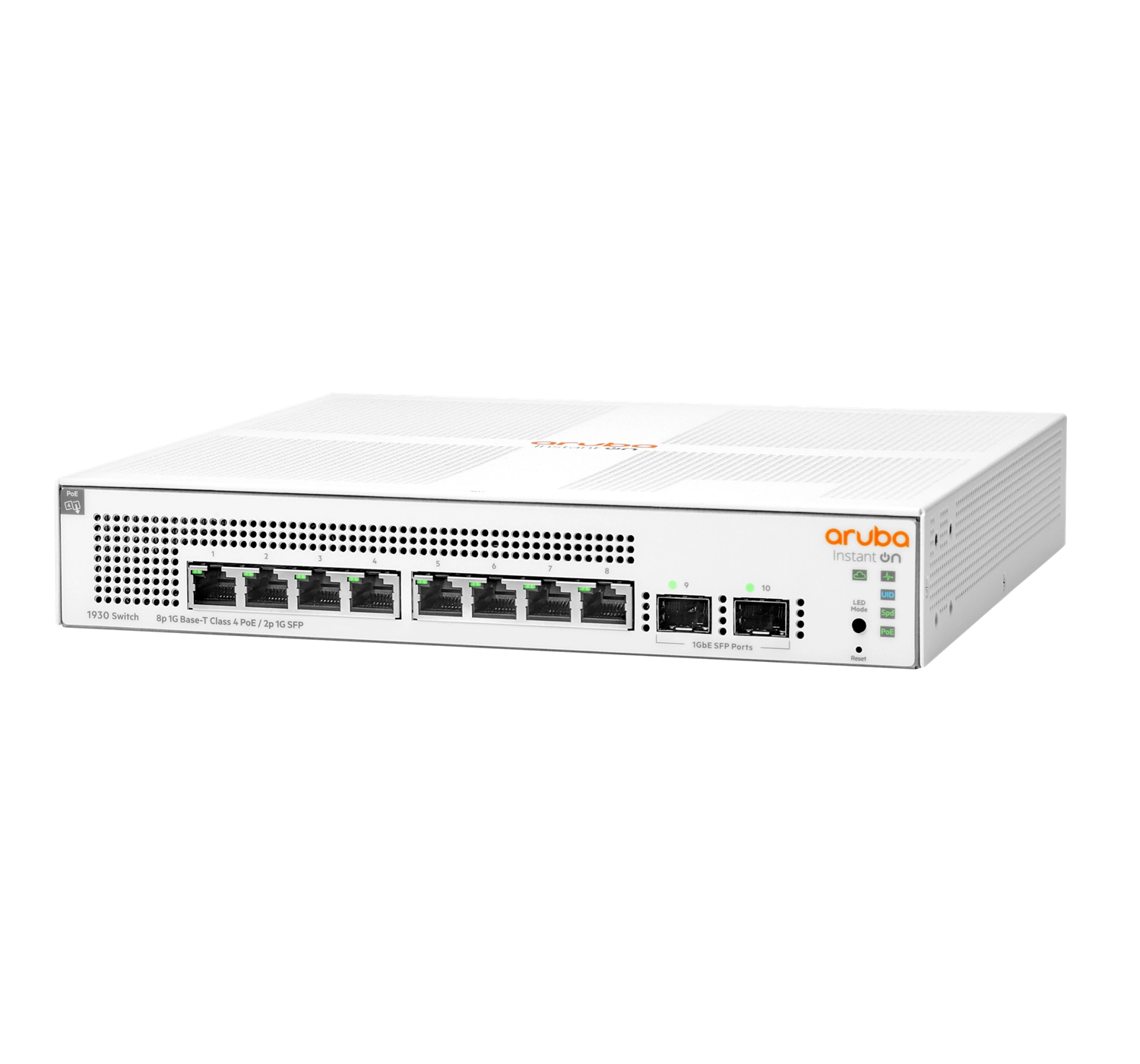

Instant On 1930 - 10-ports

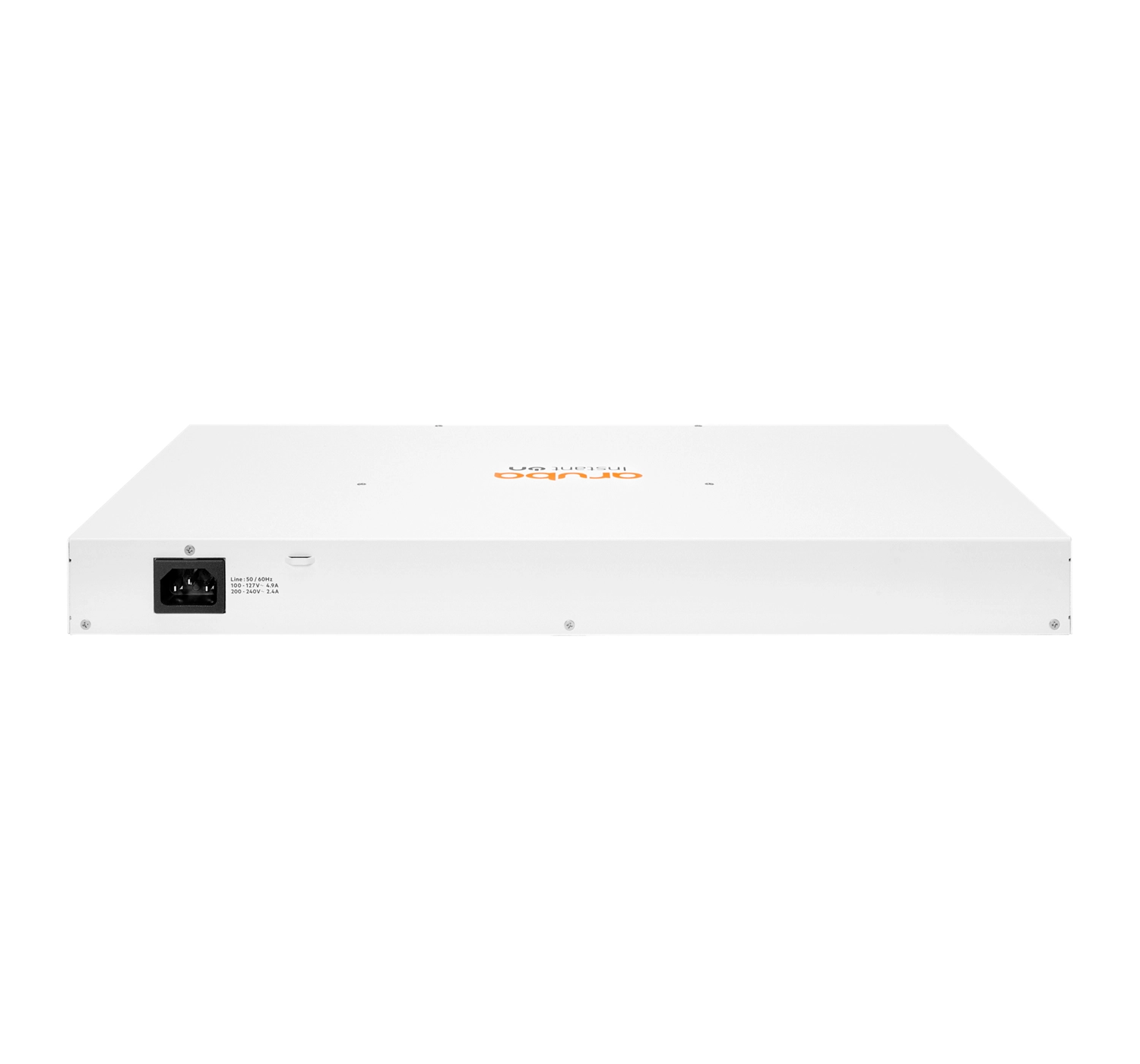

Instant On 1930 - 10-ports

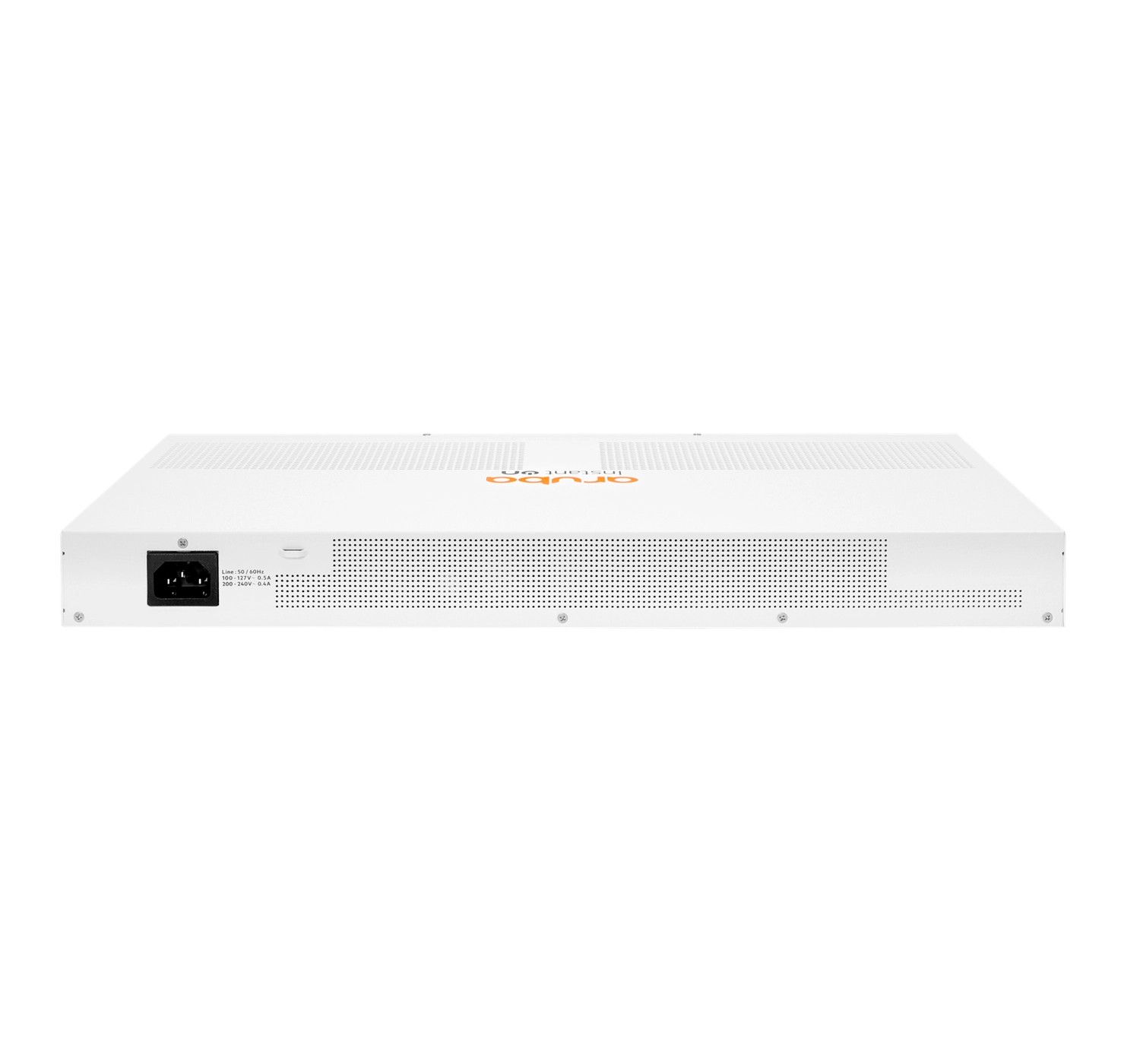

Instant On 1930 - 10-ports
Instant On 1930 - 10-ports

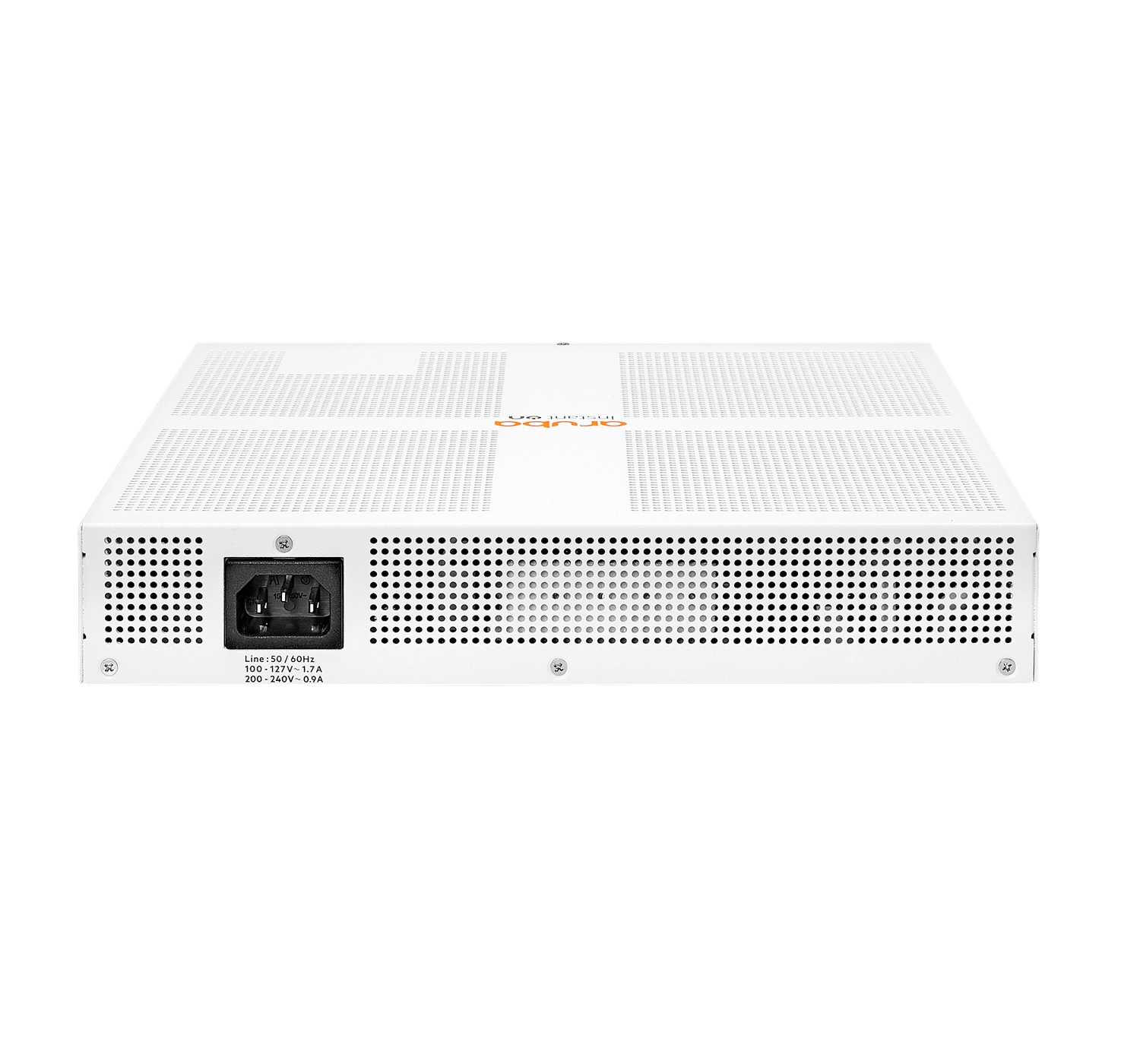

Instant On 1930 - 10-ports

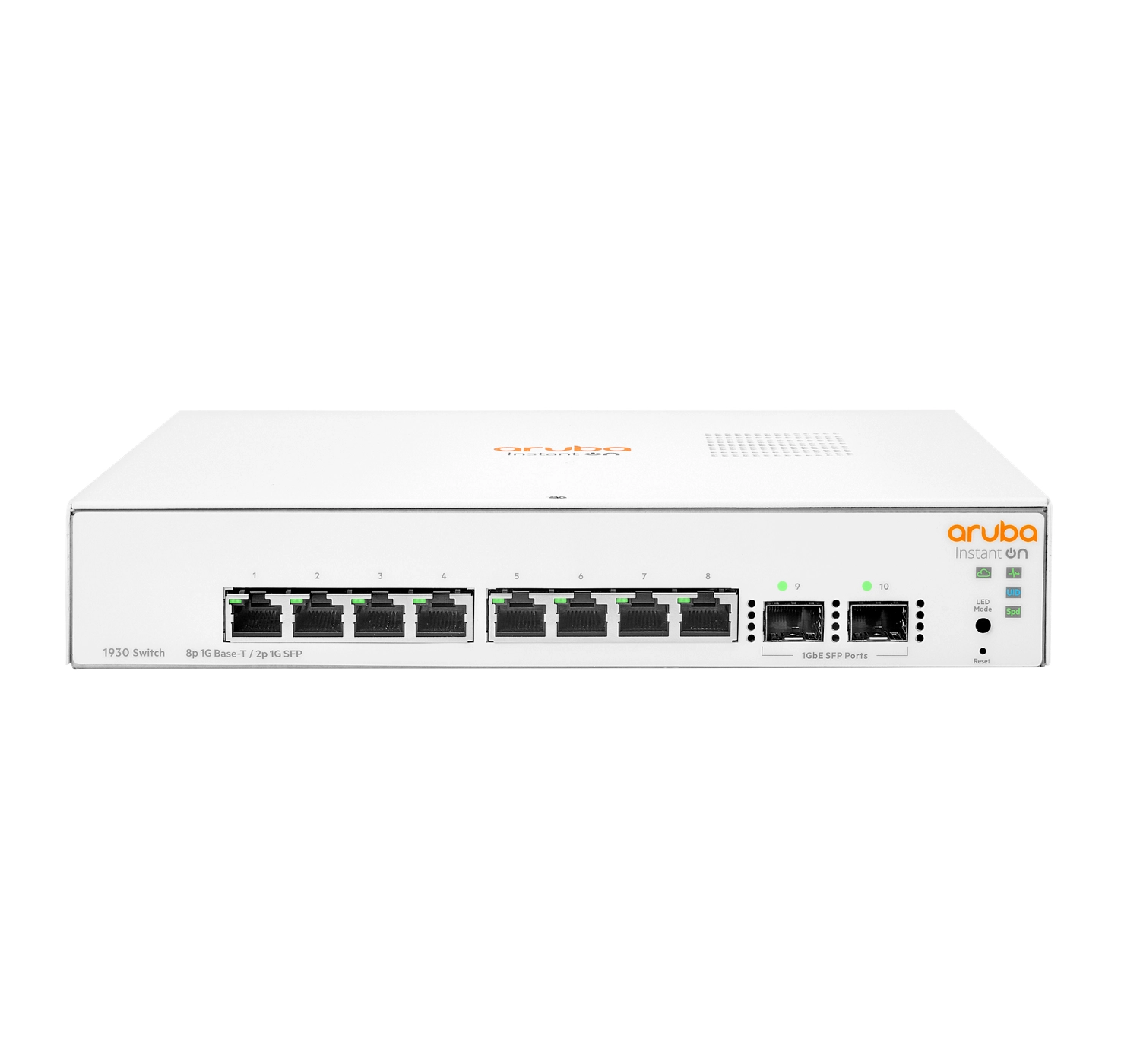

Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports
Instant On 1930 - 10-ports

HPE Instant On 1930 - 10-ports

Best offer
AED
64000

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 95.23Mpps
  • Latency (10-100 Mbps): 4.7µs
  • Latency (1 Gbps): 2.4µs
  • Latency (10 Gbps): 1.3µs
  • Port mirroring: Yes
  • SFP+ module slots quantity: 4
  • Switching capacity: 128Gbit/s
  • Full duplex: Yes
  • MAC address table: 16000entries
  • Auto-sensing: Yes
  • Jumbo frames support: Yes
  • Power source: AC
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Internal memory
512 MB
Processor frequency
800 MHz
Quality of Service (QoS) support
✓
Rack mounting
✓
Stackable
✗
Product colour
White
Packet buffer memory
1.50 MB
SFP+ module slots quantity
4
Switching capacity
128 Gbit/s
Full duplex
✓
MAC address table
16000 entries
Auto-sensing
✓
Jumbo frames support
✓
Switch layer
L2

Weight & dimensions

Weight
2410 g
Height
43.90 mm
Depth
221.50 mm
Width
442.50 mm

Management features

Web-based management
✓

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
22.60 W
Power over Ethernet (PoE)
✗
Total Power over Ethernet (PoE) budget
370 W
Power source
AC

Wireless LAN features

IGMP snooping
✓

Design

Form factor
1U

Computer system

Processor model
ARM Cortex-A9

Packaging content

Power supply included
✓

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
256
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Rate limiting
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
✓
Link aggregation
✓
Flow control support
✓
Port mirroring
✓

Ports & interfaces

SFP module slots quantity
2
Combo SFP ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95 %
Storage relative humidity (H-H)
15 - 95 %

Technical details

Switch type
Managed

Memory

Flash memory
256 MB

Data transmission

Latency (10 Gbps)
1.30 µs
Latency (1 Gbps)
2.40 µs
Latency (10-100 Mbps)
4.70 µs
Throughput
95.23 Mpps

Security

SSH/SSL support
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
SDRAM

Product Details

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity. Features Simplify Network Deployment and Management for Small Organizations - The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment. - The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+). - The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity. - The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. Keep Your Business Protected with Integrated Security Features - The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation. - Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access. - Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks. - Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection. Deliver High Perfomance - The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control. - 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling. - The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances. - The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Files

QuickSpecs

mmo_79284623_1591860656_9645_4600.pdf

PDF• 481.4 KB

Aruba Instant On 1930 Switch Series

mmo_79284623_1591860678_9163_10061.pdf

PDF• 858.9 KB
