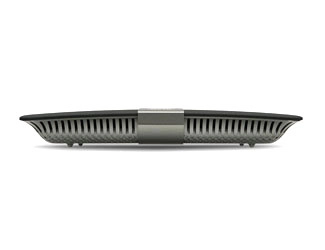

Linksys E4200 V2 - 802.11a/b/g/n

Key Features

WLAN data transfer rate (max): 450Mbit/s
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Ethernet LAN interface type: Gigabit Ethernet
Antenna gain level (max): 5.3dBi
WLAN data transfer rates supported: 11, 12, 150, 18, 24, 300, 36, 48, 5.5, 54, 6, 9Mbit/s
Networking features: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi standards: 802.11a, 802.11b, 802.11g
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100Mbit/s
USB ports quantity: 1
Ethernet WAN: Yes
Modulation: 16-QAM, 64-QAM, BPSK, CCK, OFDM, QPSK
Input voltage: 12 VV
Bandwidth: 2.4GHz

Specifications

Features

Compatible operating systems

Snow Leopard 10.6, Windows 7 Mac OS X Leopard 10.5, Windows Vista SP1, Windows XP SP3

Antennas quantity

Universal Plug and Play (UPnP)

✓

Quality of Service (QoS) support

✓

Security algorithms

WEP, WPA, WPA2

Operating temperature (T-T)

32 - 104 °F

Antenna gain level (max)

5.30 dBi

Weight & dimensions

Weight

355 g

Power

Input current

2 A

Input voltage

12 V

Performance

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wireless LAN features

WLAN data transfer rate (max)

450 Mbit/s

Other features

Dimensions (WxDxH)

225 x 160 x 25 mm

Bandwidth

2.40 GHz

WLAN data transfer rates supported

11, 12, 150, 18, 24, 300, 36, 48, 5.5, 54, 6, 9

Networking features

Gigabit Ethernet

Design

Reset button

✓

LED indicators

Yes

Packaging content

Quick start guide

✓

Cables included

LAN (RJ-45)

AC adapter included

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Supported network protocols

IPv6

Cabling technology

10/100/1000Base-T(X)

Wi-Fi standards

802.11a, 802.11b, 802.11g

Ethernet LAN

✓

Ethernet LAN data rates

10, 100

Ethernet LAN interface type

Gigabit Ethernet

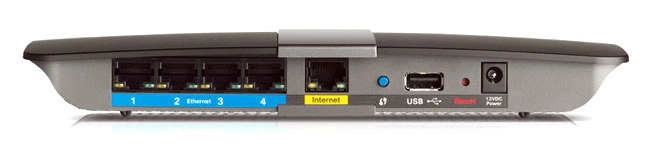

Ports & interfaces

DC-in jack

✓

Ethernet LAN (RJ-45) ports

USB ports quantity

Ethernet WAN

✓

Operational conditions

Operating relative humidity (H-H)

10 - 80 %

Storage relative humidity (H-H)

5 - 90 %

Technical details

Certification

CE, FCC, IC, Wi-Fi

Receiver

Receiver sensitivity

802.11b: -87 dBm @ 11 Mbps 802.11g: -77 dBm @ 54 Mbps 802.11n: 20 MHz: -71 dBm @ MCS15 802.11n: 40 MHz: -68 dBm @ MCS15 5 GHz 802.11a: -71 dBm @ 54 Mbps 802.11n: 20 MHz: -70 dBm @ MCS23 802.11n: 40 MHz: -68 dBm @ MCS23

Radar

Modulation

16-QAM, 64-QAM, BPSK, CCK, OFDM, QPSK

Product Details

Maximum Speed The Linksys E4200 connects all your computers, tablets, Internet-ready TVs, game consoles and other devices at wireless transfer rates of up to 300 + 450 Mbps for a premium home network experience. Maximum Range With a full 3x3 MIMO antenna array the Linksys E4200 provides exceptional coverage and reliability so you can enjoy wireless connectivity from anywhere in your home. Dual-Band Power Double your network bandwidth with Dual-Band N (2.4 and 5 GHz) designed to avoid interference and maximise throughput ideal for HD media streaming, high speed file transfers and wireless gaming. SpeedBoost The SpeedBoost technology helps to maintain high speeds across greater distances throughout your home for maximum wireless coverage and in-home mobility. Advanced security Advanced security features such as WPA2 wireless encryption and the integrated firewall help you keep your network protected.
