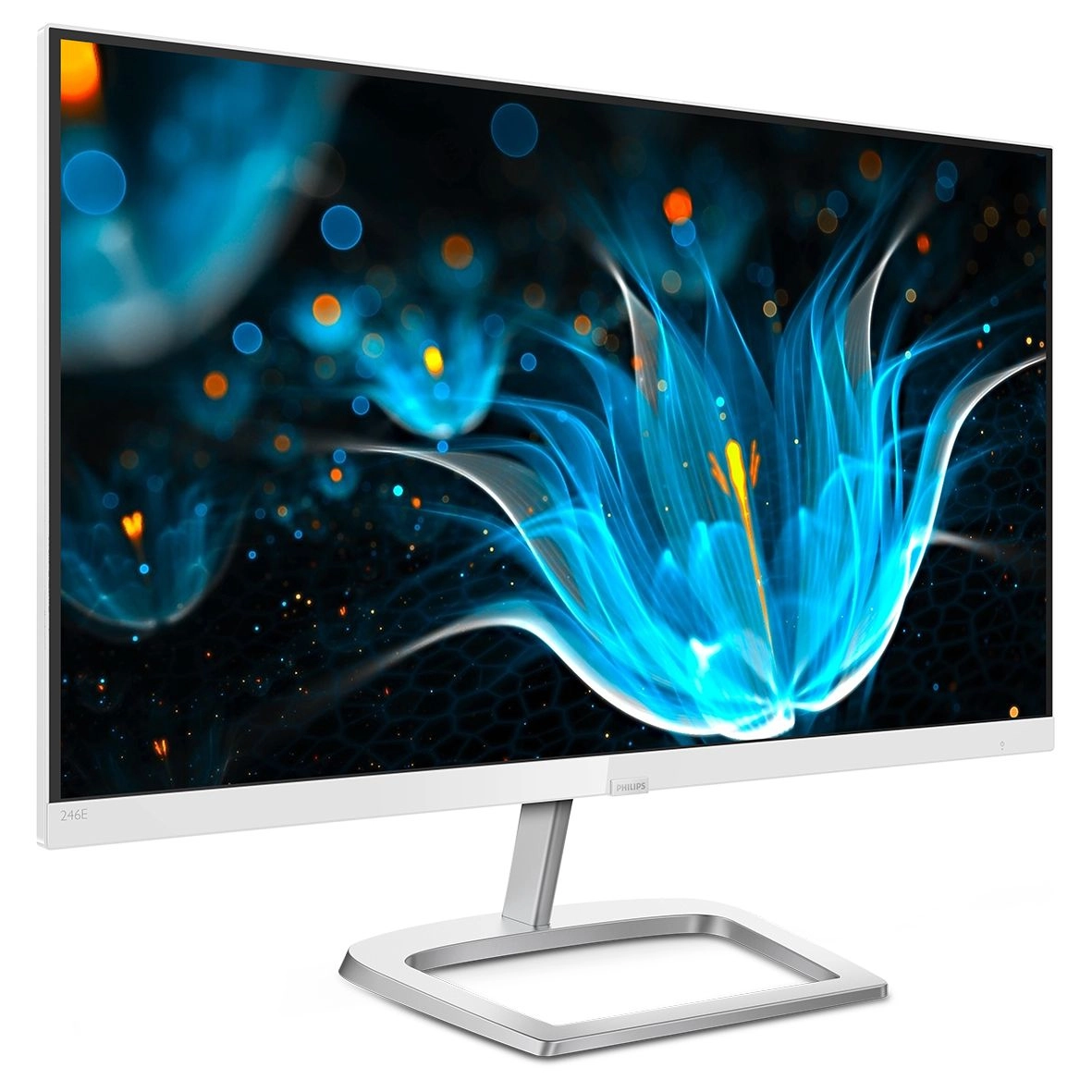

Philips (Renewed) E Line 246E9QHSW - 24 inch 1920 X 1080
Key Features
- VESA Adaptive Sync support: Yes
- DDC/CI: Yes
- Display brightness (typical): 250cd/m²
- Thin client installed: No
- Flicker-free technology: Yes
- Exterior finish type: Gloss
- Colour gamut standard: sRGB
- Aspect ratio: 16:9
- Resolution: 1920 x 1080pixels
- Rotating: No
- Display: LCD, LED
- No flickering: Yes
- Display surface: Gloss
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
- Backlight type: W-LED
Specifications
Features
Mean time between failures (MTBF)
50000 h
Compliance industry standards
BSMI, C-tick, CB, CCC, CE, CE Mark, CECP, CEL, CU-EAC, FCC B, FCC Class B, RCM, TCO, TCO certified, TUV/ISO9241-307, VCCI, WEEE
Plug and Play
✓
Total amount of recyclable materials
100 %
3D
✗
Feet colour
Gold, Silver, White
Viewable size, vertical
293 mm
On/off switch
✓
Viewable size, horizontal
521 mm
Tilt adjustment
✓
Maximum refresh rate
75 Hz
Product colour
White
Audio input
No
Colour gamut standard
sRGB
Aspect ratio
16:9
Resolution
1920 x 1080 pixels
Rotating
✗
Display
LCD, LED
No flickering
✓
Display surface
Gloss
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Backlight type
W-LED
Display brightness (typical)
250 cd/m²
Packaging data
Package dimensions (W x D x H)
22.87 x 19.29 x 4.02 "
Package type
Box
Package dimensions (WxDxH)
581 x 490 x 102 mm
Recyclable packaging material
100 %
Package weight
5130 g
Package height
490 mm
Package depth
102 mm
Package width
581 mm
Weight & dimensions
Package weight
5.13 kg
Weight (with stand)
3180 g
Height (with stand)
419 mm
Depth (with stand)
179 mm
Width (with stand)
539 mm
Weight (without stand)
2610 g
Height (without stand)
324 mm
Width (without stand)
539 mm
Depth (without stand)
45 mm
Display
Display resolution
1920 x 1080 pixels
Display diagonal (metric)
60.50 cm
Panel type
IPS
Touchscreen
✗
Native aspect ratio
16:9
Colour gamut
101.40 %
Display technology
LCD, LED
Anti-glare screen
✓
Vertical scan range
56 - 76 Hz
Contrast ratio (typical)
1000:1
Horizontal scan range
30 - 83 kHz
Display number of colours
16.78 million colours
NTSC coverage (typical)
108 %
sRGB coverage (typical)
129 %
Pixel pitch
0.27 x 0.27 mm
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Contrast ratio (dynamic)
20000000:1
Haze rate
25 %
Effective viewing area
521.28 x 293.22 mm
Dynamic contrast ratio marketing name
SmartContrast
Pixel density
93 ppi
Response time
5 ms
Surface hardness
3H
DDC/CI
✓
Power
Energy efficiency class (old)
A+++
Power supply type
External
Power consumption (typical)
14.47 W
AC input voltage
100 - 240 V
Energy efficiency class (SDR)
E
AC input frequency
50 - 60 Hz
Power consumption (standby)
0.50 W
Power consumption (off)
0.30 W
Annual energy consumption
36 kWh
Performance
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages
21
On Screen Display (OSD)
✓
Component video sync
Separate sync, Sync-on-green (SOG)
HDCP
✓
AMD FreeSync
✗
TV tuner integrated
✗
Flicker-free technology
✓
VESA Adaptive Sync support
✓
System requirements
Mac operating systems supported
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Other features
Power consumption (active)
19.43 W
Picture enhancement
SmartImage game
Relative humidity
20 - 80 %
Dimensions (W x D x H) with stand
539 x 419 x 179 mm
Heavy metals free
Hg (mercury)
Cable lock slot type
Kensington
Separate H/V sync
✓
Sync-on-green (SOG)
✓
Display sRGB
✓
LowBlue mode
✓
Design
VESA mounting
✓
LED indicators
Operation, Power, Stand-by, Yes
Cable lock slot
✓
Panel mounting interface
100 x 100
Pivot
✗
Screen shape
Flat
Swivelling
✗
Height adjustment
✗
Exterior finish type
Gloss
Graphics
NVIDIA G-SYNC
✗
Packaging content
Manual
✓
Cables included
AC, HDMI
Stand included
✓
Camera included
✗
Network
Wi-Fi
✗
Bluetooth
✗
Miracast
✗
Ethernet LAN
✗

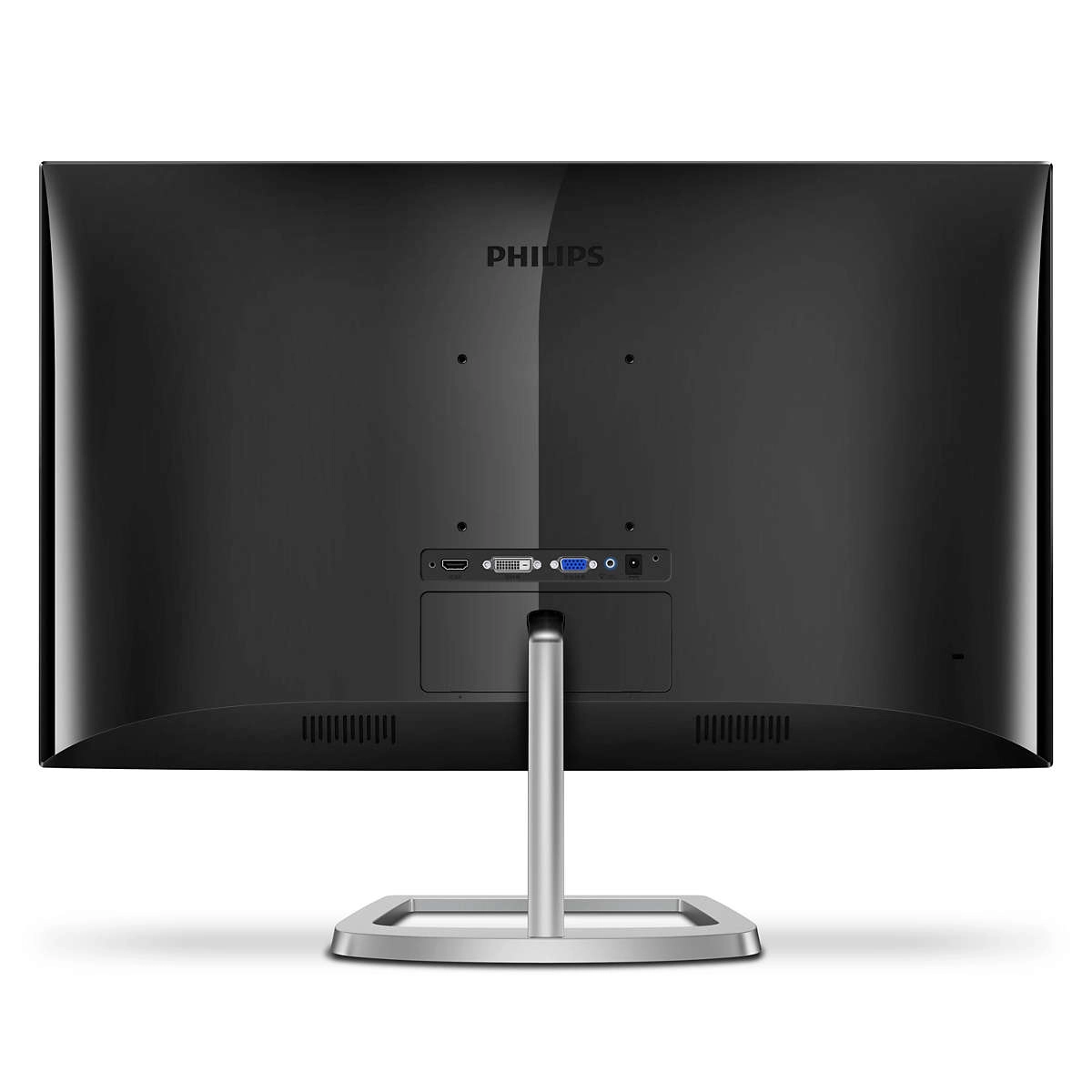

Ports & interfaces
Headphone out
✗
DVI-D ports quantity
1
VGA (D-Sub) ports quantity
1
Built-in USB hub
✗
DisplayPorts quantity
1
Mobile High-Definition Link (MHL)
✓
HDMI
✓
Audio output
Yes
PC Audio in
✓
HDMI ports quantity
1
DVI port
✓
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Non-operating altitude
3658 - 12192 m
Operating altitude
0 - 3658 m
Technical details
Regulatory Approvals
FCC Class B
Convenience enhancements
Power On/Off
Certification
: CU-EAC, BSMI, C-tick, CCC, CE Mark, CECP, CU-EAC, CUEAC, Ctick, FCC Class B, KC, KCC, RoHS, TCO certified, TUV/ISO9241-307, VCCI, WEEE
Sustainability certificates
ENERGY STAR, EPEAT Silver
Compliance certificates
RoHS, WEEE
Audio
Built-in speaker(s)
✗
Number of speakers
2
RMS rated power
3 W
Video
HD type
Full HD
Supported video modes
1080p
Camera
Built-in camera
✗
Analog signal format system
NTSC
Thin Client
Thin client installed
✗
Product Details
This brilliant wide view display with Ultra Wide-Color offers true-to-life colors wrapped in an elegance-inspired design for a light and fresh face in any home or office.
Ultra Wide-Color wider range of colors for a vivid picture
Ultra Wide-Color Technology delivers a wider spectrum of colors for a more brilliant picture. Ultra Wide-Color wider "color gamut" produces more natural-looking greens, vivid reds and deeper blues. Bring, media entertainment, images, and even productivity more alive and vivid colors from Ultra Wide-Color Technology.
PLS LED wide-view technology for image and color accuracy
PLS displays uses an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, PLS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.
16:9 Full HD display for crisp detailed images
Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colors expect a true to life picture.
Less eye fatigue with Flicker-free technology
Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.
SmartContrast for deep black level details
SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.
EasySelect menu toggle key for quick on-screen menu access
The discreetly placed EasySelect Menu Toggle Key allows you to make quick and easy adjustments to monitor settings in the On-Screen Display menu.

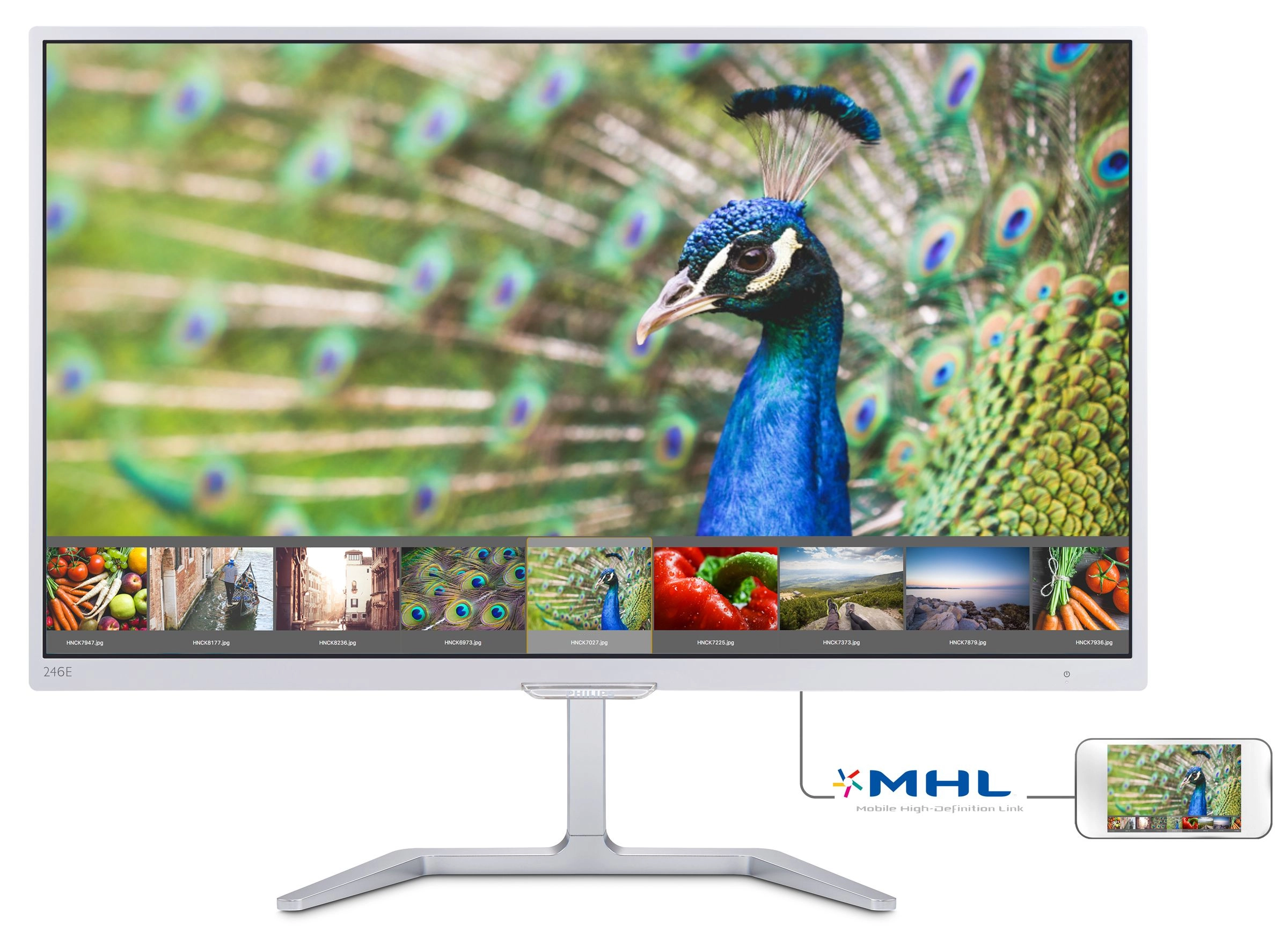

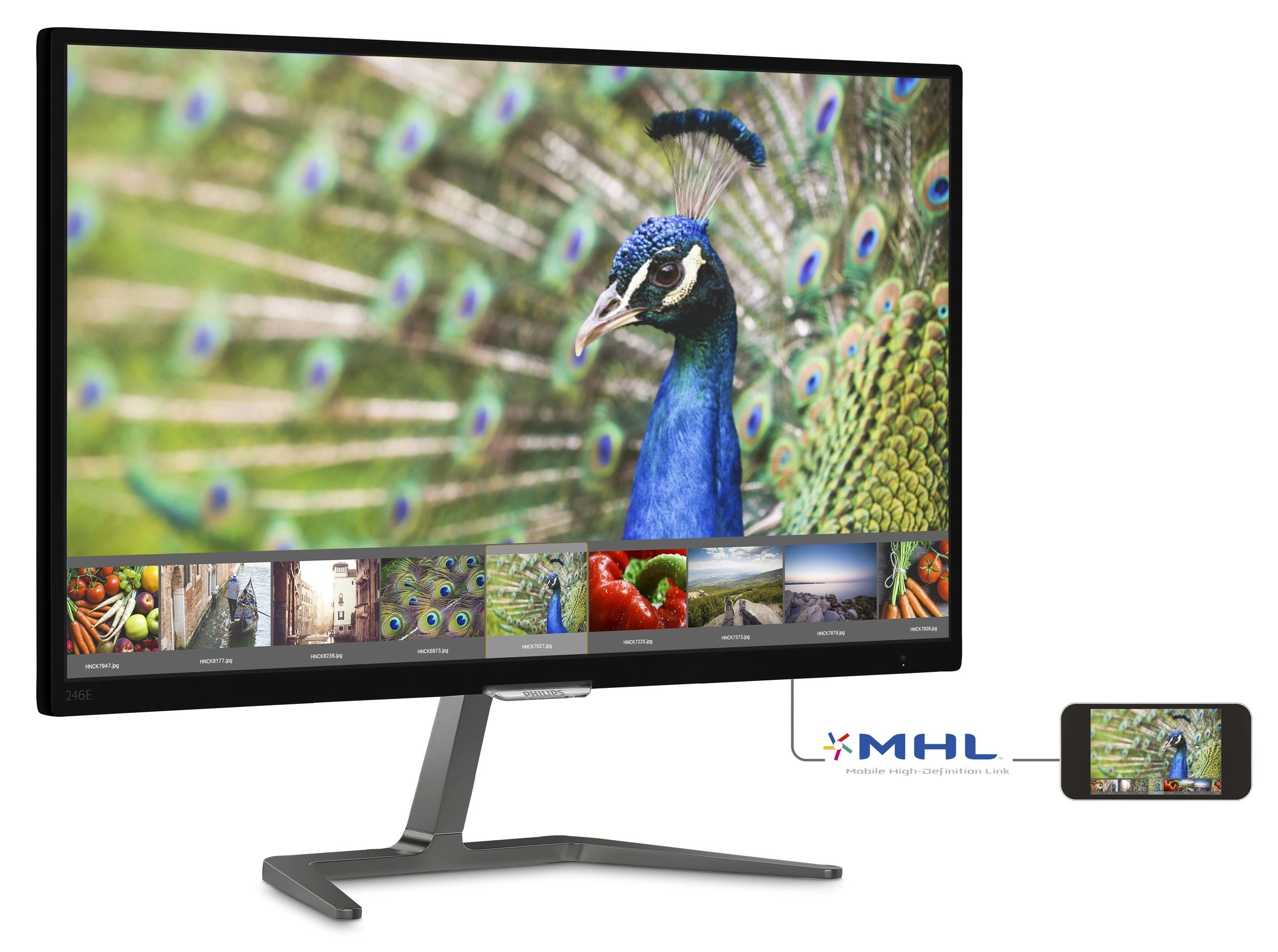

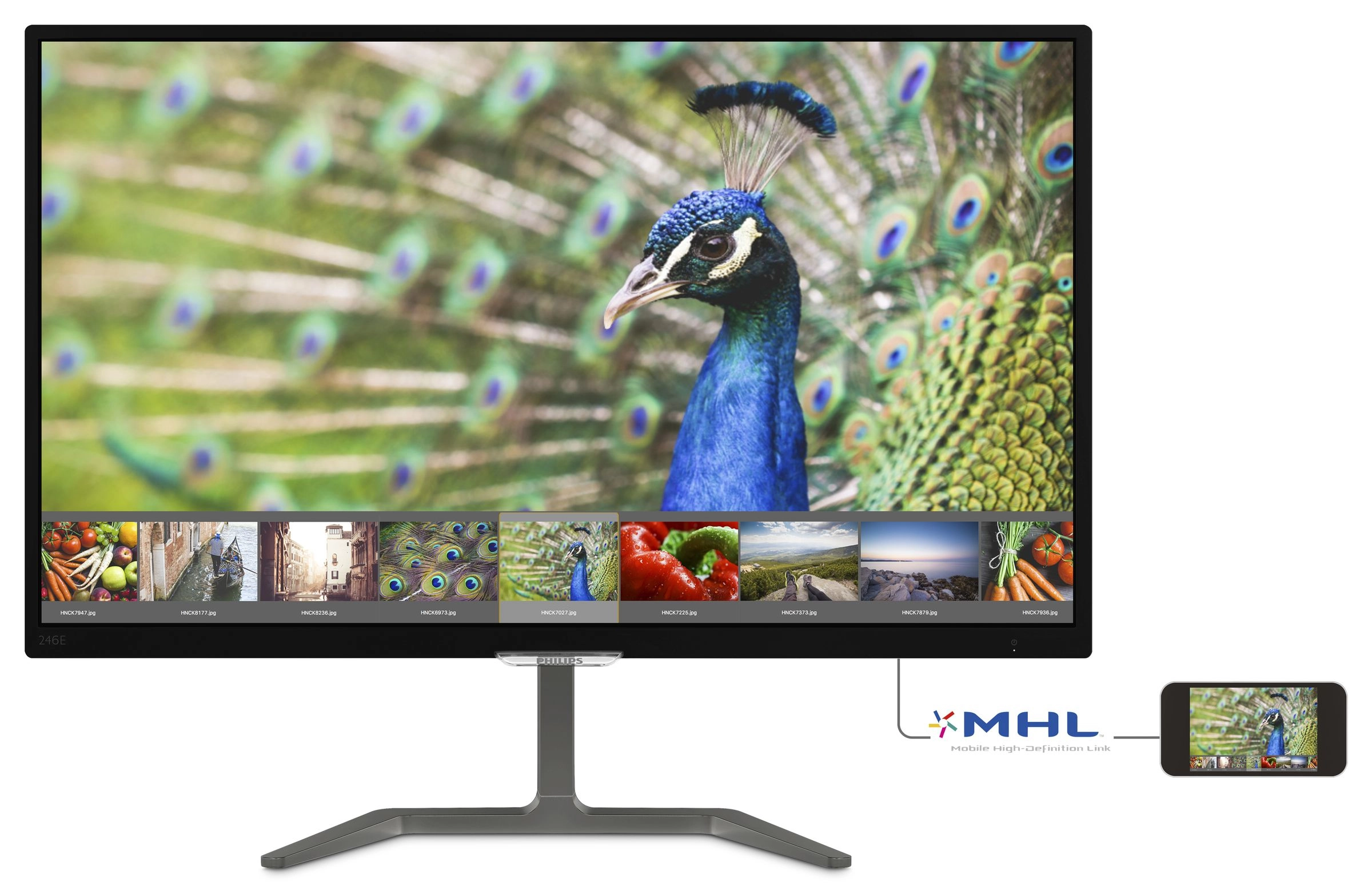

MHL technology for enjoying mobile content on big screen
Mobile High Definition Link (MHL) is a mobile audio/video interface for directly connecting mobile phones and other portable devices to high-definition displays. An optional MHL cable allows you to simply connect your MHL capable mobile device to this large Philips MHL display, and watch your HD videos come to life with full digital sound. Now not only you can enjoy your mobile games, photos, movies, or other apps on its big screen, you can simultaneously charge your mobile device so you never run out of power half way.
SmartImage Lite for easy optimized image settings
SmartImage Lite is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage Lite dynamically enhances the contrast, color saturation and sharpness of images and videos for ultimate display performance - all in real time with the press on a single button.
Files
Quick start guide
mmo_36652254_1497268127_5304_20602.pdf
PDF• 5.3 MB
User manual
mmo_36652254_1497268137_309_29147.pdf
PDF• 2 MB
Product Brochure
mmo_36652254_1497268145_8315_29149.pdf
PDF• 907.8 KB
quick start guide
mmo_37642546_1504789954_2176_5951.pdf
PDF• 5.3 MB
246E9QJAB/69_QSG_en_GB
mmo_55184129_1705066762_0351_1771517.pdf
PDF• 6.1 MB
EU Energy Label
mmo_55367111_1527241655_529_12488.pdf
PDF• 244.8 KB
246E9QDSB/96_QSG_en_GB
mmo_55367111_1717433850_9224_3862057.pdf
PDF• 3.4 MB
246E9QJAB/96_QSG_en_GB
mmo_55367114_1705066681_2528_1129195.pdf
PDF• 6.1 MB
