Shenzhen HouTian Network Communication Technology Co., Ltd. VBG1200

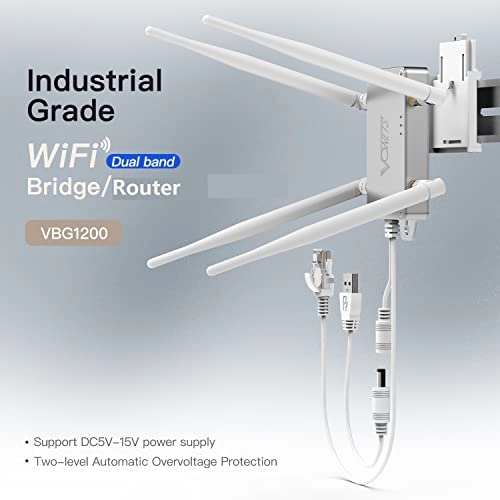

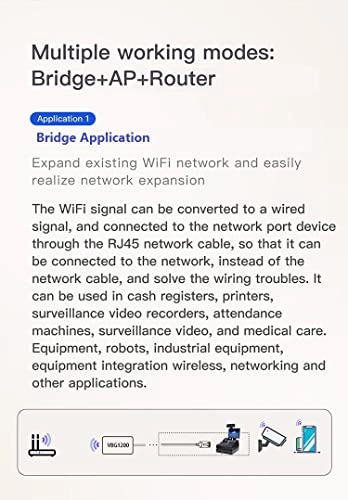

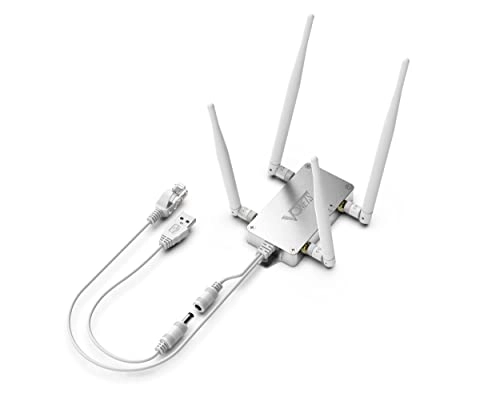

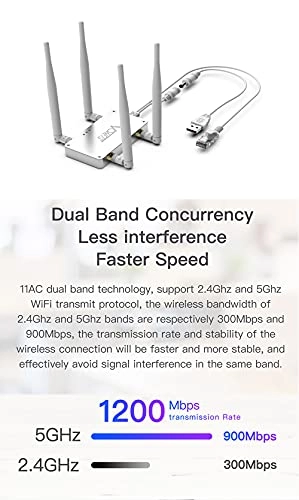

VBG1200 is an industrial Dual-band 2.4GHz+5GHz WiFi Bridge/Mini Router/Wireless Repeater, can achieve WiFi to Wired or Wired to WiFi function (WiFi to Ethernet or Ethernet to WiFi convert) Features: 1.Support 802.11ac/a/g/b/n WiFi transmission protocol, WiFi transmission rate: 300Mbps(2.4G)+900Mbps(5G) 2. Support wide voltage DC5V-15V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 15.5V) 3.The product built-in low noise amplifier (LNA) to enhance receiving sensitivity (the receiving sensitivity is 14dB); the product built-in PA greatly enhances signal coverage 4.The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working; 5. Working Environment temperature is -20℃ to 50℃ 6.Support connecting more than 20pcs WiFi terminal at the same time 7. Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode; 8. WiFi hotspot memory, up to 100 hotspots; 9.Hotspot connection parameter import and export function 10. Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop; 11. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications. Hardware Specification: Reset button: Long press 5 seconds then release (During operation, the product can not be powered down, otherwise it may cause damage to the product.) LED Status instruction: Ethernet port status light (Yellow); 2.4G WiFi connection status light (Blue); 5G WiFi connection status light (Green); Packages: 1* VBG1200 2*2.4GHz external antennas 2*5GHz external antennas 1* DC Industrial connector 1* Fixing kit 1* User manual 1* Retail box
