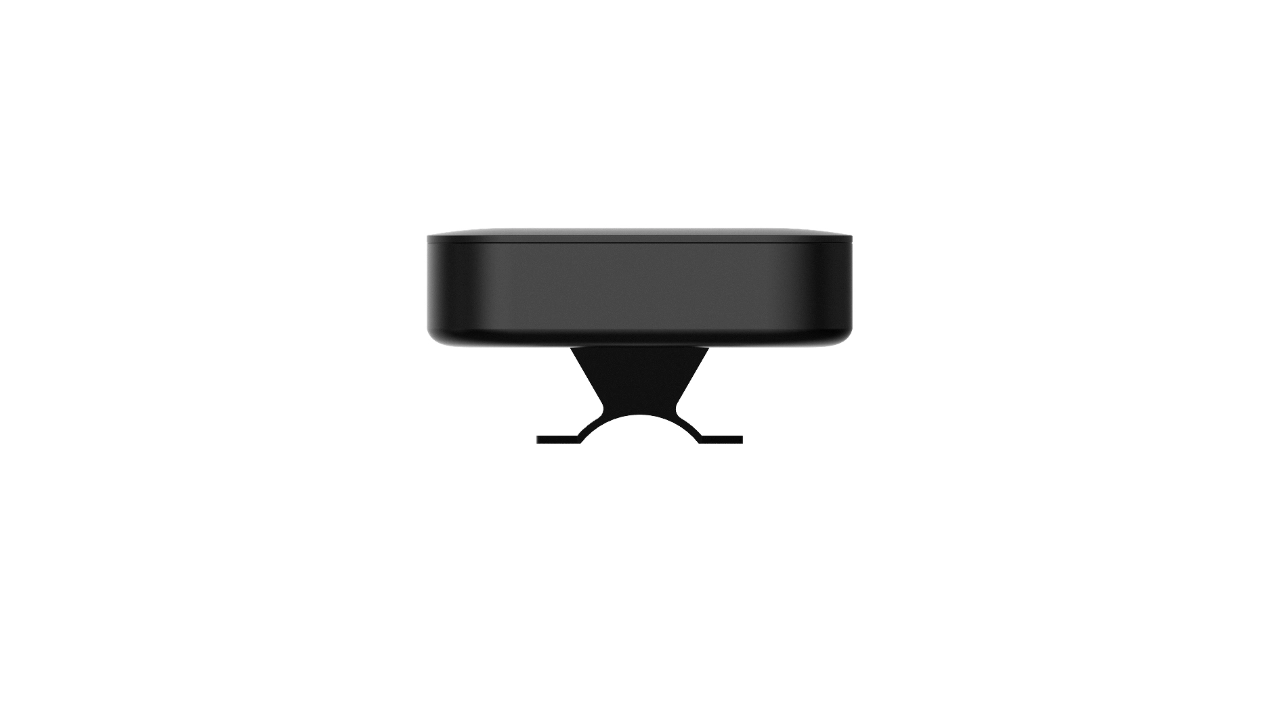

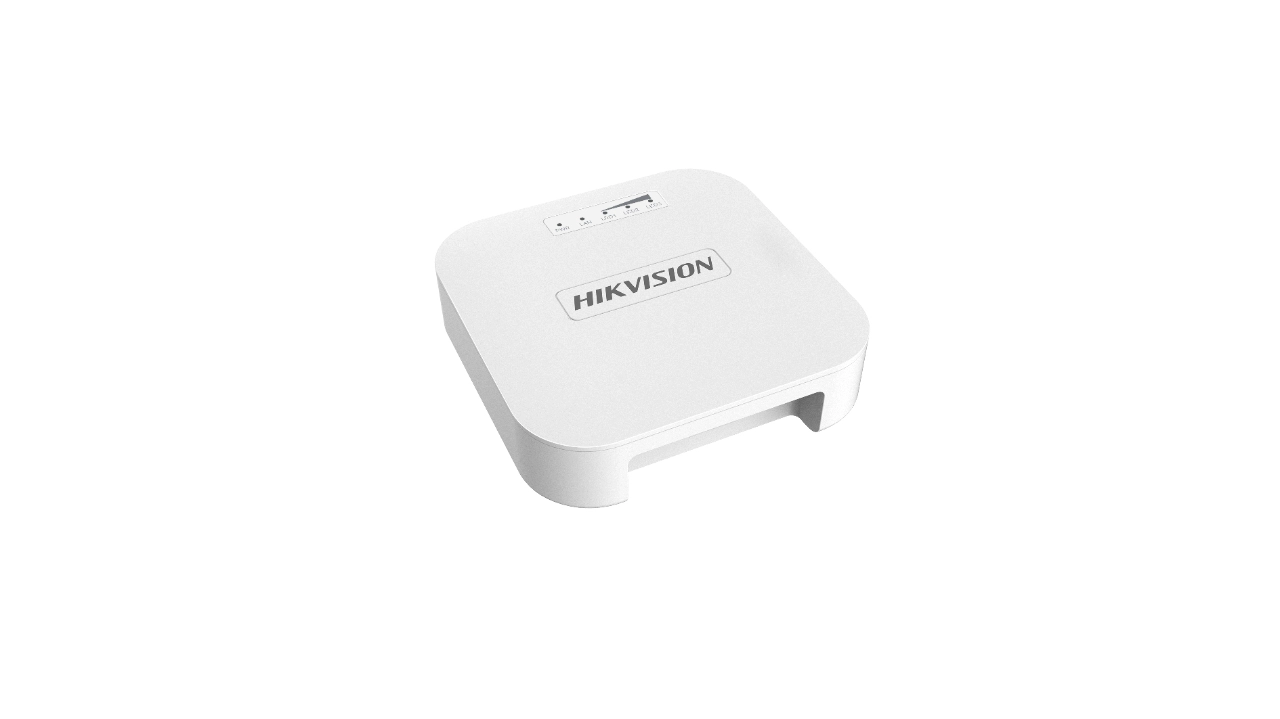

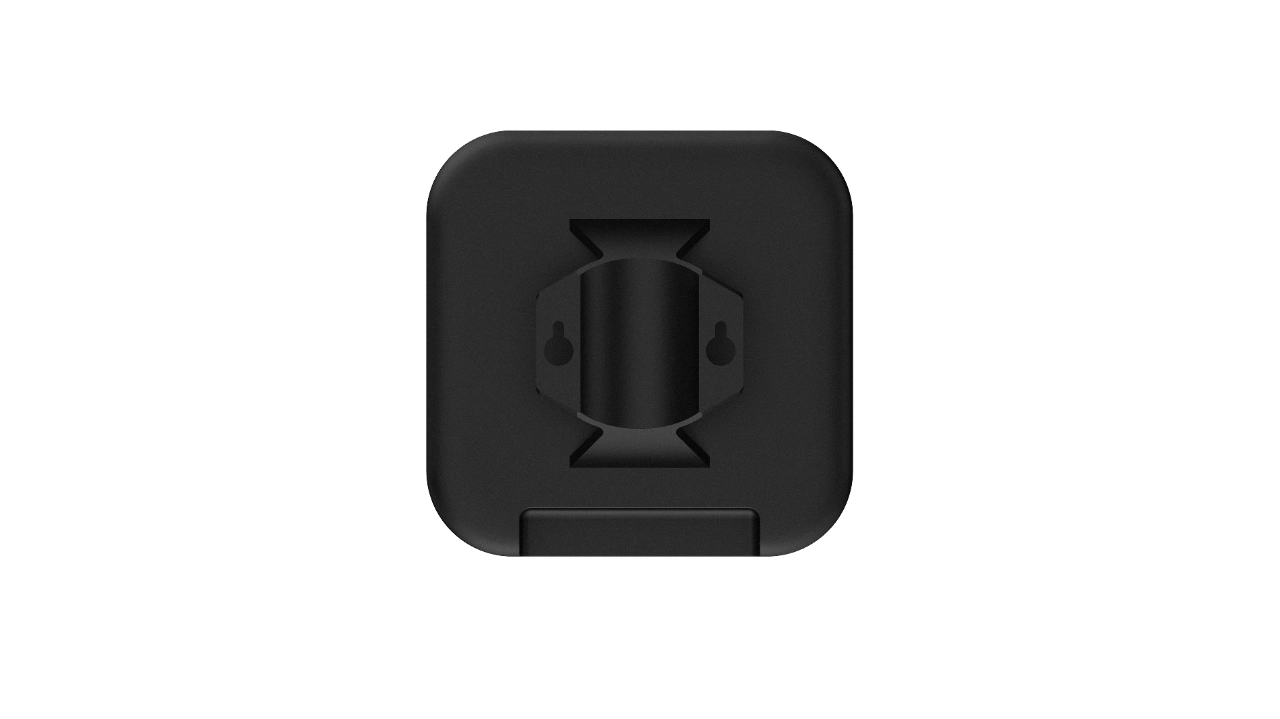

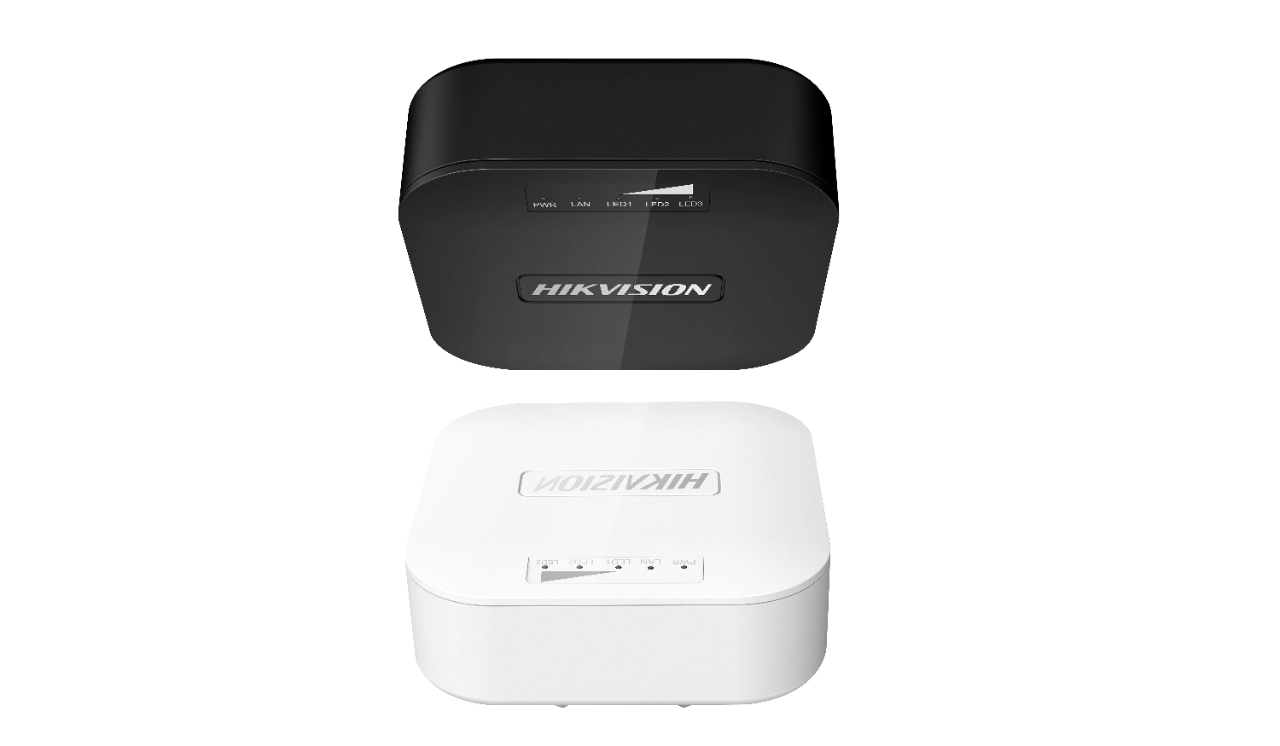

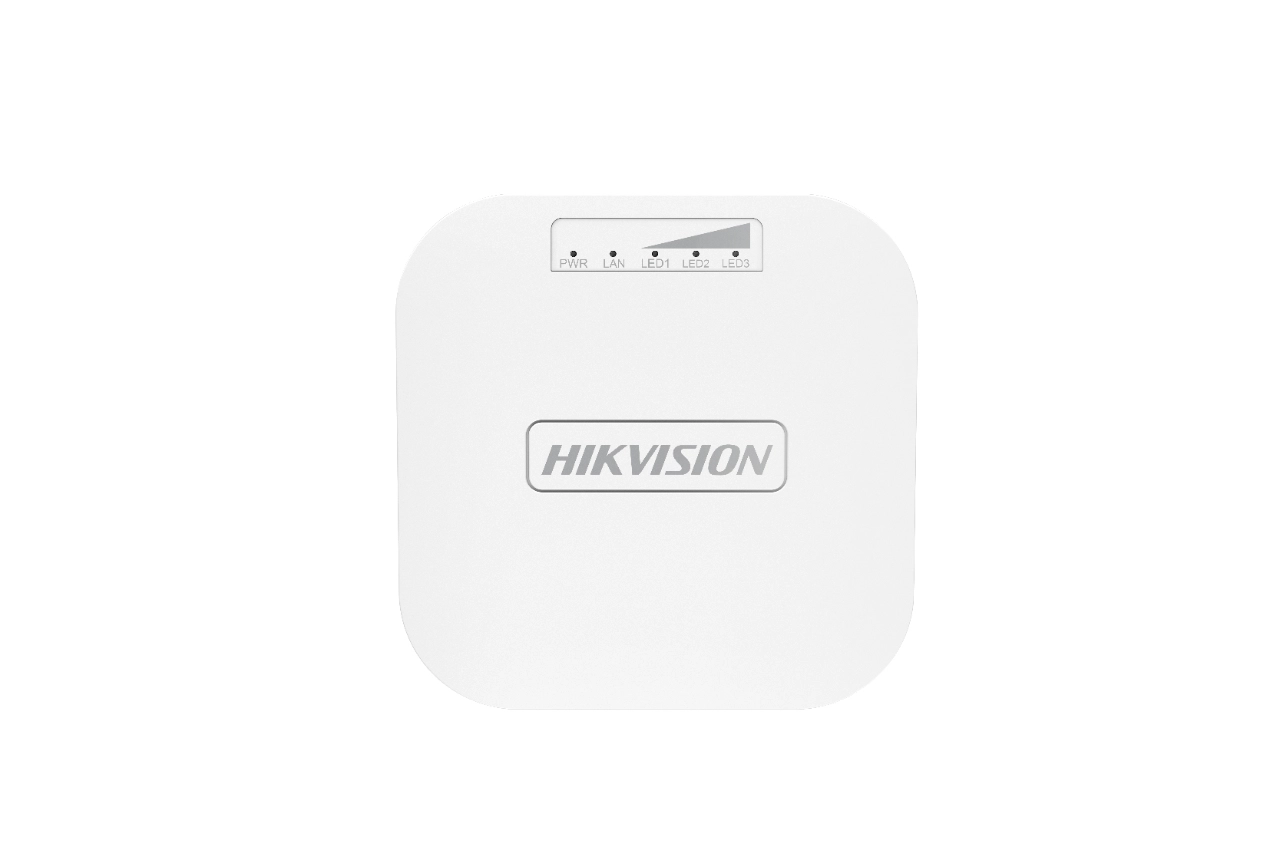

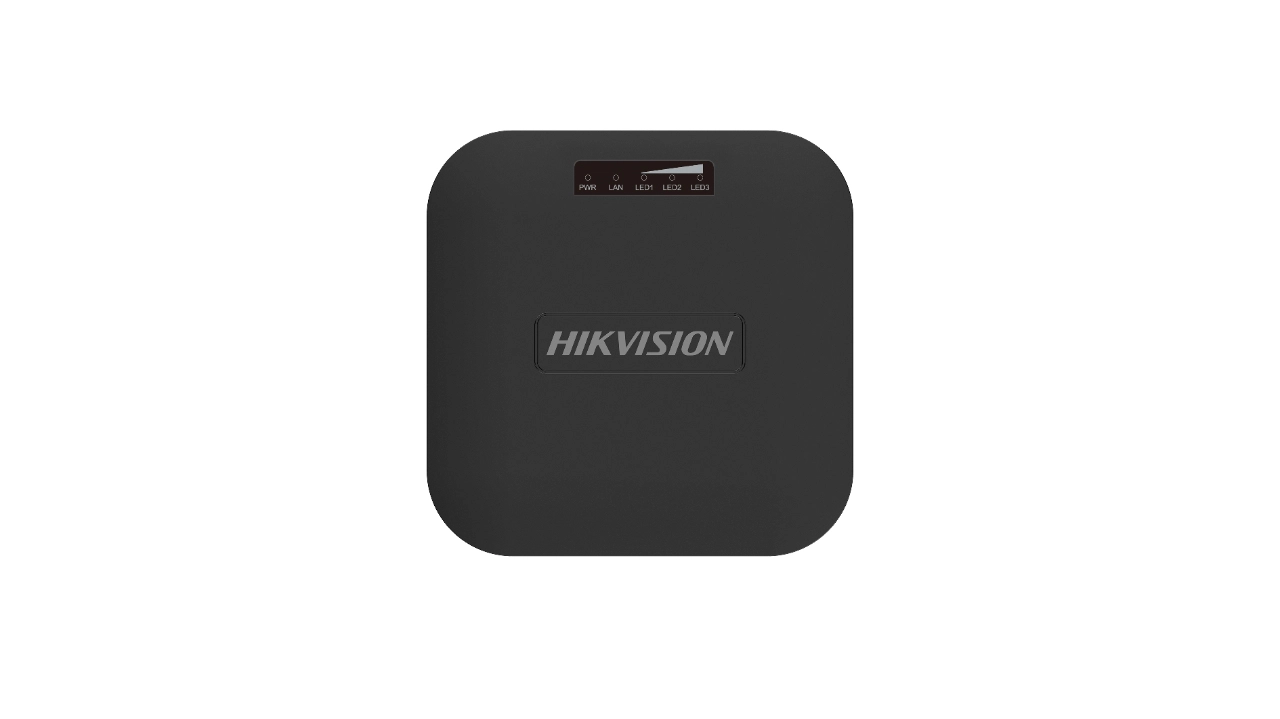

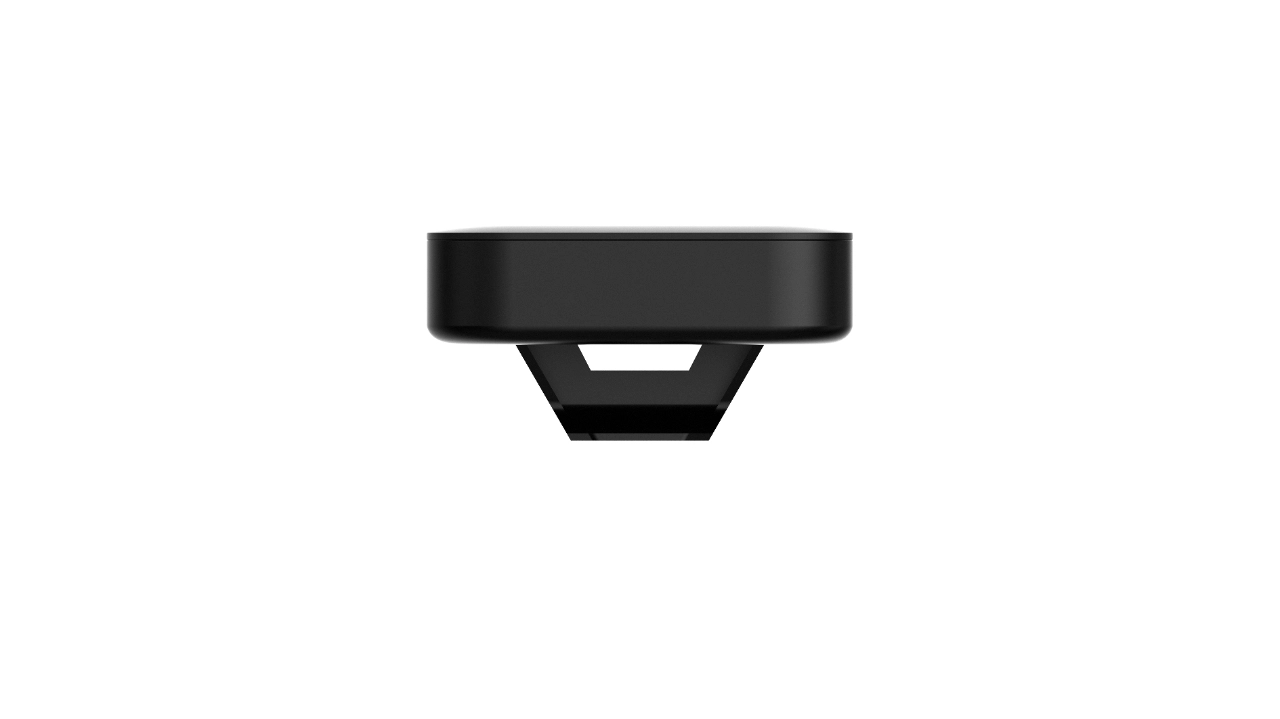

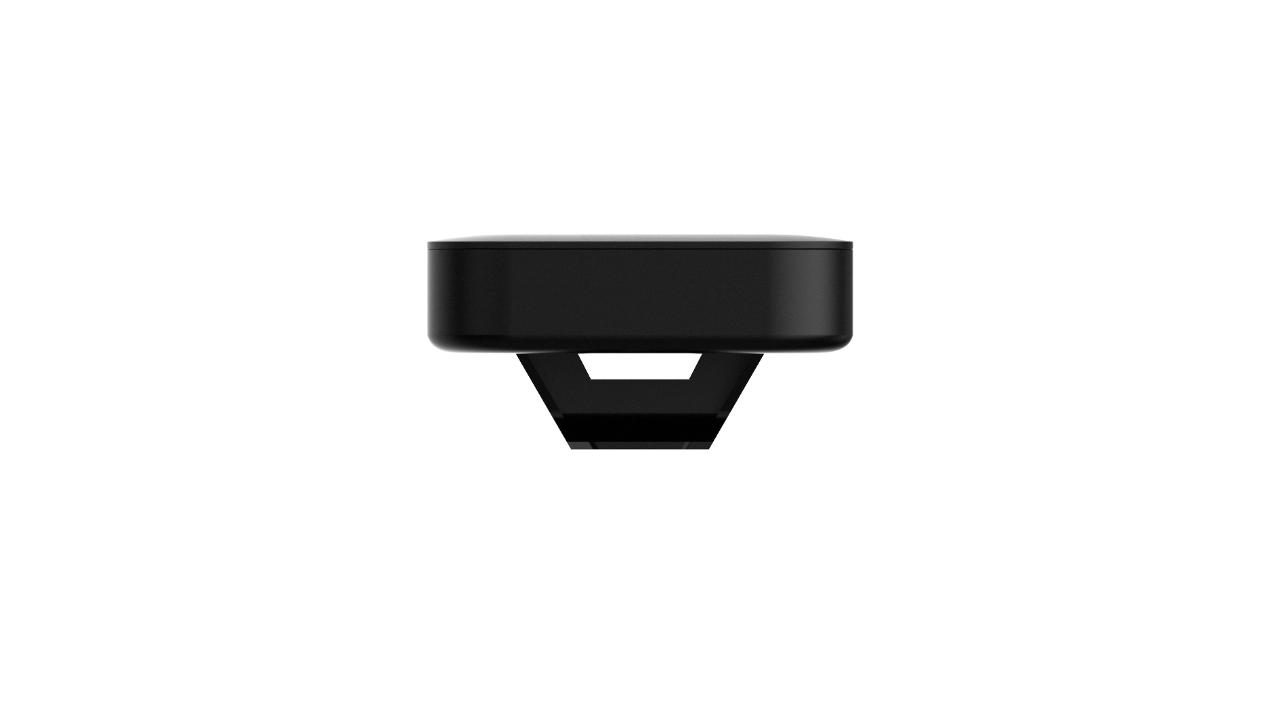

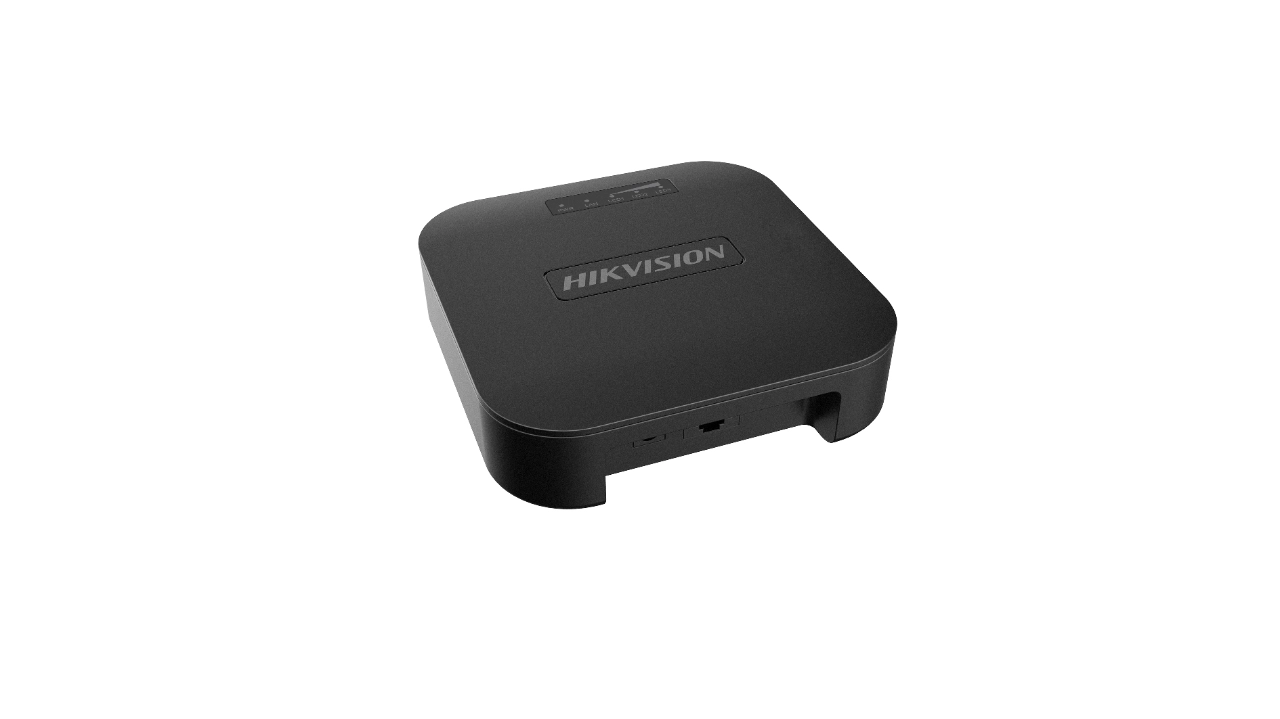

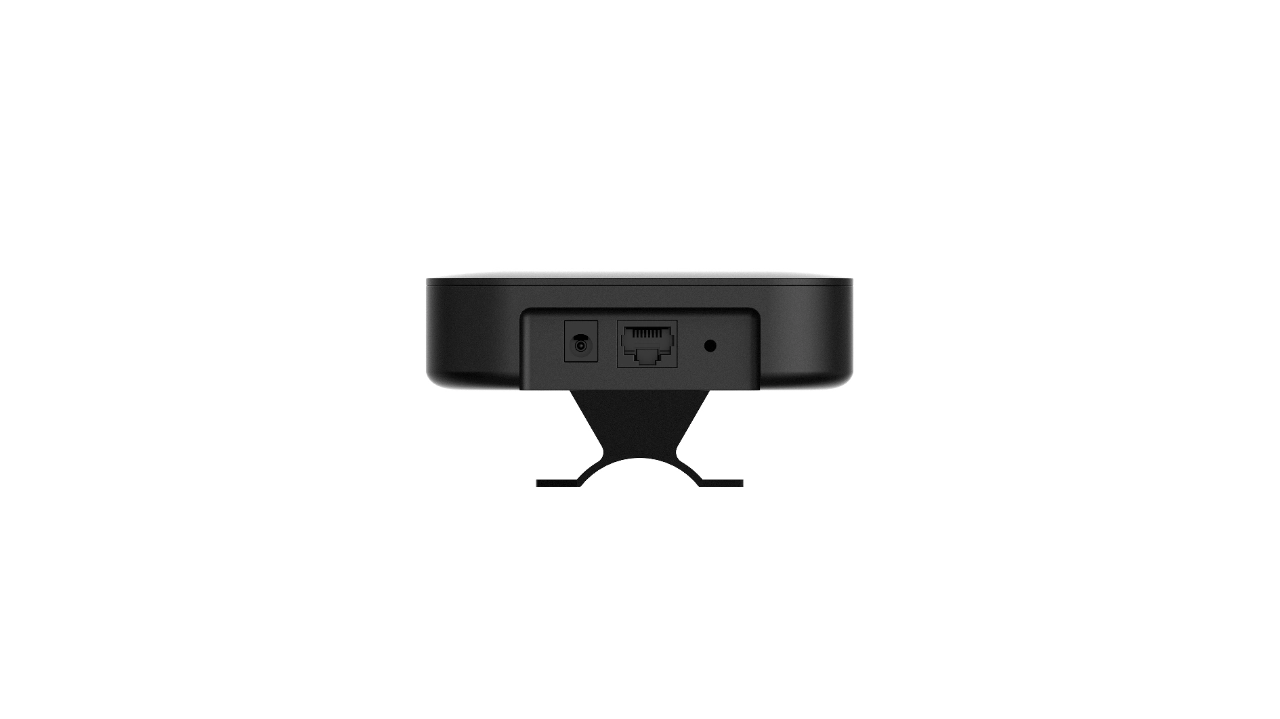

Hikvision DS-3WF0BC-2NT

Key Features

WLAN data transfer rate (max): 300Mbit/s
PoE+ Injector(s): Yes
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Antenna design: Internal
Ethernet LAN interface type: Fast Ethernet
Antenna gain level (max): 8dBi
Maximum data transfer rate: 300Mbit/s
Frequency band: 2.4 - 2.4835 GHz, 2.412 - 2.472 GHzGHz
Product type: Network bridge
Quick installation guide: Yes
Wi-Fi band: Single-band (2.4 GHz)
Ethernet LAN: Yes
Ethernet LAN data rates: 10Mbit/s
Product colour: White
Power source type: PoE

Specifications

Features

Supported protocols

HTTP/HTTPS, NTP, SADP

Maximum transfer distance

100 m

Security algorithms

WPA-PSK, WPA2-PSK

Product colour

White

Antenna gain level (max)

8 dBi

Maximum data transfer rate

300 Mbit/s

Frequency band

2.4 - 2.4835 GHz, 2.412 - 2.472 GHz

Product type

Network bridge

Packaging data

Package weight

770 g

Package height

231 mm

Package depth

86 mm

Package width

256 mm

Weight & dimensions

Weight

690 g

Height

46 mm

Depth

67.50 mm

Width

193.50 mm

Power

Power consumption (typical)

1.89 W

DC input voltage

12 V

Power consumption (max)

2.80 W

DC output current

1 A

Power source type

PoE

Performance

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wireless LAN features

WLAN data transfer rate (max)

300 Mbit/s

Design

Reset button

✓

LED indicators

Yes

Packaging content

binding tape × 4

Quick installation guide

✓

PoE+ Injector(s)

✓

Network

Wi-Fi

✓

Security features

TCP/UDP/ARP/ICMP/HTTP/NTP

Wi-Fi band

Single-band (2.4 GHz)

Ethernet LAN

✓

Ethernet LAN data rates

Ethernet LAN interface type

Fast Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Certification

AMD2:2013, CB (AMD1:2009, CE-EMC (EN 55032: 2015+A11: 2020, CE-LVD (EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU), EN 300 440, EN 301 489-17, EN 301 489-3, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), EN 61000-3-3: 2013+A1: 2019, EN 62311, EN IEC 61000-3-2: 2019, IEC 62368-1: 2014 (Second Edition), Reach (Regulation (EC) No.1907/2006) EN 301 893, WEEE (2012/19/EU)

Antenna

Antenna design

Internal

Receiver

Receiver sensitivity

-68 ± 2 dBm

Logistics data

Harmonized System (HS) code

85176990

Product Details

Have you ever bothered with long-range data transmission? Hikvision wireless bridges can take away your worries. Our wireless bridges provide stable long-range wireless data transmission with easy installation and configuration, and are perfectly suitable for different application scenarios. Bring convenience and efficiency together.

Files

Product Brochure

mmo_120772745_1716468021_1276_17834.pdf

PDF• 1 MB

Quick Start Guide

mmo_120772745_1716468029_5444_5874.pdf

PDF• 1.6 MB

User manual

mmo_120772745_1716468033_7359_3496.pdf

PDF• 1.3 MB
