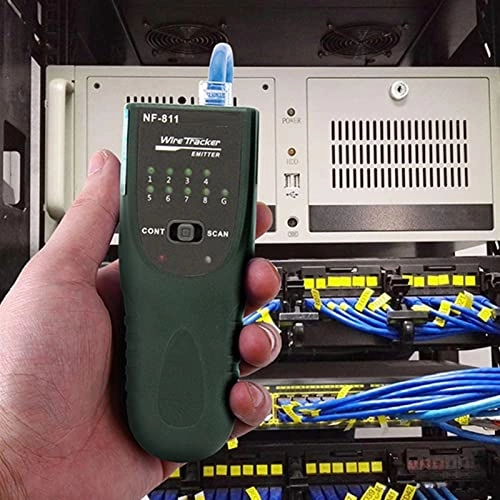

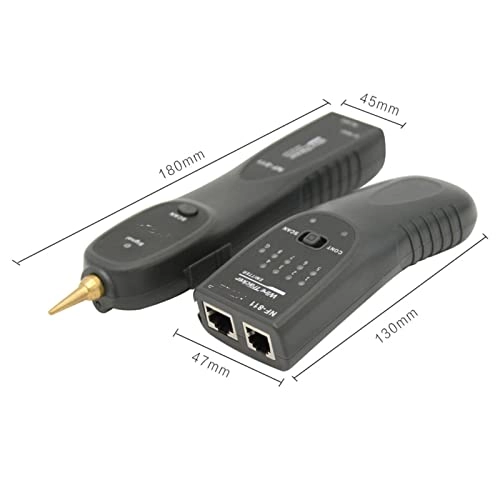

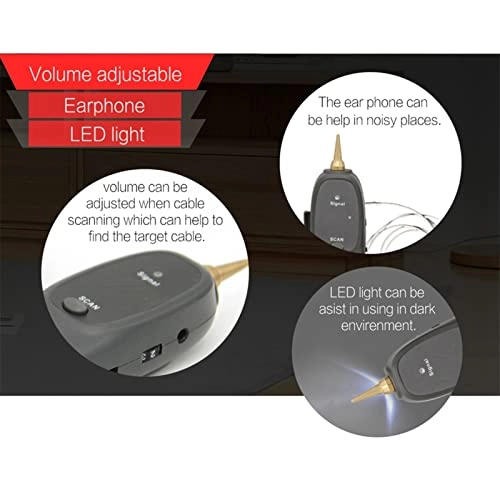

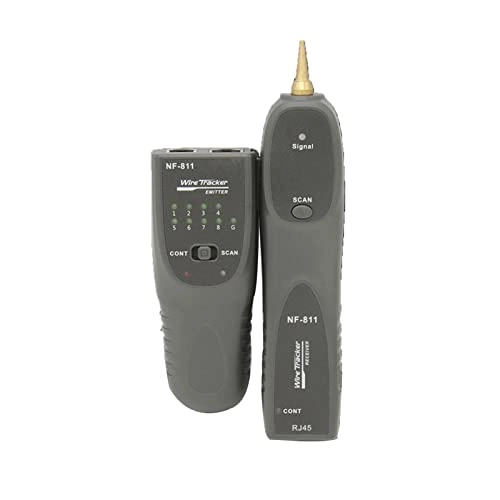

ZAIED NF-811 - RJ11 RJ45 Tone Trace

Main functions: 1. tone trace the required line among numerous ones, perfect for tracking RJ11, RJ45, cables or other metal wire (via adapter) 2. It testes physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection 3. Use the emitter to test the status of working of telephone lines, such as judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook 4. Highlights for 60V endurable, users can track wires which is in low-electricity less than 60V without burnout or damaged. 5. Clips allow easy access to individual pairs and RJ11 RJ45 easily connect to telephone jacks---no need for adapters "6. Used on single conductors, twisted pairs, telephone cable and electrical wiring, a practical tool for service providers in network infrastructure installation, certification, and troubleshooting. Technical indexes: NF-811 Transmitter specification Dual Tone frequency 0.6kHz 1.3kHz Max. distance of transmission 2 kilometers Max. working current 30mA Compatible connectors RJ11, RJ45 Max. signal voltage 8Vp-p Function display Led for Wiremap, Tone for trace Voltage protection DC 60V Battery Type DC9.0V（NEDA 1604/6F22 ) x1pc Dimension(LxWxD) 130*47*35mm NF-811 Receiver specification Tone frequency 0.6~1.3kHz The Max. working current 90mA Earphone jack 1 Battery Type DC9.0V（NEDA 1604/6F22 ) x1pc Dimension(LxWxD) 180*45*30mm Accessories Included: Tone Generator x 1pcs Amplifier probe x 1pcs User Manual x 1pcs 9V battery x 2pcs Earphone x 1pcs Carry bag x 1pcs Gift box x 1pcs Package Include: 1X NF-811 wire tracker
