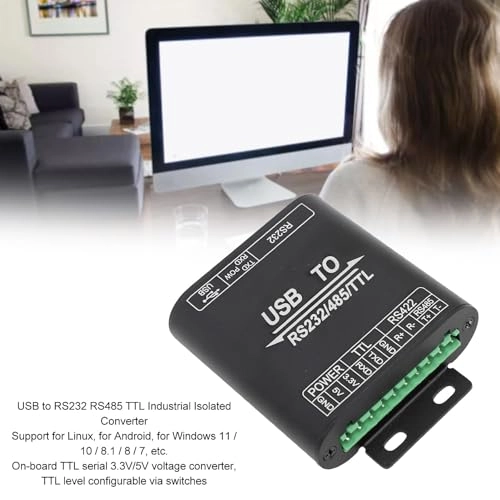

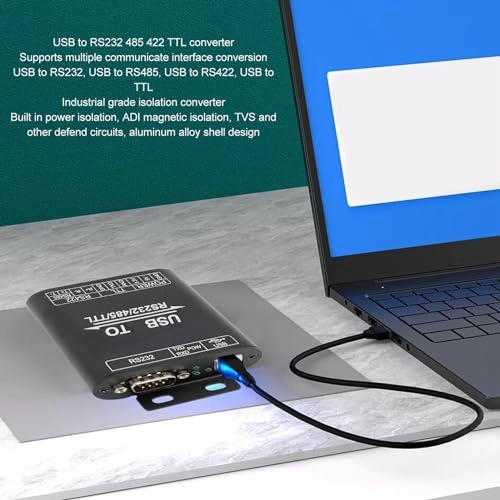

XUMIUZIY 485 422 TTL Converter - USB B DB9 Male 15KV

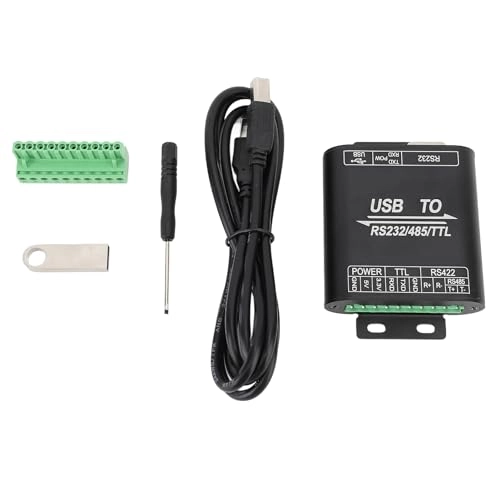

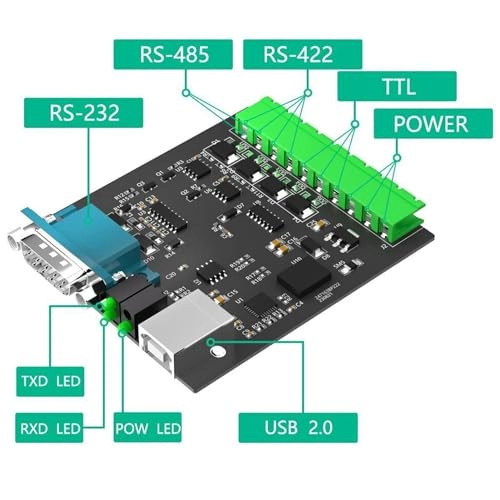

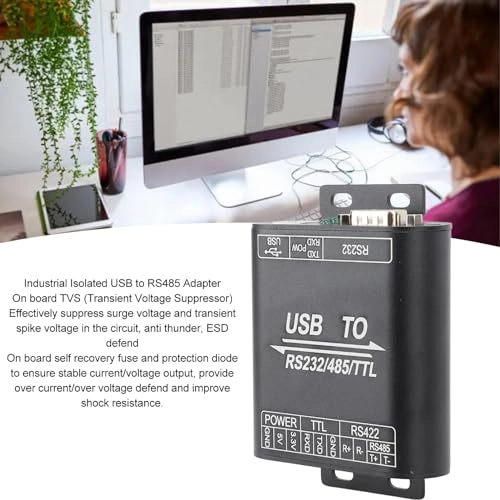

Specification: Item Type: USB to 485 422 TTL Converter Material: Aluminum Alloy USB: Connector: USB B Defend: 200mA Self Recovery Fuse, Isolated Output : Connector: DB9 Male Defend: TVS Diode, Surge Defend and ESD Defend Transmission Method: Point to Point Baud Rate: 300bps to 3Mbps /422: Connector: Screw Terminal Direction Control: Hardware Automatic Control Defend: 600W Anti Thunder Surge Defend, 15KV ESD Defend(two 120R Balancing Resistors Reserved, Enabled/Disabled via Jumper) Transmission Mode: Point to Multipoint (485 Mode: Up to 32 Nodes, Repeater Recommended for More Than 16 Nodes; 422 Mode: Up to 256 Nodes, Repeater Recommended for More Than 16 Nodes) Baud Rate: 300bps to 3Mbps TTL (UART) Connector: Screw Terminal Pinout: TXD, RXD, GND, 5V/3.3V Transmission Method: Point to Point Baud Rate: 300bps to 3Mbps Indicator: TXD: TX Indicator, Lit When the USB Port Sends Data RXD: Indicator, Lit When the Device Port Sends Back Data Support: Support Multi Device and Multi System for Android, for , for 11/10/8.1/8/7, etc. How to Use: Remove the product and use it packing list: 1 xUSB to 485 422 TTL Converter 1 x USB Cable 1 x USB Flash Drive 1 x 1 x Wiring Terminal
