Xinyuanhuitong Managed 8PoE+2SFP -2.5G 10-ports

Overview:

The Industrial Gigabit 10-Port PoE Switch has 2 Gigabit SFP port and 8 RJ45 port supportsing IEEE802.3af/at PoE supply. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40°F and 176°F, making it ideal for outdoor installations or industrial applications.

Features:

• 2 port 1000Base-FX
• 8 port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
• Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
• 48~57VDC wide range power input
• Supports 802.3x Flow control
• Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
• Redundant Power Supply

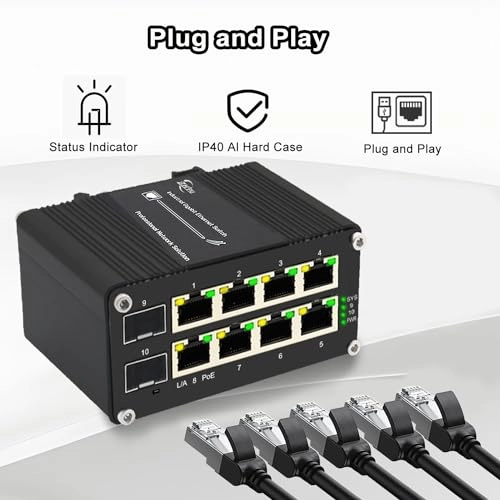

• Status Indicator

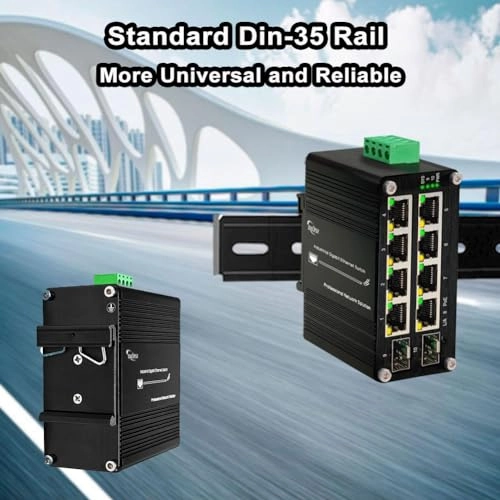

• Supports DIN-Rail and Wall-mount installation
• Industry standard design, dustproof and close design IP40, rugged high-strength metal case
• -40°C to 80°C (-40°F to 176°F) operating temperature

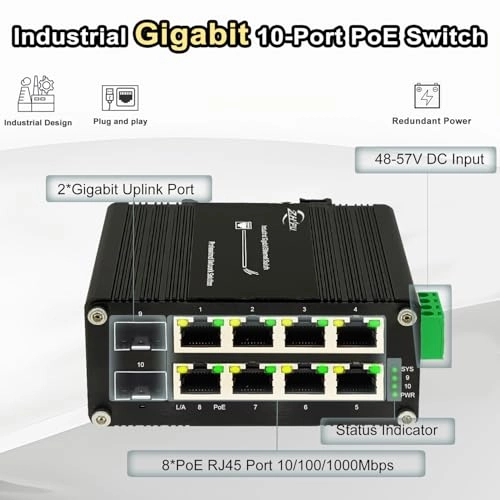

Specification:

Connector: 8xRJ45, 2xSFP

SFP modules: single/multi-mode fiber, 1or 2 core

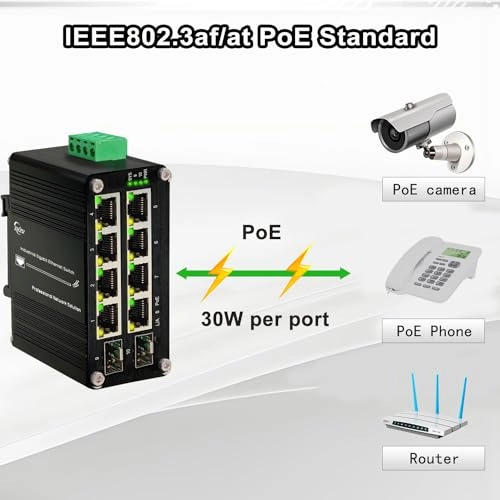

PoE Standard: IEEE802.3af/at

Backplane bandwidth: 20Gbps

Packet Buffer Memory: 2.75Mbits

Packet Length: 9Kbytes

MAC Address Table: 4K

Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

Packet forwarding rate: 14.88Mpps

Input Power(PoE): 48~57VDC, Redundant Power (4-pin Terminal Block)

Power PIN Assignment: 4,5(+);7,8(-) (Alternative B Mode)

Certification: CE,FCC

Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inches

Packages:

1* 10-port PoE Ethernet switch

1* 4-pin terminal block

1* User Manual
