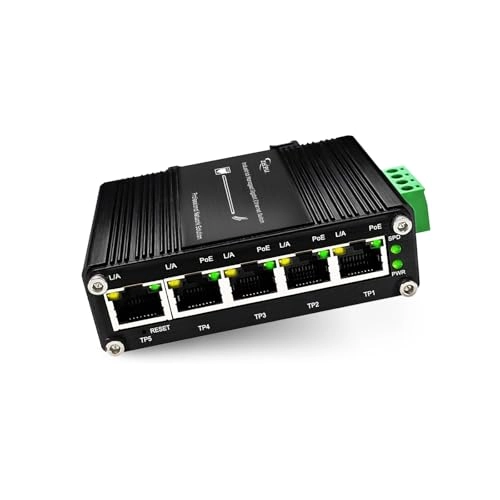

Xinyuanhuitong Managed 5-port PoE

Overview:

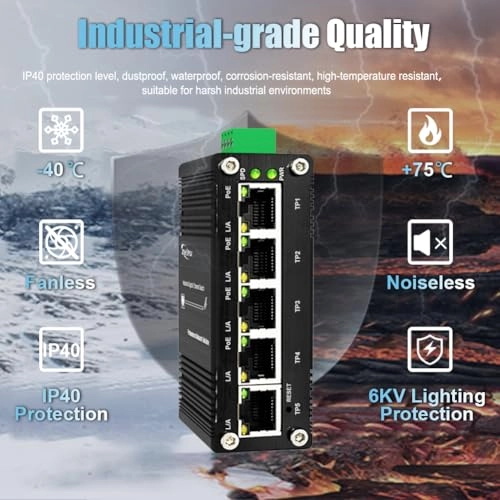

The industrial Managed Ethernet Switch has 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. It also has Easy Network Management, supporting easy Web management function. Meanwhile, Industrial IP40 Al case can make it work under the hashed environment (-40°C to 80°C). It’s a good choice for outdoor installations and industrial applications.

Features:

1. 5 x 10/100/1000BASE-T ports

2. 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)

3. 12~48V DC wide range power input

4. Supports 802.3x Flow control

5. Supports WEB Management

6. Supports DIN-Rail and Wall-mount installation

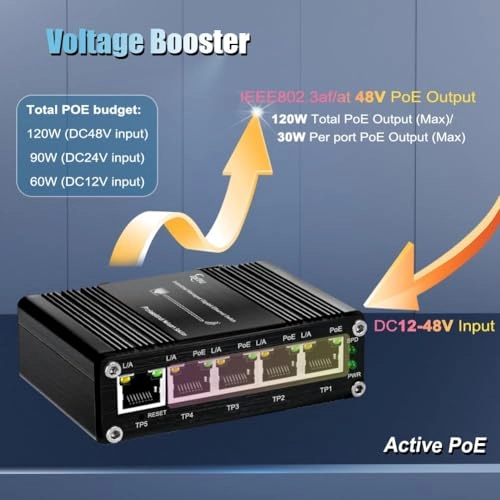

7. Up to 120-watt PoE budget (48V DC),

8. Up to 90-watt PoE budget (24V DC),

9. Up to 60-watt PoE budget (12V DC)

10. -40°C to 80°C (-40°F to 176°F) operating temperature

Specification:

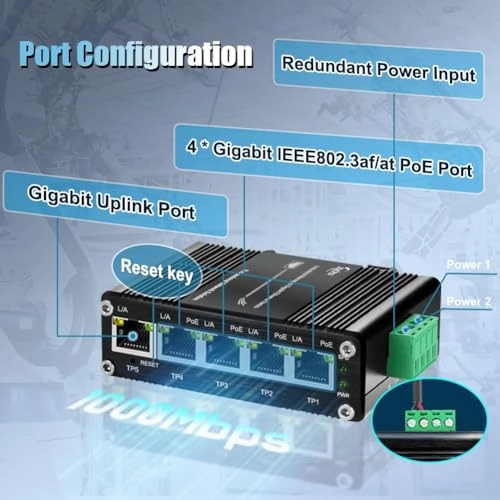

1) Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

2) 4 ports with 802.3at PoE+ (Ports 1 to 4)

3) PoE Standard: IEEE802.3af/at

4) Backplane bandwidth：20Gbps

5) Packet Buffer: 1Mbits

6) Packet Length: 10Kbytes

7) MAC Address Table: 8K

8) Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)

9) WEB Management Features：System Settings，Port Management，VLAN Settings, QOS Settings, Loop Detectin, Saving Settings

10) Management Function: WEB

11) Input Power: 12~48VDC (Terminal Block)

12) Power PIN Assignment: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)

13) Dimensions (WxDxH): 95 x 70 x 29 mm

Packages:

1* Industrial Managed 5 Ports PoE Ethernet Switch

1* Wall Mount Bracket

1* 4-pin terminal block

1* User Manual
