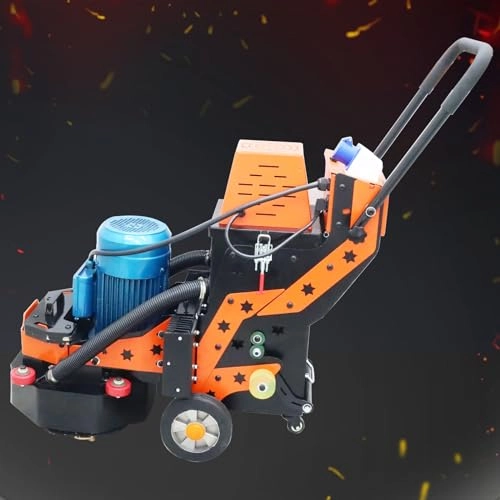

WYDDDARY CD239843 - 4kw

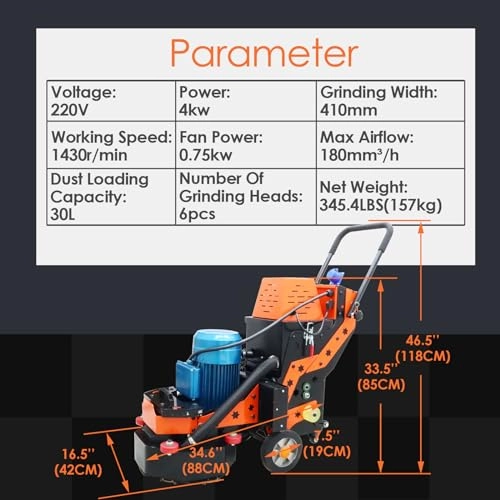

Parameter

Voltage: 220V

Power: 4kw

Fan Power: 0.75kw

Number Of Grinding Heads:6pcs

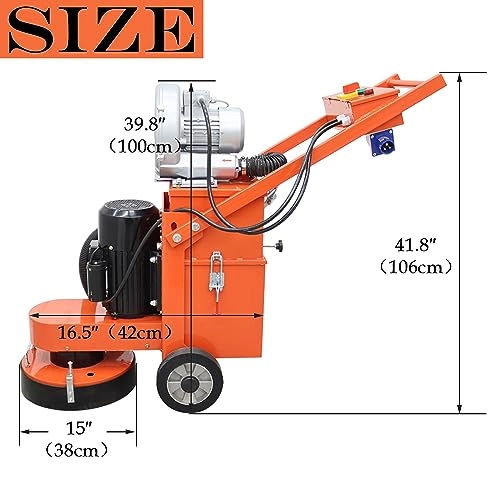

Grinding Width: 410mm

Max Airflow: 180mm³/h

Working Speed: 1430r/min

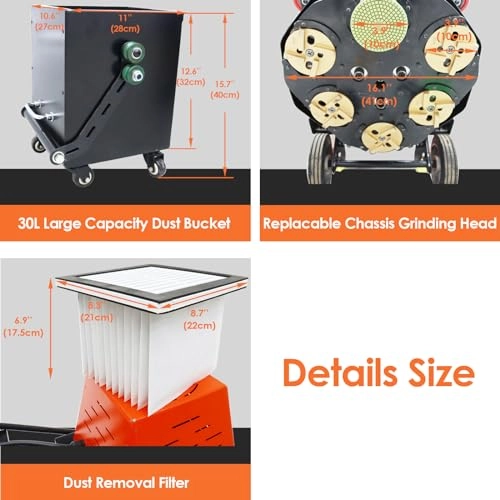

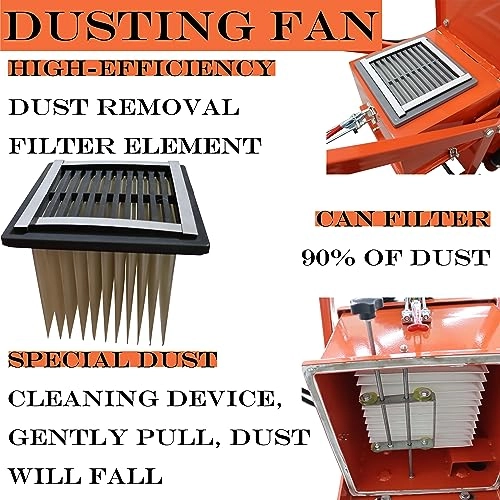

Dust Loading Capacity: 30L

Net Weight: 345.4LBS(157kg)

Note:

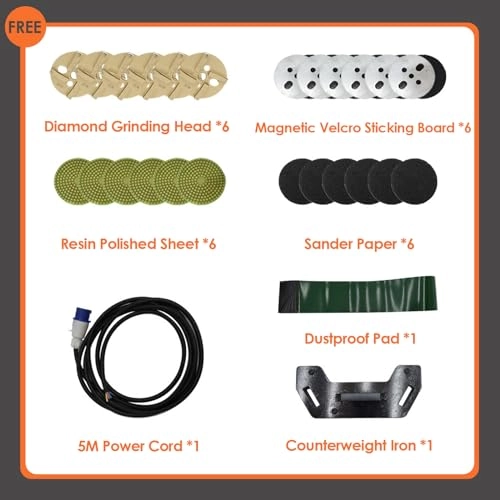

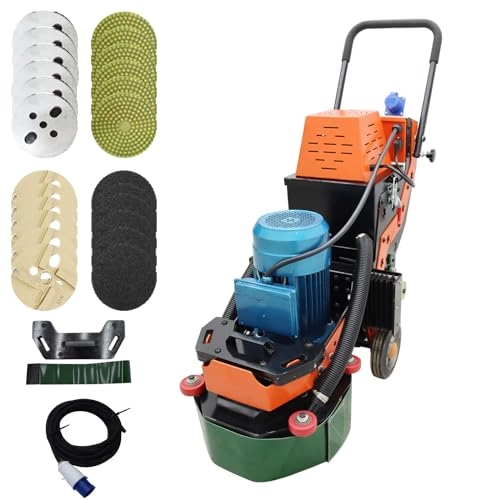

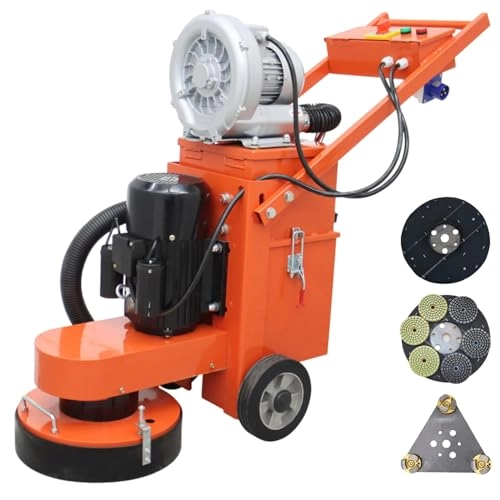

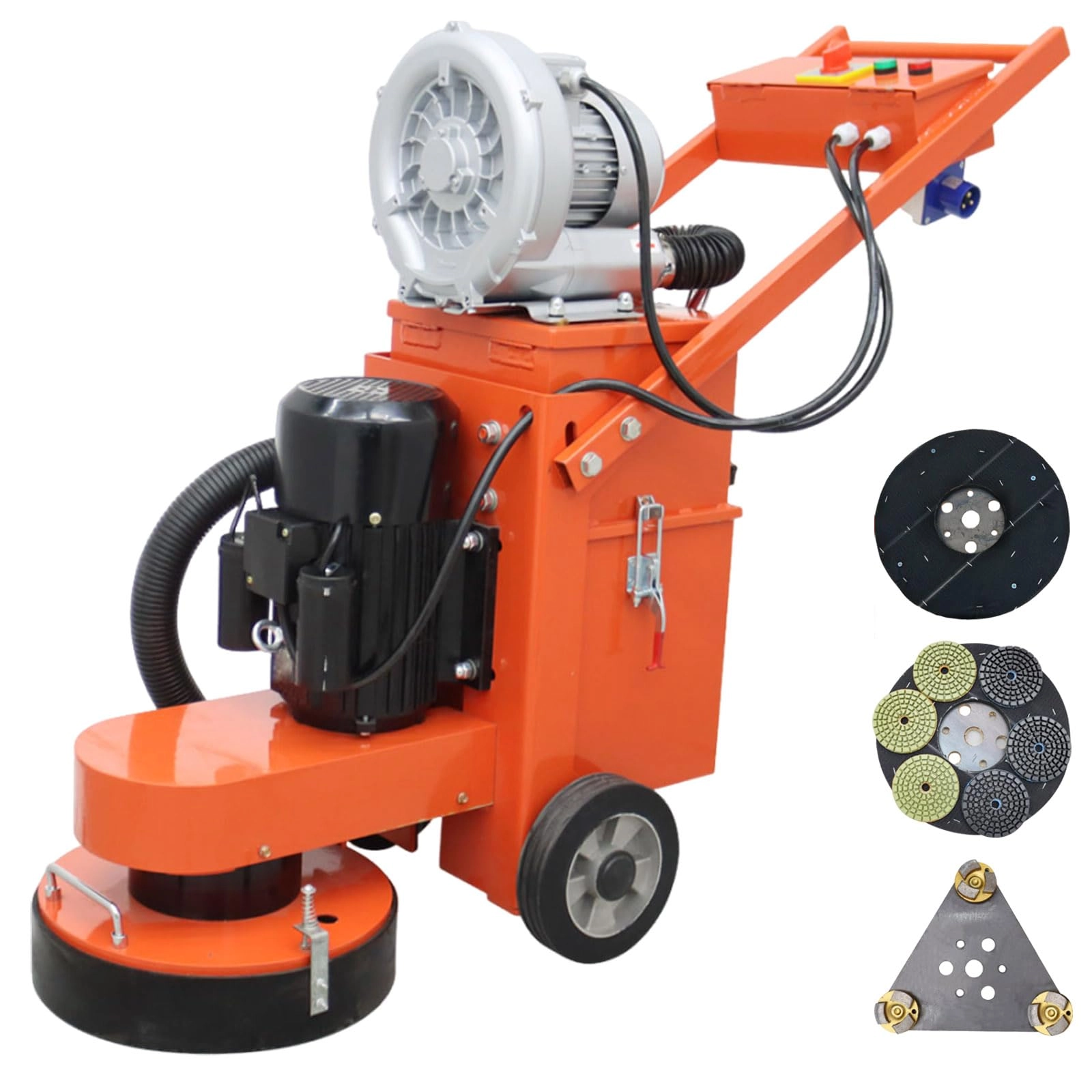

1.Different grinding head is suitable for different ground, this machine comes with a set of diamond grinding head, resin grinding disc, sandpaper, grinding special ground.

2.The machine does not have a plug and does not come with an air switch. Please prepare your own air switch connection.

3.Give away 5 meters of wires. The maximum length of the machine can be connected to 90 meters of wires. The specification is three-core wires. Each wire should not be less than 6 mm ² of pure copper wire. The wire must be connected to the air switch, and the rated current of the air switch is about 63A.

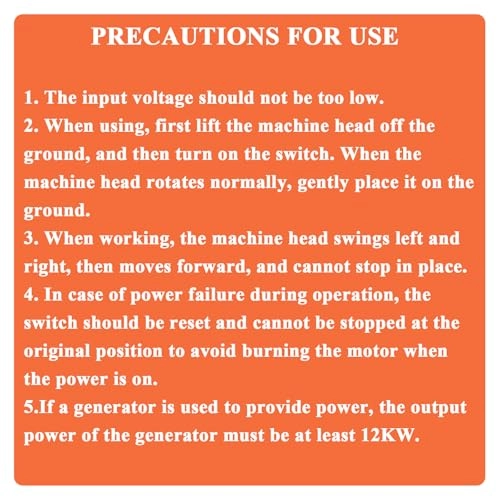

Precautions for use

1. The input voltage should not be too low.

2. When using, first lift the machine head off the ground,and then turn on the switch. When the machine head rotates normally, gently place it on the ground.

3. When working, the machine head swings left and right,then moves forward, and cannot stop in place.

4. In case of power failure during operation, the switch should be reset and cannot be stopped at the original position to avoid burning the motor when the power is on.

5. If a generator is used to provide power, the output powerof the generator must be at least 12KW.
