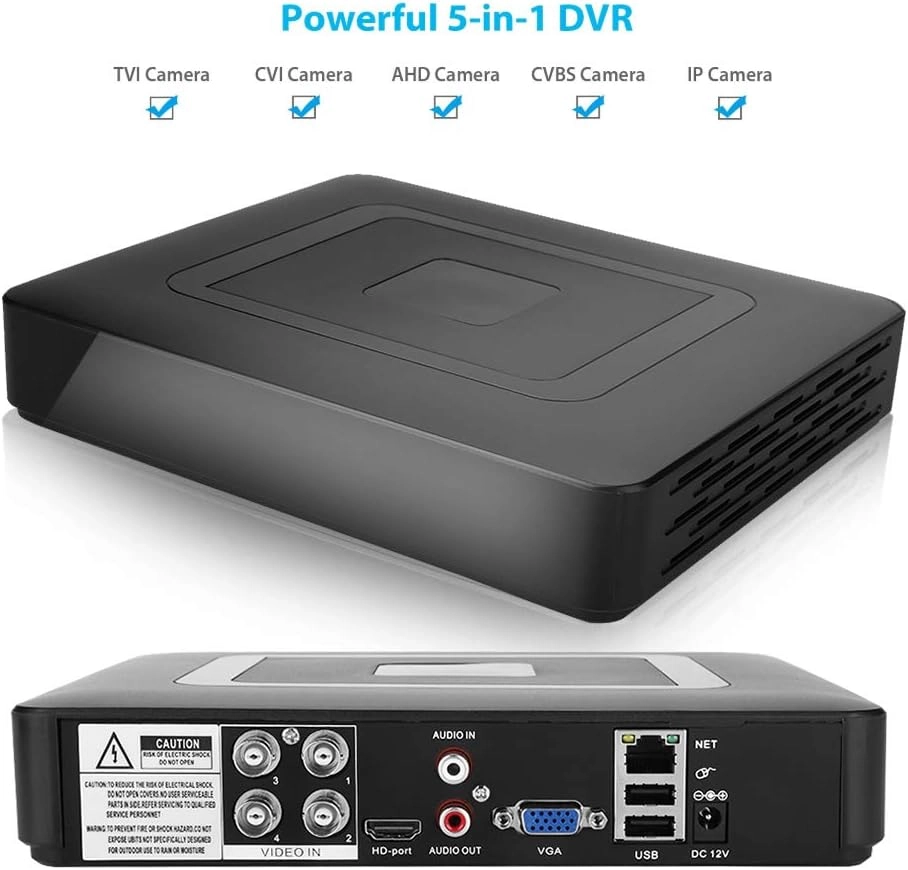

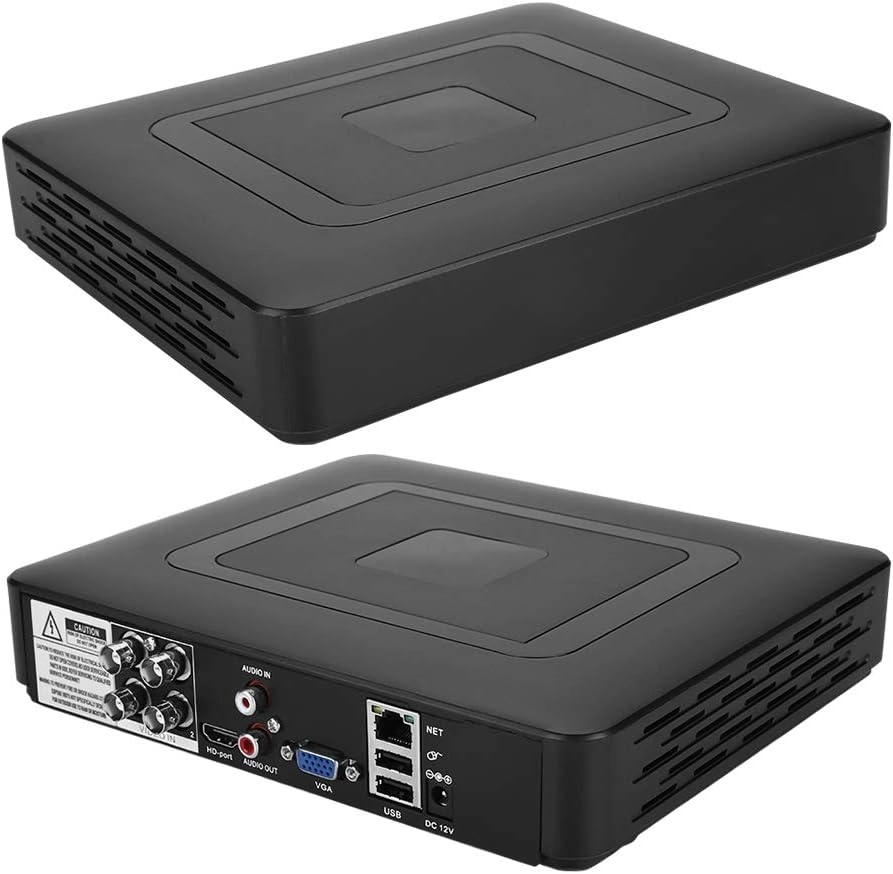

woobles 4-Channel Video Recorder - maximum 8TB 4CH

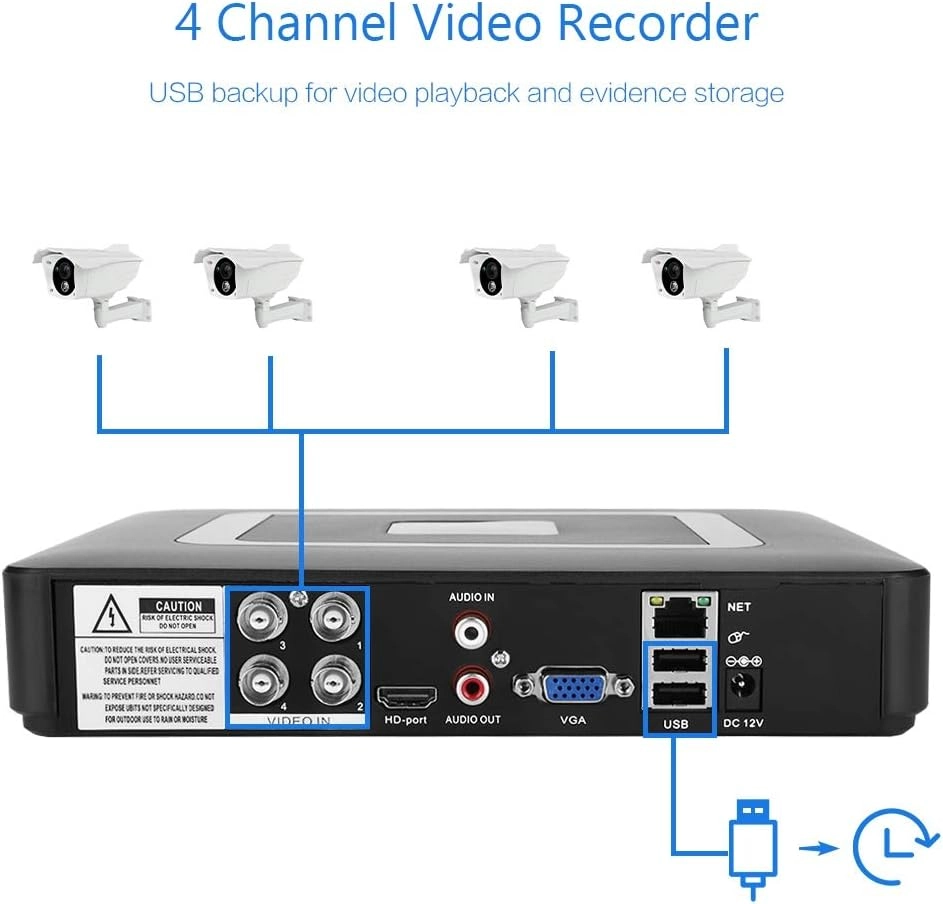

Specification: Operating system: embedded for LINUX operating system Operation interface: 16bit true color GUI interface supports mouse operation Video standard: PAL / NTSC (1080P) Image coding: H.264 (High Profile); JPEG Playback quality: 1080P / 720P / D1 / HD1 / CIF Coding ability: 4 * 1080N (12FPS) Decoding ability: 4 * 1080N (12FPS) Multimode video input AHD: 4 * 1080NH (25FPS) / 4 * 720PAHDM (25fps) / 4 * 960H HVR: 2 * 720P (AHD) + 2 * 720P (IP) NVR: 8 * 1080P / 16 * 960P / 8 * 720P Audio compression: G711A Two-way conversation: support Record mode: Manual > Alarm > Motion Detection > Timing Local playback: 1-4ch synchronous playback (take local analog input as an example, others depend on the selected channel mode) (support 4CH to play together) Video search: time / date / event / channel search Occupy video: CIF 4~5G / day * channel, D1 16~20G / day * channel; Audio: 691.2M / day * channel Video storage: local hard drive / network Video input: 4CH BNC (1.0Vp-p, 75Ω) Video output: 1CH VGA, CH HDMI Audio input: 1CH RCA Audio output: 1CH RCA (200-3000mV, 5KΩ) Network port: RJ45 10M/100M adaptive Ethernet port USB port: 2 * USB2.0 Package list: 1 * Video Recorder 1 * Mouse 1 * Instruction Manual 1 * Power Adapter
