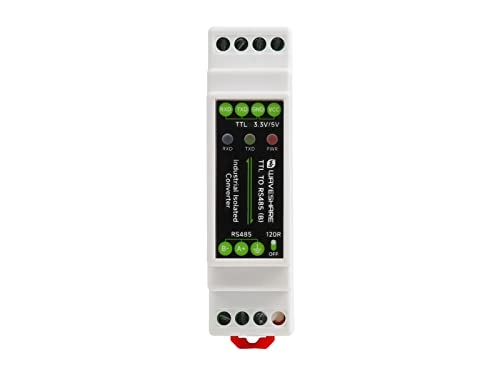

TTL TO RS485 (B) - screw terminal RS485 output terminal 15KV ESD protection

Waveshare TTL TO RS485 (B) - screw terminal RS485 output terminal 15KV ESD protection

Name: Waveshare TTL TO RS485 (B) - screw terminal RS485 output terminal 15KV ESD protection
Brand: Waveshare
SKU: 810249
Availability: InStock

Best offer

AED

80⁷⁰

Key Features

Weight: 60g
Batteries included: No

Specifications

Weight & dimensions

Weight

60 g

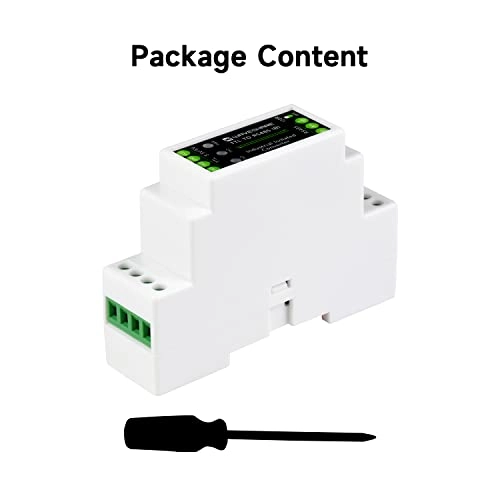

Packaging content

Batteries included

✗

Product Details

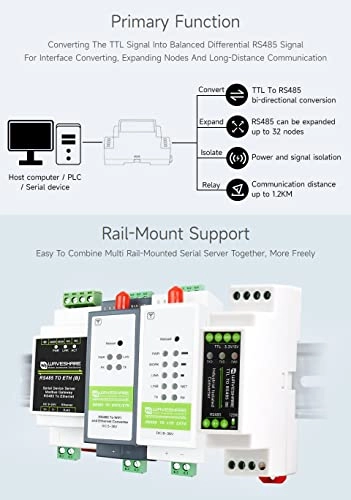

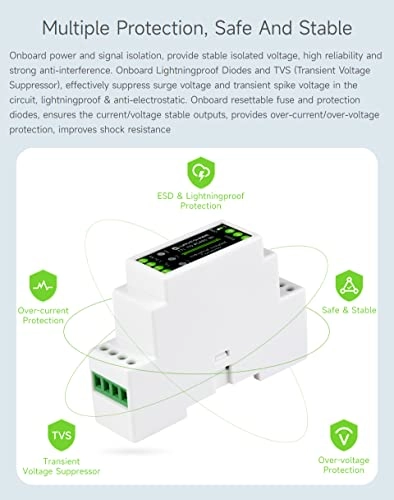

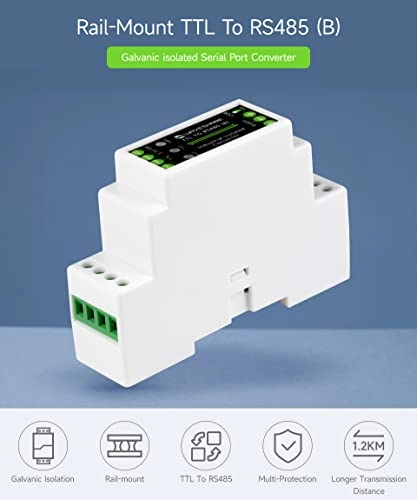

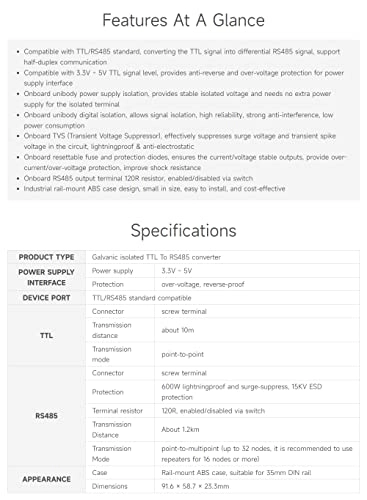

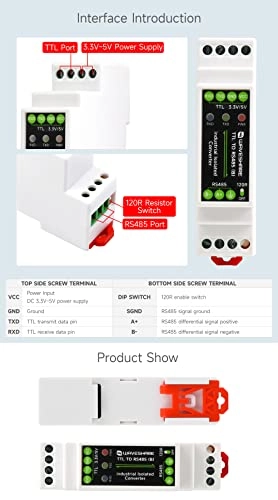

Specifications PRODUCT TYPE：Galvanic isolated TTL To RS485 converter POWER SUPPLY INTERFACE： Power supply：3.3V ~ 5V Protection：over-voltage, reverse-proof DEVICE PORT：TTL/RS485 standard compatible TTL： Connector：screw terminal Transmission distance：about 10m Transmission mode：point-to-point RS485： Connector：screw terminal Protection：600W lightningproof and surge-suppress, 15KV ESD protection Terminal resistor：120R, enabled/disabled via switch Transmission Distance：About 1.2km Transmission Mode ：point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) APPEARANCE： Case：Rail-mount ABS case, suitable for 35mm DIN rail Dimensions：91.6 × 58.7 × 23.3mm User Manual waveshare.com/wiki/TTL_TO_RS485_(B)?amazon Support If you require technical support, please go to the Support page in the wiki and open a tickets.
