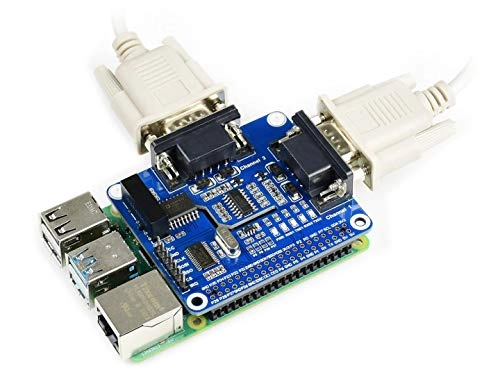

Waveshare 2-Channel Isolated RS232 HAT

Name: Waveshare 2-Channel Isolated RS232 HAT
Brand: Waveshare
SKU: 810123
Availability: InStock

Best offer

AED

106⁷⁹

Key Features

Weight: 60g
Batteries included: No

Specifications

Weight & dimensions

Weight

60 g

Packaging content

Batteries included

✗

Product Details

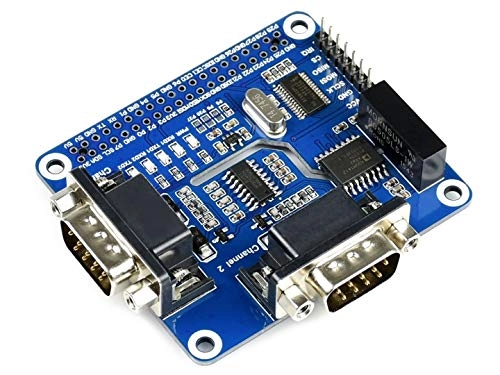

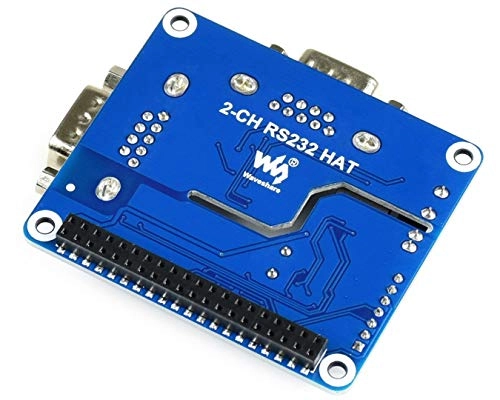

Overview This is a 2-channel isolated RS232 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3232 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc. It is easy to control the 2-channel RS232 via SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation. Features

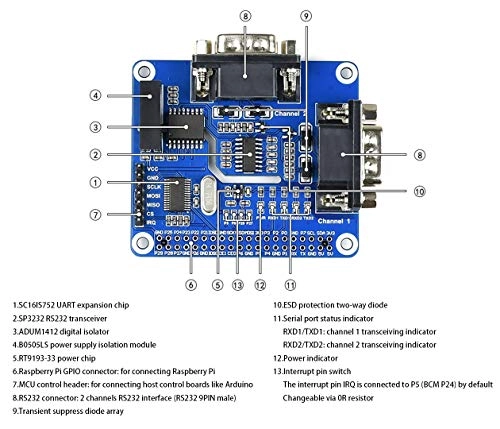

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
Onboard LEDs for indicating the power and transceiver status
Breakout SPI control pins, for connecting with host control boards like Arduino
Comes with development resources and manual (examples in C and Python)

Specifications

UART expansion chip: SC16IS752
RS232 transceiver: SP3232
Communication interface: SPI
Data rate: 300 ~ 921600 bps
Operating voltage: 3.3V / 5V
Dimensions: 65mm × 56.5mm
Mounting hole size: 3.0mm

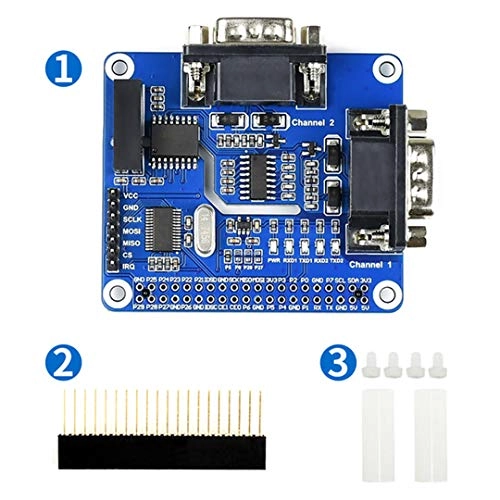

Package Content 1.2-CH RS232 HAT x1 2.2x20PIN female pinheader x1 3.RPi screws pack (2pcs) x1 Note: this HAT doesn't come with any serial cable, you may also want to pick up the following cables for easy use: 1)Serial Cable Dual Female Crossover: for connecting RS232 devices with male connector, OR for self transceiving test of the HAT's 2 channels RS232 2) Serial Cable Male to Female Straight Through: for connecting RS232 devices with female connector Note: the Raspberry Pi and serial cables are NOT included.
