Trendnet TE100-S8 8-ports

Product Description

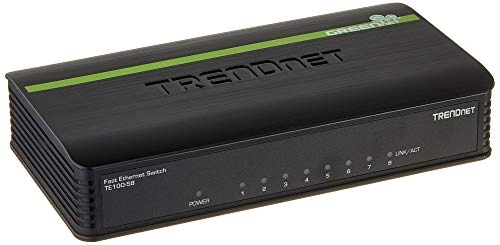

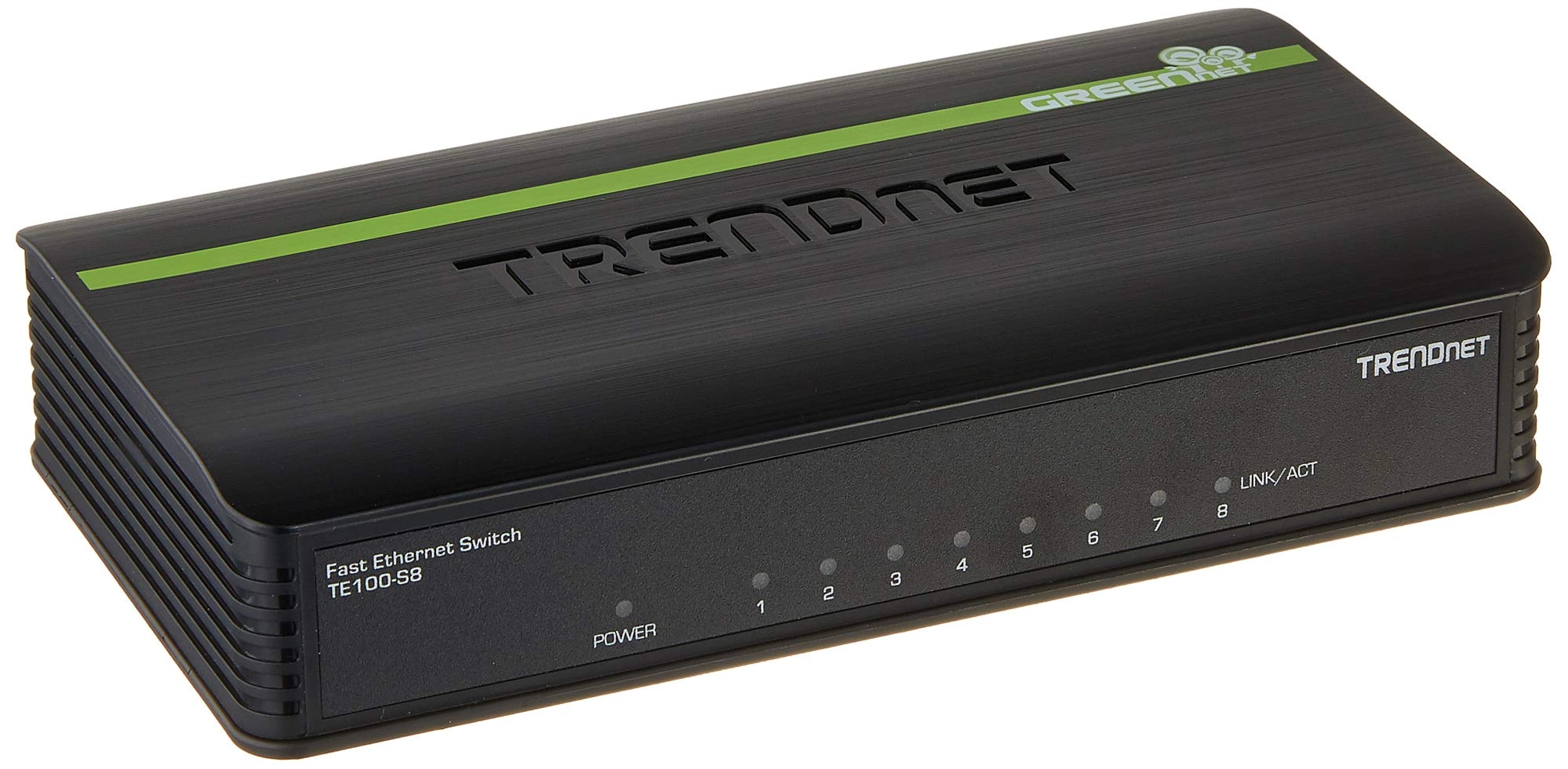

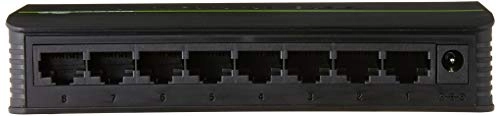

TE100-S8 10/100Mbps Fast Ethernet Switch

TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

Overview – TE100-S8

• Build a reliable Fast Ethernet network in minutes

• Easy Plug and Play installation

• Auto-Negotiation optimizes networking speeds for all 8 ports

Standards:

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3x Flow Control

Network Media:

• Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm

• Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm

Networking Solution

enlarge

TRENDnet Unmanaged Fast Ethernet Switch Comparison Chart

Model TE100-S5 TE100-S8 TE100-S50g TE100-S80g TE100-S16g TE100-S24g Product Title 5-Port 10/100Mbps Fast Ethernet Switch 8-Port 10/100Mbps Fast Ethernet Switch 5-Port 10/100Mbps GREENnet Switch 8-Port 10/100Mbps GREENnet Switch 16-Port 10/100Mbps GREENnet Switch 24-Port 10/100Mbps GREENnet Switch Ports10/100Mbps 5x 8x 5x 8x 16x 24x FeaturesForwarding Capacity 1Gbps 1.6Gbps 1Gbps 1.6Gbps 3.2Gbps 3.2Gbps Data Ram Buffering 64Kbytes 64Kbytes 384Kbits 768Kbits 1.25Mbits 1.25Mbits 802.3x Flow Control ✔ ✔ ✔ ✔ ✔ ✔ MAC address entries 2k 1k 1k 1k 8k 8k Enclosure Material Plastic Plastic Metal Desktop Metal Desktop Metal Rackmount Metal Rackmount GREENnet ✔ ✔ ✔ ✔

Package Contents:

• TE100-S8

• Multi-Language Quick Installation Guide

• Power Adapter (5V DC, 800mA)

Set Contains:

• 8-Port 10/100Mbps Switch
• Multi-Language QuickInstallation Guide
• Power Adapter (5V DC, 800mA)
