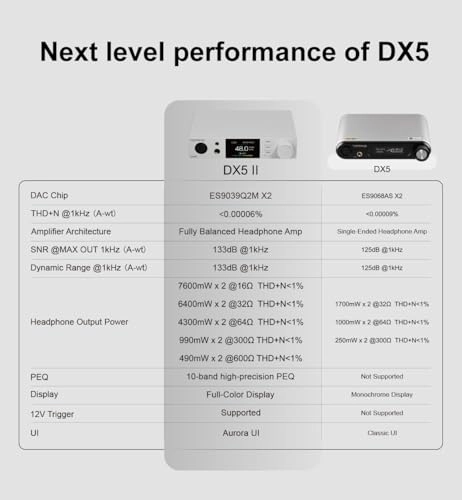

Specs
DAC chip: Dual ES9039Q2M
THD+N @1kHz (A-wt): <0.00006%
SNR @MAX OUT 1kHz (A-wt): 133dB
Dynamic range @1kHz (A-wt): 133dB
Output power:
7600mW x2 @16Ω THD+N<1%
6400mW x2 @32Ω THD+N<1%
4300mW x2 @64Ω THD+N<1%
990mW x2 @300Ω THD+N<1%
490mW x2 @600Ω THD+N<1%
PEQ: 10-band, supports PCM up to 192kHz/32bit
Screen: 2.0" full-color with customizable display modes
Headphone outputs: 6.35mm SE, 4.4mm balanced, 4-pin XLR balanced
USB: XMOS XU316, PCM768kHz/32bit, DSD512 native
Bluetooth: QCC5125, supports LDAC/aptX HD/aptX Adaptive/AAC/SBC
UI: Aurora UI, customizable knob and display, bilingual
Dimensions: 7.5in x 6.1in x 1.7in (19.0cm x 15.5cm x 4.4cm)
Contents list
DX5 II
Remote controll
USB cable
6.35mm to 3.5mm Adaptor
AC cable
Bluetooth antenna
Product Information Card
