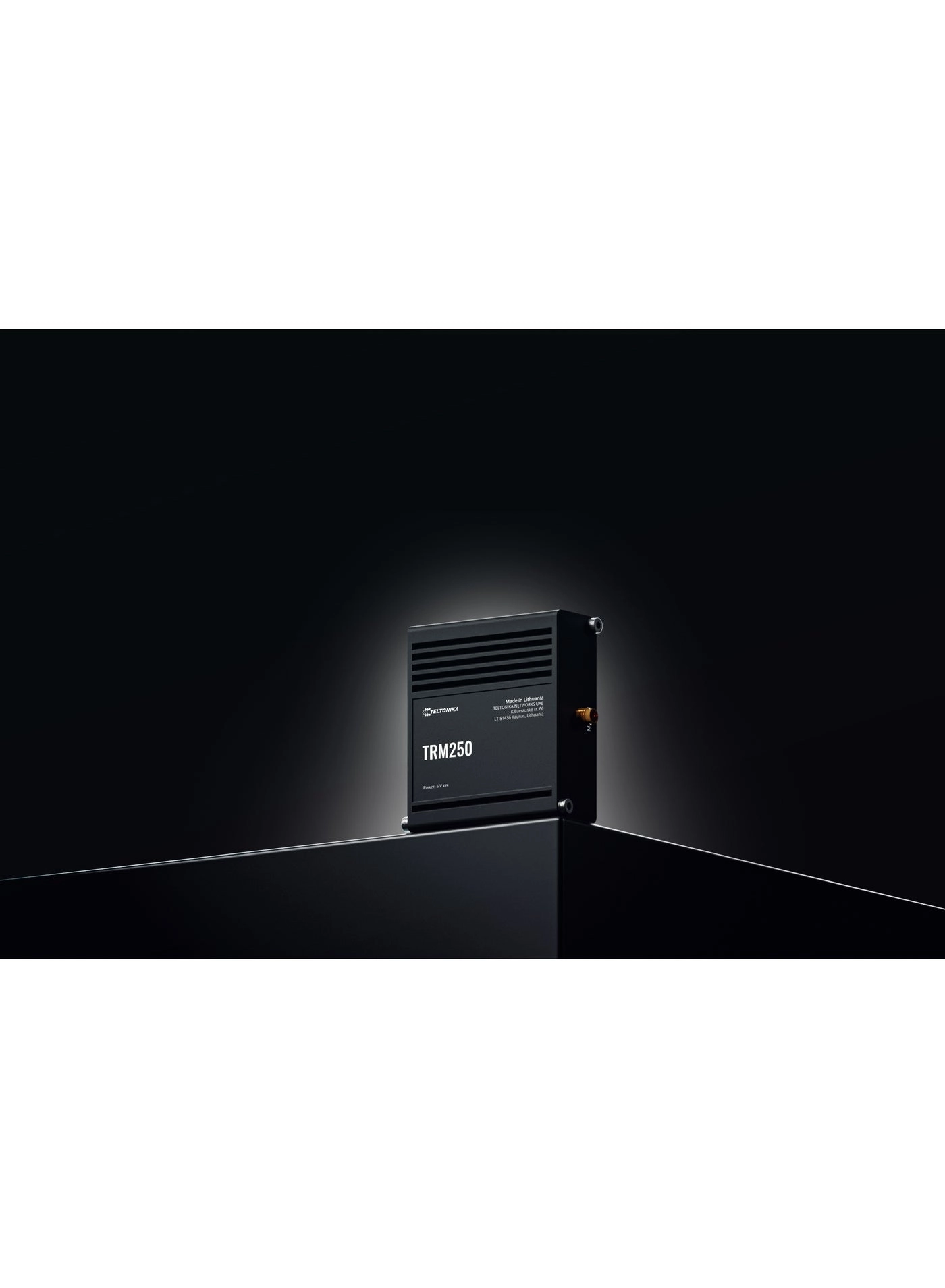

Teltonika TL-TRM250 - 4G/LTE (Cat M1), NB-IoT, 2G

Mobile

• Mobile module
• 4G LTE Cat M1 up to 375 DL/375 UL kbps; Cat NB1 up to 32 DL/70 UL kbps; 2G up to 296 DL/ 236.8 UL kbs
• 3GPP Release
• Release 12

Power

• Connector
• microUSB
• Input voltage range
• 5V - powered via microUSB
• Power consumption
• 3.6 W Max

Physical Interfaces

• Status LEDs
• 1 x Power LED, 1 x Network LED
• SIM
• 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power
• 1x microUSB
• Antennas
• 1 x SMA for LTE

Physical Specification

• Casing material
• Aluminium housing
• Dimensions (W x H x D)
• 74.5 x 25 x 64.5 mm
• Weight
• 130 g
• Mounting options
• DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature
• -40 °C to 75 °C
• Operating humidity
• 10% to 90% non-condensing
• Ingress Protection Rating
• IP30

TRM SOFTWARE

• Management Software
• Windows Connection Manager (NDIS driver)
• USB Driver
• Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
• RIL Driver
• Android 4.x/5.x/6.x/7.x/8.x
• NDIS Driver
• Windows 7/8/8.1/10
• Gobinet Driver
• Linux 2.6/3.x/4.1~4.14
• Linux Driver
• 3.x (3.4 and later)/4.1~4.14

Regulatory & Type Approvals

• Regulatory
• CE, UKCA, EAC, UCRF, Kenya

EMC Emissions & Immunity

• Standards
• Draft EN 303 446-1 V1.1.0
• ESD
• EN 61000-4-2:2009
• Radiated Immunity
• EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

RF

• Standards
• ETSI EN 301 511 V12.5.1
• ETSI EN 301 908-1 V13.1.1
• ETSI EN 301 908-13 V13.1.1

Safety

• Standards
• CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
