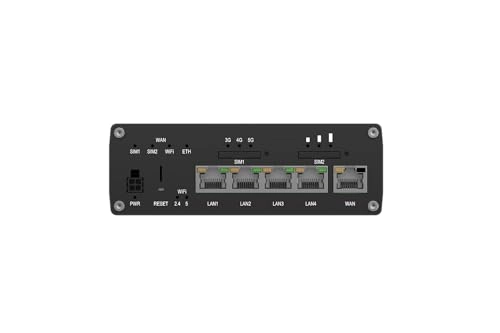

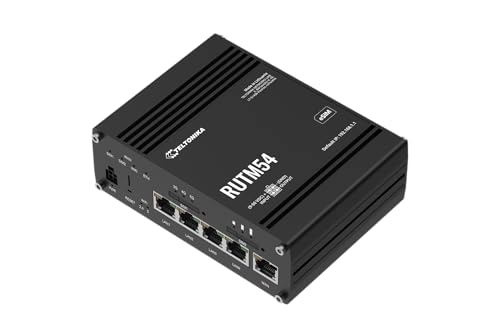

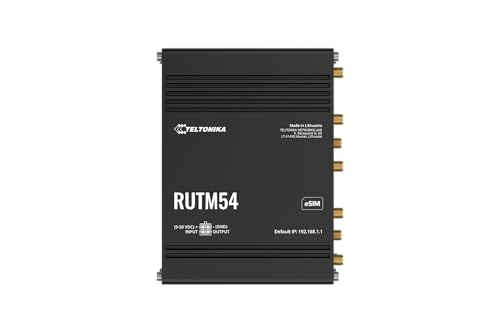

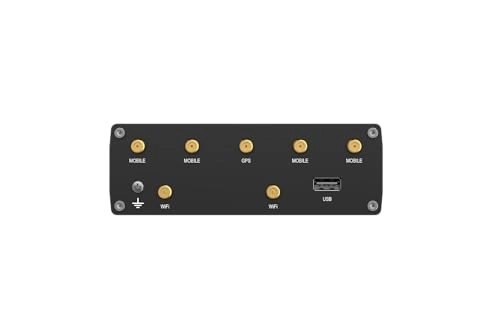

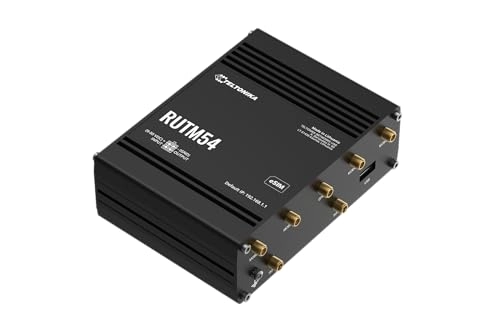

Teltonika RUTM54 - 5G Sub-6 SA/NSA Wi-Fi 5 (802.11ac Wave 2) 867 Mbps

Teltonika RUTM54 – 5G Industrial Router with eSIM, Dual SIM Failover & GNSS

The Teltonika RUTM54 is a rugged industrial cellular router designed for reliable 24/7 connectivity in demanding environments. It supports 5G Sub-6 SA/NSA, backward compatibility to 4G LTE and 3G, and advanced redundancy with 2× SIM slots + consumer eSIM. Ideal for industrial IoT, fleet/transport, remote sites, smart-city, CCTV backhaul, kiosks, and failover internet.

Key Benefits

• Fast 5G performance: 5G Sub-6 SA/NSA with up to 2.5/3.4 Gbps DL and 900/550 Mbps UL (network dependent).
• Always-on connectivity: Dual Mini-SIM with smart auto-switch rules (weak signal, roaming, data/SMS limits, no network, and more).
• Built-in eSIM: Consumer-type eSIM with up to 7 profiles (note: eSIM does not include data plans).
• Wi-Fi 5 Wave 2: Dual-band 802.11ac Wave 2 with up to 867 Mbps, MU-MIMO, mesh/fast roaming features, and up to 150 users.
• Wired networking: 5× Gigabit RJ45 (1× WAN + 4× LAN), plus extensive routing, firewall, and QoS tools.
• Secure remote access: Rich VPN stack including WireGuard, IPsec, OpenVPN, L2TP/PPTP, GRE, and more.
• Industrial power & I/O: 9–50 VDC input, surge & reverse polarity protection, 1× DI + 1× DO, and Passive PoE-in via LAN1 (not IEEE 802.3af/at/bt).
• Location tracking: Multi-constellation GNSS (GPS/GLONASS/BeiDou/Galileo/QZSS) with NMEA support.

Networking, Management & IoT Features

• Routing & failover: Static/dynamic routing (including BGP/OSPF/RIP), policy-based routing, load balancing, and VRRP options.
• Remote management: WebUI, SSH, TR-069, SNMP, MQTT, JSON-RPC, and Teltonika RMS support.
• Industrial protocols: MODBUS TCP (client/server), OPC UA (client/server), DNP3, and DLMS/COSEM.
• Data to Server: Send data via HTTP(S), MQTT, Azure MQTT; supports custom LUA scripting and Modbus MQTT gateway.
• Security: VLAN support, DDOS/scan protections, access control, mobile quota control, web filtering, and TPM 2.0.

Hardware Specs (Highlights)

• Ethernet: 1× WAN + 4× LAN, all 10/100/1000 Mbps
• Wi-Fi: Dual-band 802.11b/g/n/ac Wave 2 (Wi-Fi 5)
• SIM: 2× Mini SIM (2FF) + eSIM
• Antennas: 4× SMA (Mobile), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS)
• USB: 1× USB-A (USB 2.0) for storage/USB-to-serial and more
• CPU/RAM/Storage: MediaTek dual-core 880 MHz, 256 MB DDR3, 16 MB NOR + 256 MB NAND

Rugged Design

• Operating temperature: -40°C to +75°C
• Ingress protection: IP30
• Casing: Anodized aluminum housing
• Size & weight: 132 × 44.2 × 95 mm, 530 g
• Mounting: DIN rail / wall / flat surface (mounting kit required)

What’s in the Box (Standard Package)

• Teltonika RUTM54 Router
• 18 W Power Supply
• 4× Mobile antennas (SMA male)
• 2× Wi-Fi magnetic mount antennas (RP-SMA male, 1.5 m cable)
• 1× GNSS adhesive antenna (SMA male, 3 m cable)
• Ethernet cable (1.5 m), SIM adapter kit, Quick Start Guide

Notes: Passive PoE-in supported via LAN1 (Mode B, 9–50 VDC) and is not compatible with IEEE 802.3af/at/bt. eSIM supports profile operations but does not include data plans.
