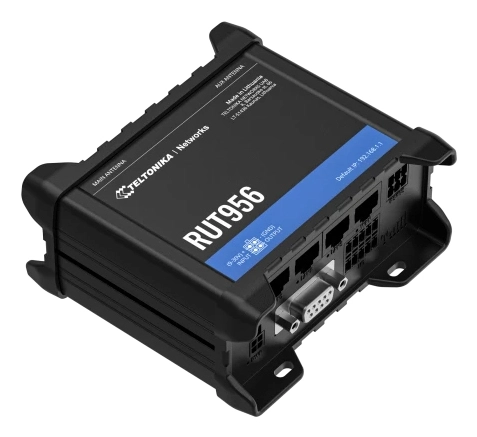

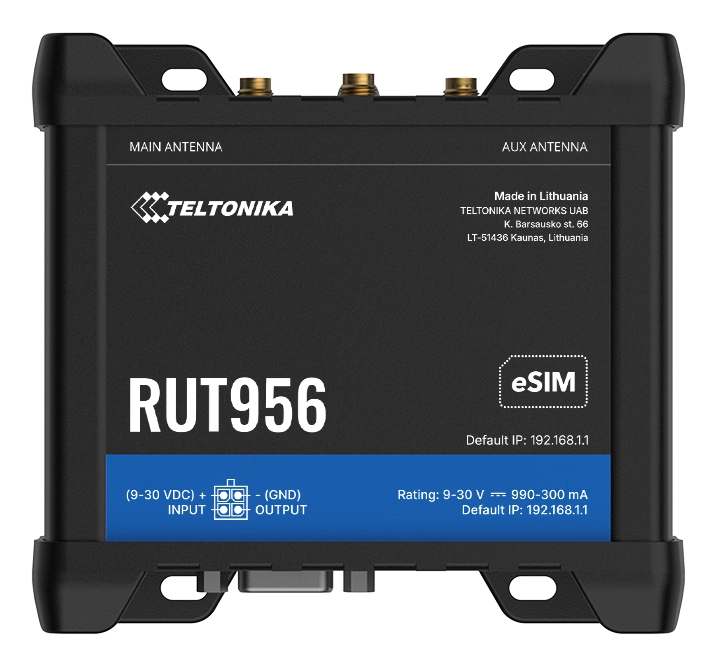

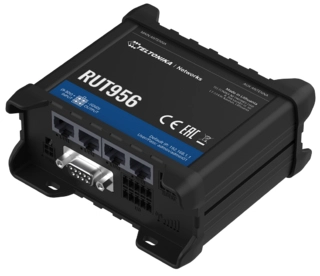

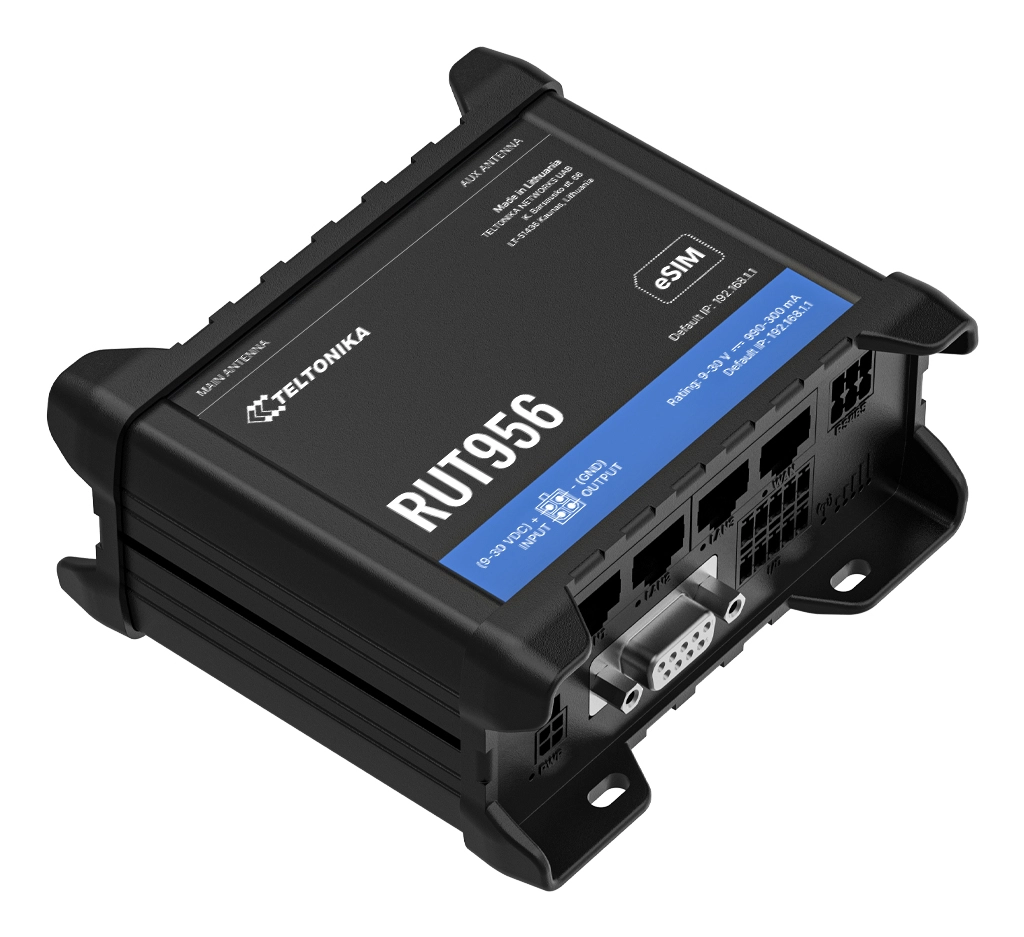

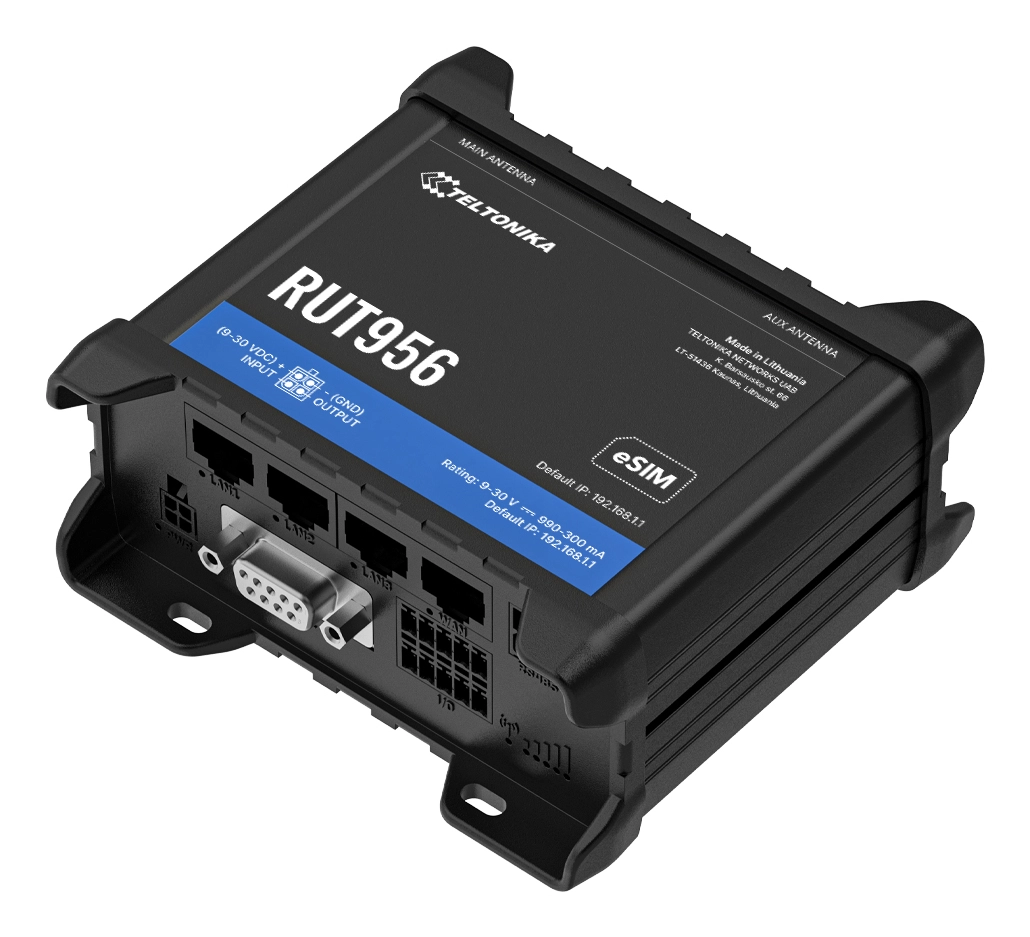

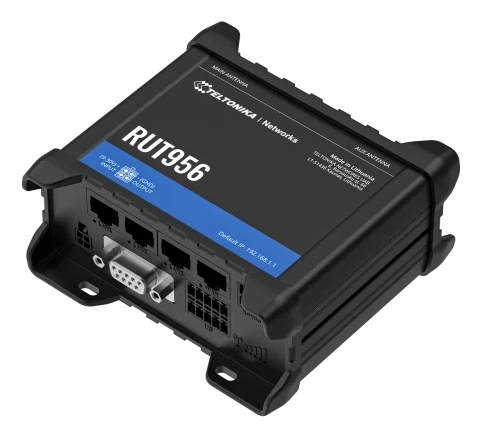

Teltonika RUT956 - 4G LTE IEEE 802.11b/g/n

Name: Teltonika RUT956 - 4G LTE IEEE 802.11b/g/n
Brand: Teltonika
SKU: 864624
Availability: InStock

Best offer

AED

750⁰⁰

AED

950⁰⁰

-21%

Key Features

Firewall: Yes
Embedded GNSS: Yes
Number of SIM cards: 2
Ethernet LAN interface type: Fast Ethernet
DHCP server: Yes
Antenna connector type: SMA/RP-SMA
Mounting: DIN-rail
Port forwarding: Yes
Data network: 2G, 3G, 4G
Device type: Cellular network router
Antenna type: External
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10Mbit/s
4G standard: LTE
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Specifications

Features

Country of origin

Lithuania

Antennas quantity

Quasi-Zenith Satellite System (QZSS)

✓

Galileo

✓

BeiDou

✓

GPS (satellite)

✓

Operating system installed

RutOS

RAM capacity

0.13 GB

Short Message Service (SMS)

✓

Security algorithms

128-bit AES, 192-bit AES, 256-bit AES, AES-CCMP, CAST, DES, EAP-TLS, HTTPS, IPSec, PEAP, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSID, SSL/TLS, TKIP, TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE

Product colour

Black

DHCP server

✓

Antenna connector type

SMA/RP-SMA

Mounting

DIN-rail

Port forwarding

✓

Data network

2G, 3G, 4G

Device type

Cellular network router

Packaging data

Package height

60 mm

Package depth

175 mm

Package width

355 mm

Weight & dimensions

Weight

287 g

Height

50 mm

Depth

100 mm

Width

110 mm

Management features

Web-based management

✓

Power

Power consumption (typical)

7 W

Input voltage

9 - 30 V

Power source type

Software

Firewall

✓

Design

Housing material

Aluminium, Plastic

Reset button

✓

LED indicators

Yes

Market positioning

Industrial

Computer system

Built-in processor

✓

Processor manufacturer

Mediatek

Processor frequency

0.58 GHz

Antenna type

External

Packaging content

Cables included

LAN (RJ-45)

Network

Wi-Fi

✓

Networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u

Supported network protocols

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, MQTT, NTP, PPP, PPPoE, SFTP, SMPP, SMTP, SNMP, SSH, SSL/TLS, TCP, Telnet, UDP, UPNP, VRRP, VXLAN, Wake On Lan (WOL)

Auto MDI/MDI-X

✓

Ethernet LAN data rates

4G standard

LTE

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN

✓

Ethernet LAN interface type

Fast Ethernet

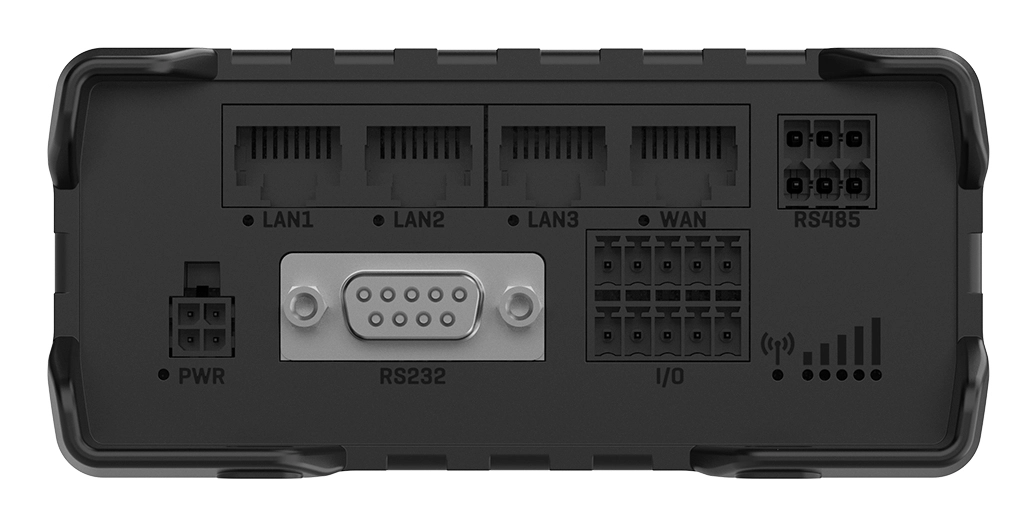

Ports & interfaces

Ethernet LAN (RJ-45) ports

Serial ports quantity

USB port

✓

Serial interface type

RS-232, RS-485

USB 2.0 ports quantity

Number of SIM cards

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Technical details

Compliance certificates

CB, CE, Federal Communications Commission (FCC), RCM, REACH, RoHS, UKCA, UL

Memory

RAM type

DDR2

Navigation

GLONASS

✓

GPS Performance

Embedded GNSS

✓

Security

Network address translation (NAT)

✓

DMZ support

✓

Mobile network

Data transfer rate (LTE) (download)

150 Mbit/s

Data transfer rate (LTE) (upload)

50 Mbit/s

Product Details

// RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities. // Automatic WAN failover ensures solution uptime even if the primary connection is lost. // Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment. // Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications. // Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.

Files

Product Brochure

mmo_107461696_1719311612_4123_10006.pdf

PDF• 1.5 MB
