SxRakiO MK 4 V3 Pro

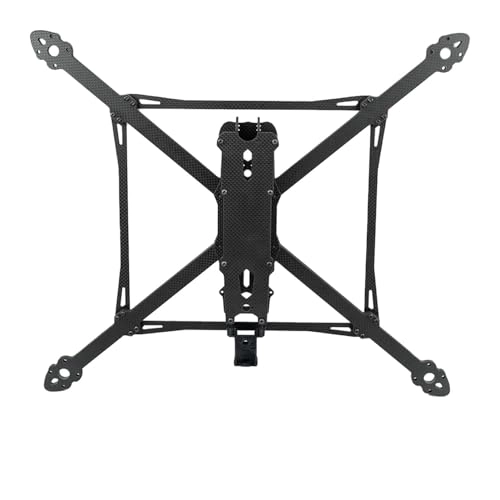

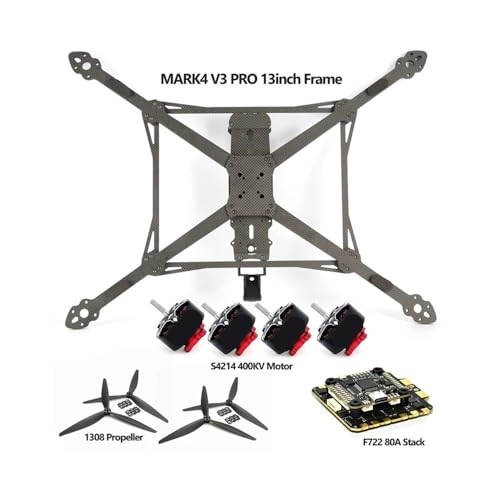

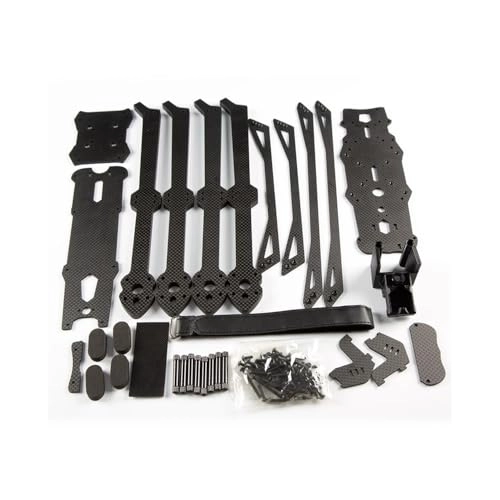

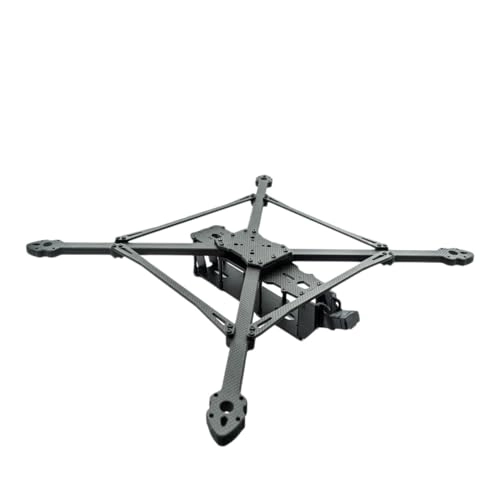

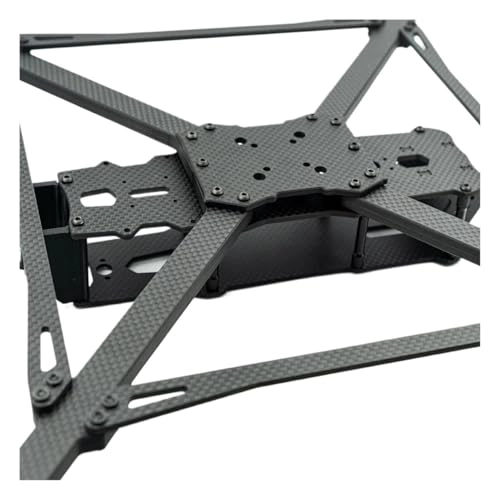

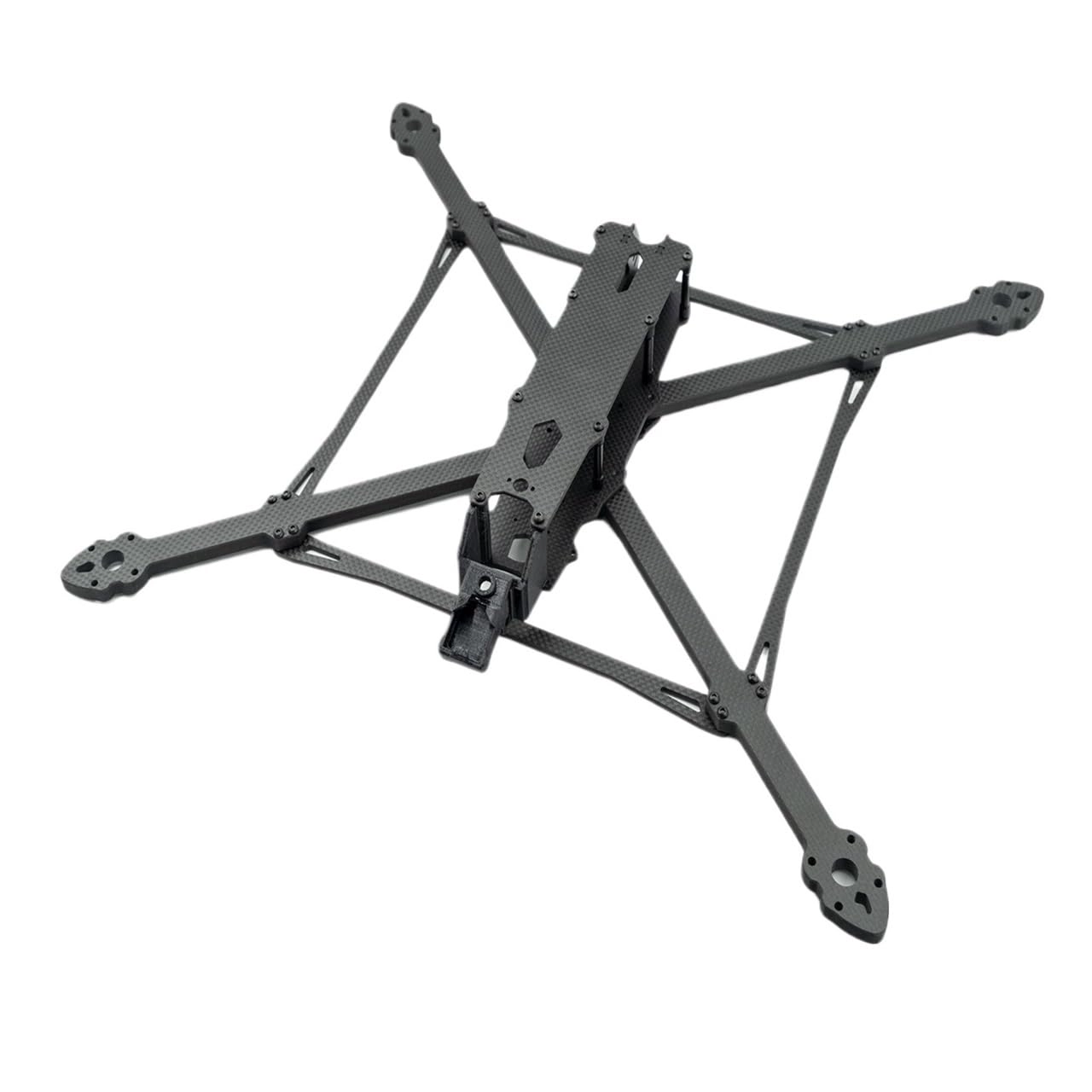

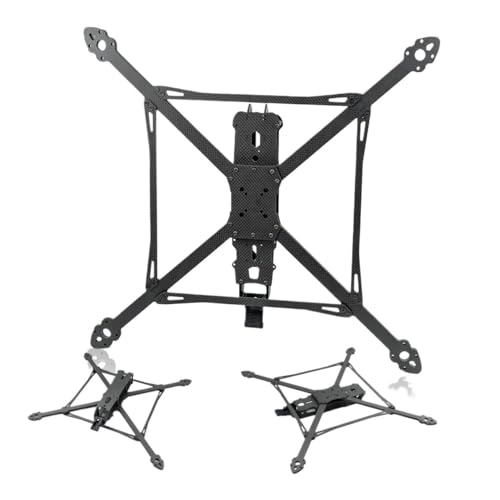

Mark4 V3 Pro 13" 570mm Carbon Fiber Frame: Wheelbase: 570 mm. Top plate thickness: 2.0 mm. Bottom plate thickness: 3.0 mm. Bottom mounting plate thickness: 3.0 mm. Camera sidewall thickness: 2.5 mm. Thickness of the front lip: 2.5 mm. Thickness of rear lip: 2.5 mm. Circumferential rib thickness: 3.0 mm. Arm thickness: 8.0 mm. Weight: 560 g Camera mounting distance: 19 mm. Distance of mounting holes for the flight controller: 20 x 20 mm/30.5 x 30.5 mm. Distance between mounting holes for video transmission: 20 x 20 mm/30.5 x 30.5 mm. Distance between the motor mounting holes: 21 x 21 mm. Motor Screw Holes Diameter:4mm (Please make sure your motor has the correct hole diameter) Compatible with 13" propellers, 4312 and A4320 engines. 15" 680mm Carbon Fiber Frame: Wheelbase: 680mm Top plate thickness: 2.0 mm. Bottom plate thickness: 3.0 mm. Bottom mounting plate thickness: 3.0 mm. Camera sidewall thickness: 2.5 mm. Thickness of front lip plate: 2.5 mm. Thickness of rear lip plate: 2.5 mm. Thickness of peripheral reinforcement ribs: 3.0 mm. Arm thickness: 8.0 mm. Weight: 590 g Camera mounting distance: 19 mm. Distance between mounting holes for flight control: 20 x 20 mm/30.5 x 30.5 mm. Distance between mounting holes for video transmission: 20 x 20 mm/30.5 x 30.5 mm. Distance between the motor mounting holes: 21 x 21 mm. Motor screw holes diameter is 4mm (make sure your motor has a hole diameter of 4mm) Compatible with 15" propellers, 4312 and A4320 engines Quantity: 1 piece. Dimensions: 13 inches / 15 inches
