SxRakiO MARK4 V2

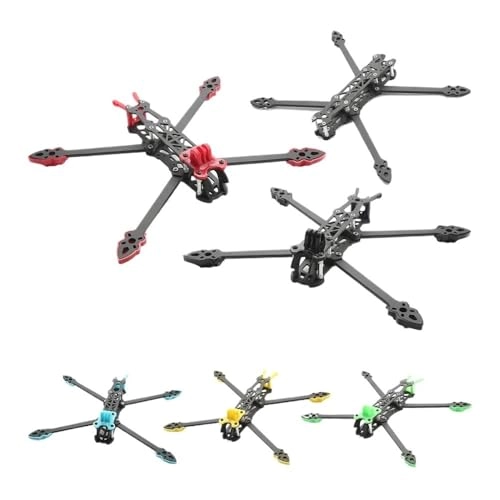

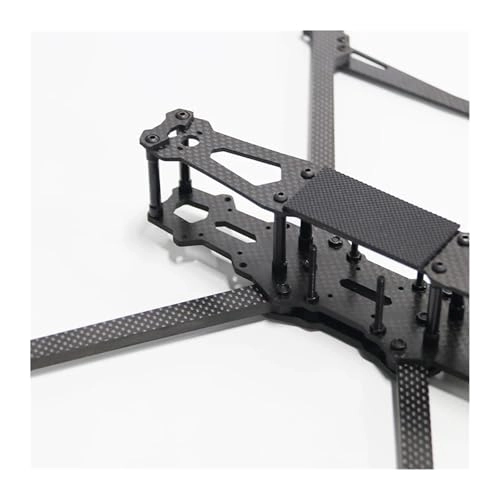

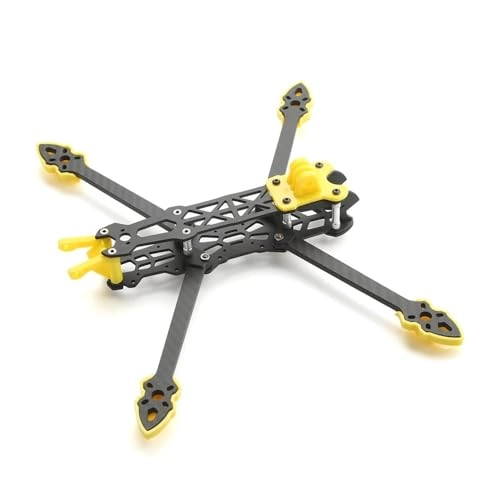

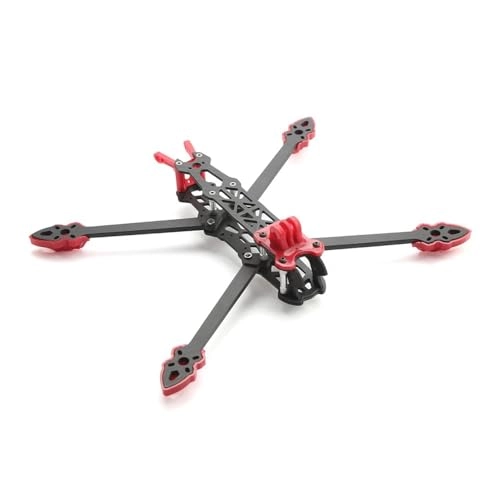

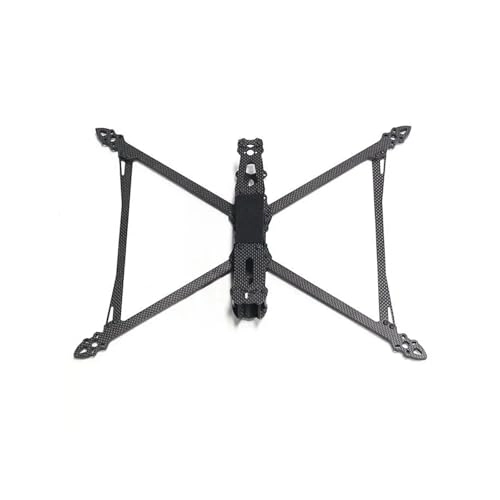

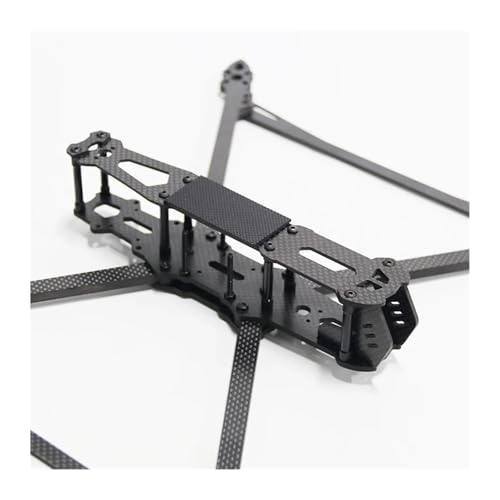

Carbon frame MARK4 V2 8 inches 367 mm 9 inches 387 mm 10 inches 427 mm wheelbase FPV freestyle racing drone frame kit Description: Model: MAK4 V2 8 inches Wheelbase: 367 mm : about 214 grams Bottom plate thickness: 3 mm Top plate thickness: 2 mm thickness: 6 mm side plate thickness: 2.5 mm mounting hole distance: 19 mm Surveying and mapping installation hole distance: 20*20 mm & 305*305 mm Flight installation hole distance: 30.5*30.5 mm Internal space height: 35 mm Motor mounting hole distance: 16*16 mm & 19*19 mm Model: MAK4 V2 9 inches Wheelbase: 387 mm : about 220 grams Thickness Bottom plate thickness: 3mm Top plate thickness: 2mm thickness: 6mm side plate thickness: 2.5mm installation hole distance: 19 mm Surveying installation hole distance: 20*20mm & 305*305mm Flight installation hole distance: 30.5*30.5mm Internal space height: 35mm Motor installation hole distance: 16*16mm & 19*19mm Model: MAK4 V2 10 inches Wheelbase: 427mm : about 227 grams Bottom plate thickness: 3mm Top plate thickness: 2mm thickness: 6mm side plate thickness: 2.5mm installation hole distance: 19 mm Surveying installation hole distance: 20*20mm & 305*305mm Flight installation hole distance: 30.5*30.5mm Internal space height: 35mm Motor mounting hole spacing: 16*16mm & 1919mm The frame uses external nuts instead of carbon plate internal nuts. When fixing, please use external nuts to fix. Is it : No Is it a battery/power supply: No Is it a charger/adapter: No Is it a : No Size: XL10 V6 10'' 420mm Technical parameters: Value 2 Model: HTX075 Applicable models: Fixed-wing aircraft
