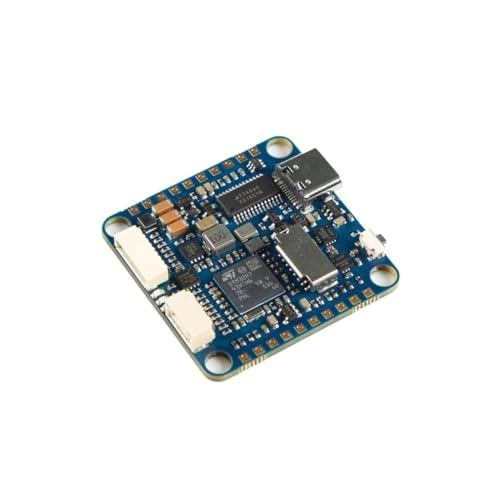

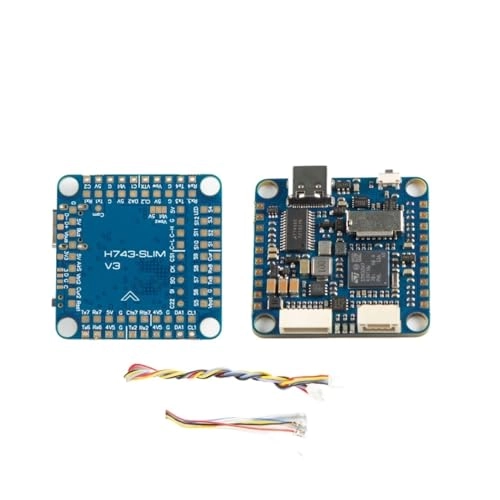

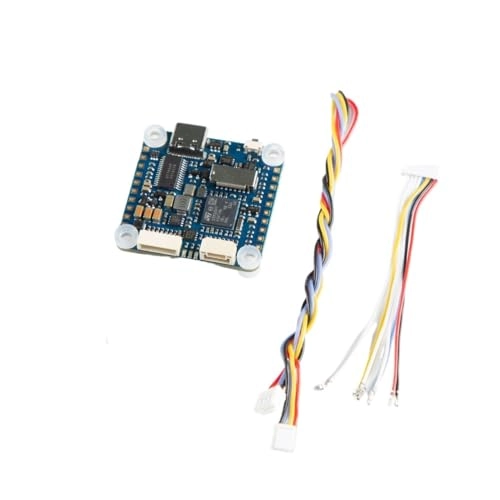

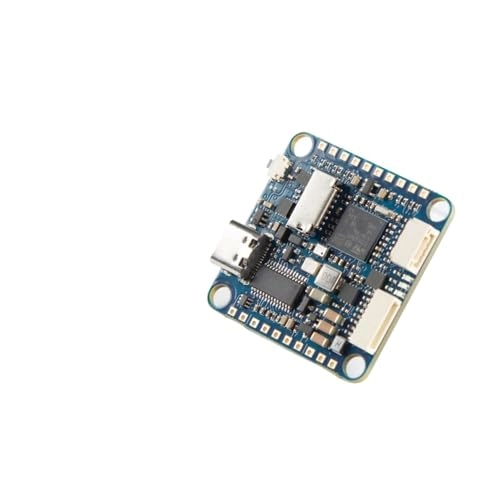

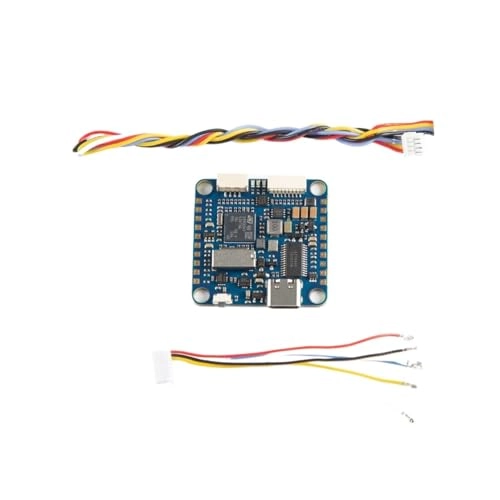

SxRakiO H743 SLIM V3 - STM32H743VIT6 5V 2A BEC 2-8S

FC Specifications MCU: STM32H743VIH6, 480, 1 MB of , 2 MB of Flash Memory V1.0 IMU Development Board: MPU6000 (SPI1) and ICM20602 SPI4 V15 IMU development board: MPU6000 (SPI1) and ICM42605 SPI4 Baro Infineon DPS310 (I2C2) OSD: AT7456E (SPI2) Black box: MicroSD card slot (SDIO) Seven serial ports (1, 2, 3, 4, 6, 7, 8) with built-in reverse function. 13 PWM outputs (included light board) 2 x I2C Ports 1 x CAN port 6 ADC Ports (VBAT, Stream, RSSI, Analog Aerodynamic Speed, Vbat2, Cur2) 3 indicators (blue, red) and 3.3V indicator (red) 1 x SPI3 port USB Type-C port (USB 2.0) 1 x 8-pin JST-SH1.0 Port (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1 x 4-pin JST-GH1.25 port (5V/CAN-H/CAN-L/G) Dual Camera Input Switch 5V/Vbat Filtered Power Switch DFV OSD can be configured via any alternate UART port Power Supply Input Vbat: 6-36V (2-8S LiPo battery) BEC: 5V 2A continuous power supply (max 3A) LDO 3.3V: Max 200mA No built-in current. ADC Vbat2 pin supports maximum 69V (voltage divider: 1K:20K) Standby power consumption: 200mA at 5V in flight, 150mA at 5V in ArduPilot mode Physical parameters Assembled dimensions 30.5 x 30.5mm including 4mm eyelet Dimensions: 36 x 36 x 5 mm. Weight: 7 g Includes: 1 H743-SLIM 6 x M4 to M3 Silicone Grommets 1 x JST-SH1.0 8 Pin 2" 2 x JST-SH1.0 8 Pin Connector 1 x JST-GH-4P CAN Port to JST-GH-4P, 20cm ========= Applicable vehicles: fixed wing aircraft Quantity: 1 piece. : Composite Tools & Consumables: Assembly Four-wheel drive: assembly Wheelbase: Screws Model: H743-SLIM V3 F7
