SxRakiO 75 Pro O4 - 1080p Full HD

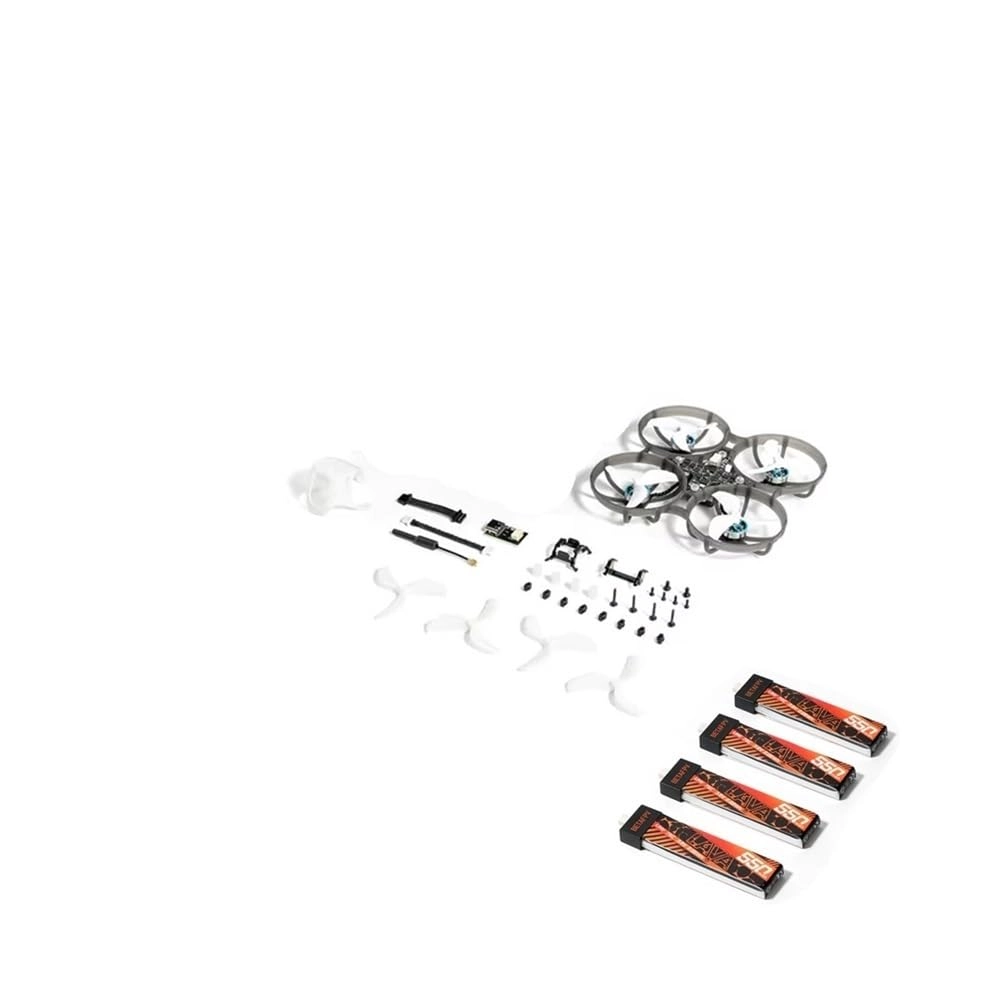

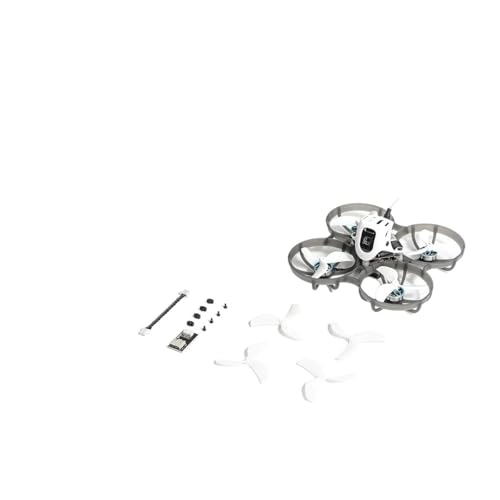

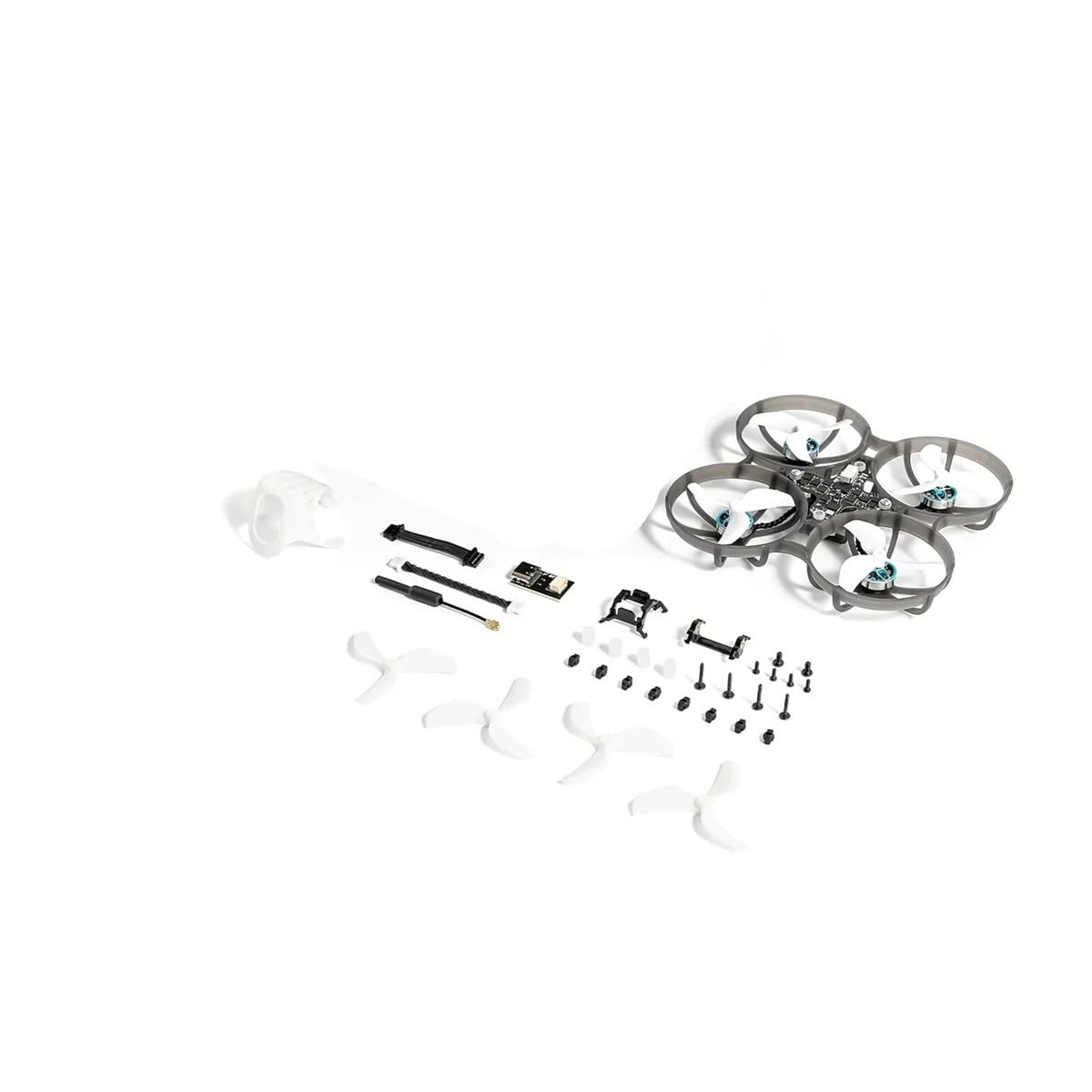

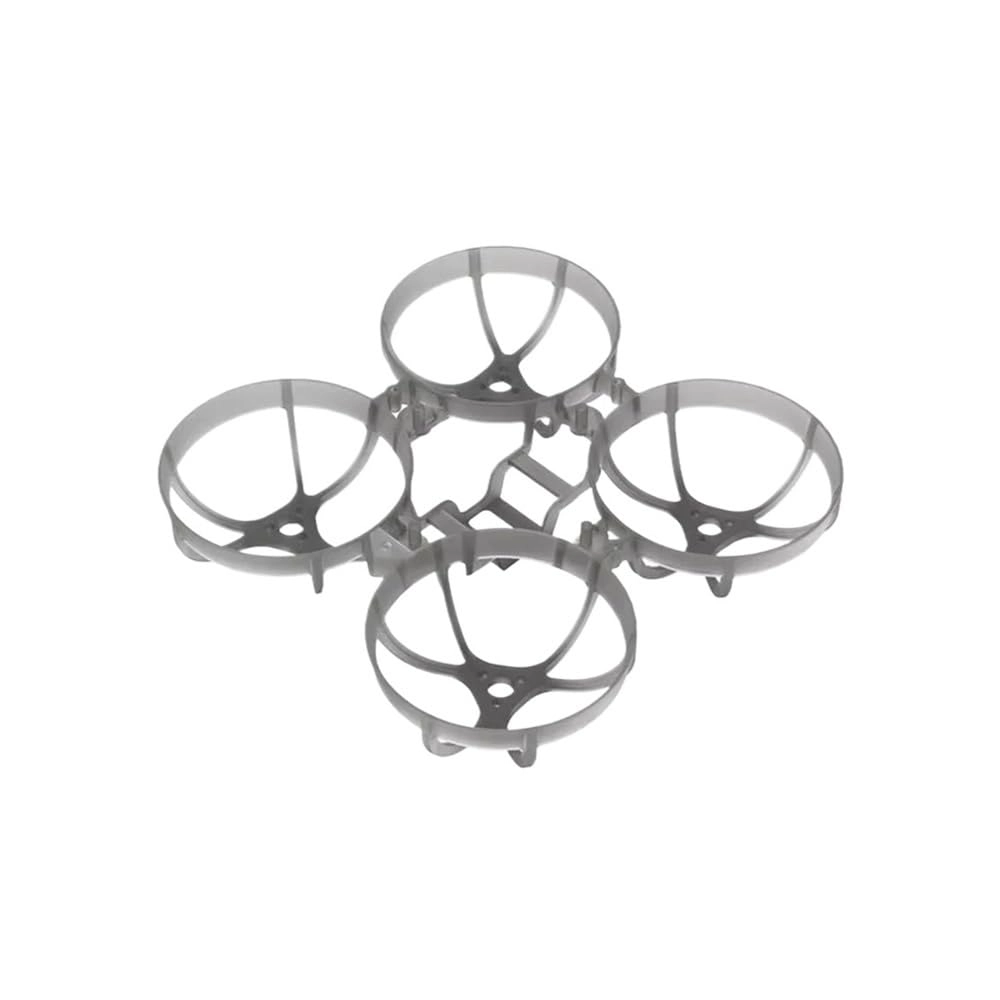

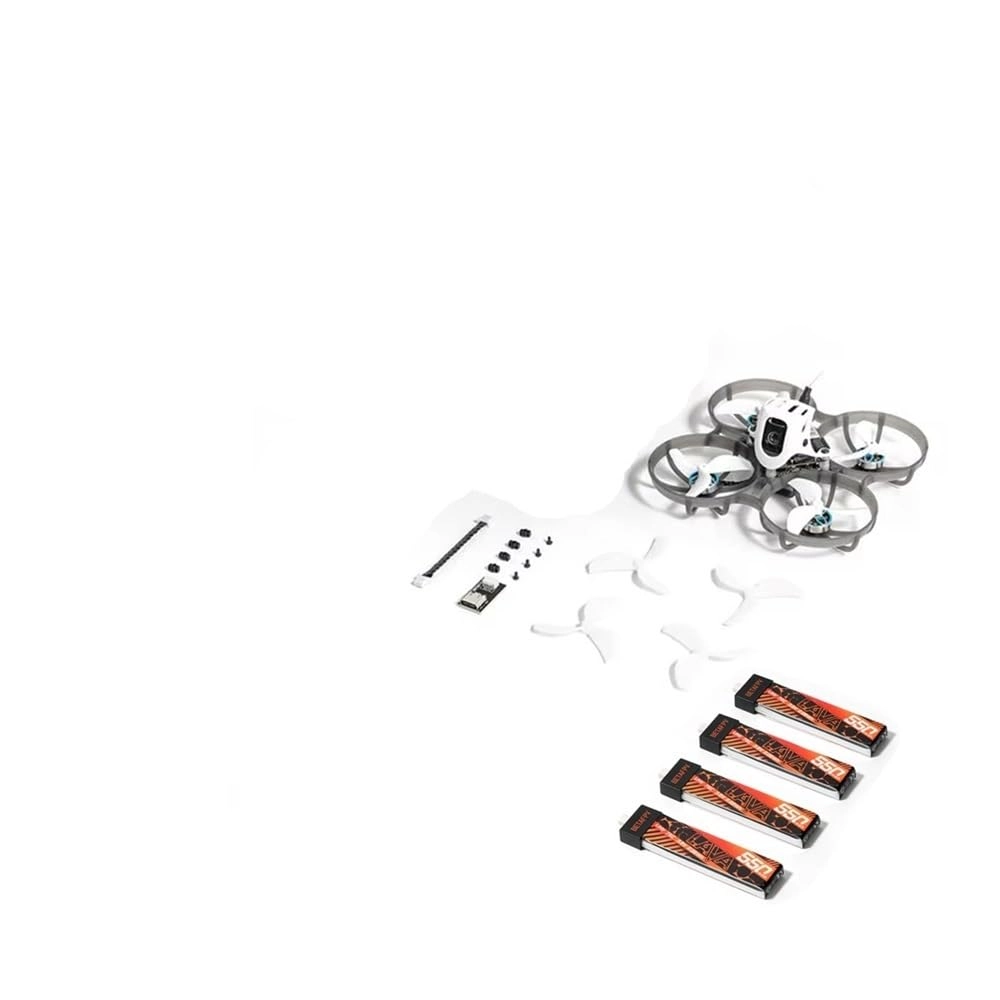

Package Content: Product Name Quantity Frame M80*1 CrazyF405HD Flight Controller Firmware: FLIGHTF4*1 RS1102 KV10000 Brushless Motor 45MMX3 Three Blade Propellers (4 Forward + 4 Back)*4 Air unit DO4*1 Canopy*1 Replacement Parts Specifications: motor Model: RS1102 KV10000 Configuration: 9N12P Stator diameter: 11 mm Stator Length: 2mm Shaft Diameter: 1.5mm Motor dimensions (diameter x length): 13.5 mm x 14 mm Weight (g): 2.8 g Number of lithium batteries: 1-2S propeller Weight: 0.2 g Pitch: 0.9mm Blade diameter: 45 mm Propeller Shaft Thickness: 5mm Propeller Shaft: 1.5mm Flight Controller MCU: STM32F405RGT6 (168, 1MB Flash Memory) Gyroscope: BMI270 (SPI interface) Mounting Hole Size: 25.5mm x 25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Blheli_S 4-in-1 12A Built-in ESC Integrated LRS 2.4G Serial Express Module Built-in BMP280 Barometer Built-in 8 MBp black box Built-in voltmeter, 110 voltmeter scale Built-in ammeter, 470 ammeter scale Built-in 4-in-1 ESC Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous, 15A peak (3 seconds) Factory firmware: ESC V0.19 Firmware Target: ZH-30 Default protocol: DSHOT300 When using a 1S battery and high KV 0702/0802 motors, the starting power should be set to 1100/1200 Built-in 2.4GHz ExpressLRS UART receiver Selectable packet speeds: 25Hz/50Hz/150Hz/250Hz/500 RF frequency: 2.4 GHz Antenna: 31 mm enamelled copper <;12dBm Default firmware version: V3.0.1 Firmware Target: EP 2400 Firmware upgradable via E*LRS configurator Compatible with Air D O4 Weight: air (including chamber module): approximately 8.2 g Transmitter module: 30 × 30 × 6 mm (L × W × H) Camera module: 13.44 × 12.36 × 16.5mm (L × W × H) Camera Length: 50mm Coaxial: 50mm Three in one: 50 mm Operating frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region; refer to local regulations. Transmitter Power (EIRP): <;23 dBm (CE) 5.8GHz: <;30dBm (FCC) <;14dBm (CE) <;30dBm (SR) Real-time image: 1080p, 30/50/60/100fps If you want to use a D FPV remote, first update the flight firmware and add support for the "SBUS" protocol when loading the online firmware. Next, import the default parameter dump file into the CLI command and modify the flight settings as shown below. No hardware modifications are required to the flight controller:
