CPU : i3-7100U Processor (2 cores 4 threads, 2.40 GHz)
Processor Graphics : HD Graphics 620
Color :Black
Memory :DDR4
Storage :1xSSD
Network Card :1000M Gigabit LAN
Audio cards :HD audio
WiFi :2.4G and 5G dual-band WiFi.IEEE 802.11 protocol.Support Bluebooth

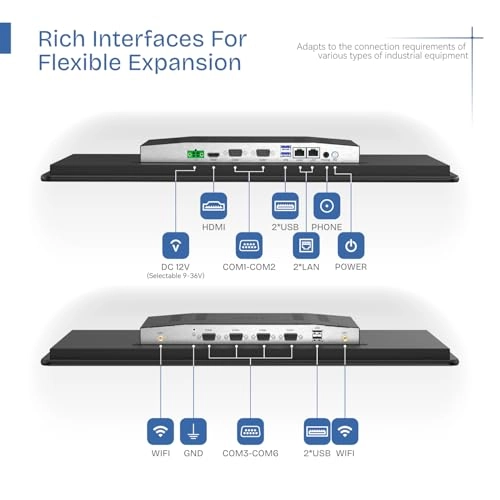

I/O port : POWER+1* DC±12V + GND+WIFI+PHONE+1*HDMI+2*LAN+4*USB+6*COM (COM1~COM2 :2*RS485, COM3~COM6 : 4*RS232 as default. COM1/COM2 selectable to RS232, if you have requirement of RS232, please leave a message to us)
Operating temperature : -5~60°C.
Storage Temperature : -20~75°C
Humidity : 5%-95%
Power :Output 12V-5A
Plug :Default standard according to your country (European standard / American standard / British standard) (If you have requirement for plug, please leave a message to us)
Operating System :Default Windows 10 pro in English version
ATTENTION : Other options, Windows 10 IoT Enterprise LTSC/ Linux or other system, other system language, do leave message on the order.
Display type :LCD screen
Display Size : 21.5 inch
Resolution : 1920×1080
Brightness : 250 cd/m² (Typ.)
Aspect Ratio : 16 :9 (H :V)
Contrast Ratio : 3000 :1
Response Time : ≤20ms(Typ.)

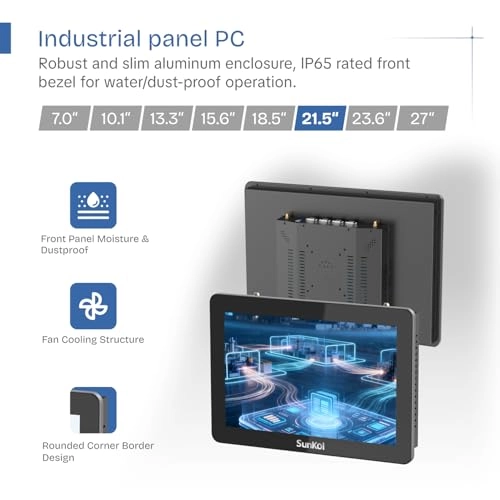

Front Panel Protection Class : IP65

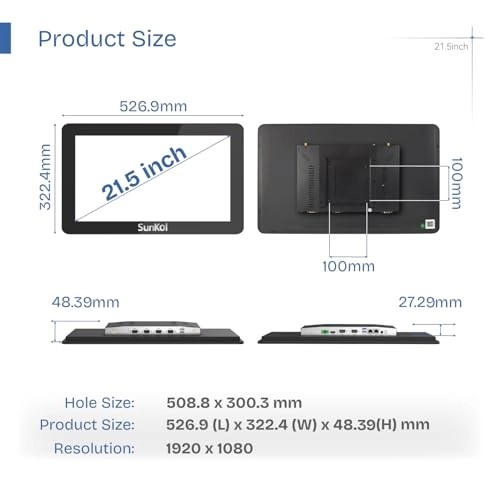

Physical Dimension : 526.9*322.4*48.39mm (L*W*H)
Recommended pre-cutting hole size : 508.8*300.3mm
Installation Method : Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
