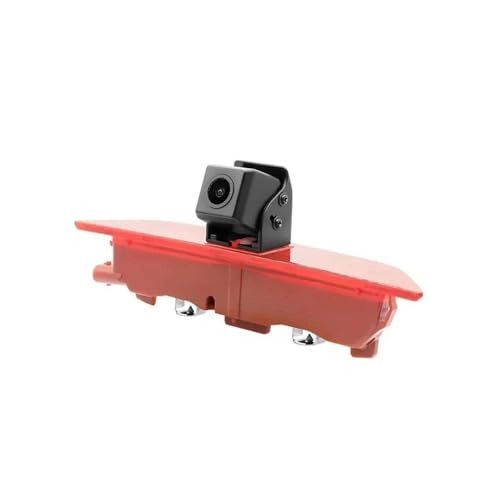

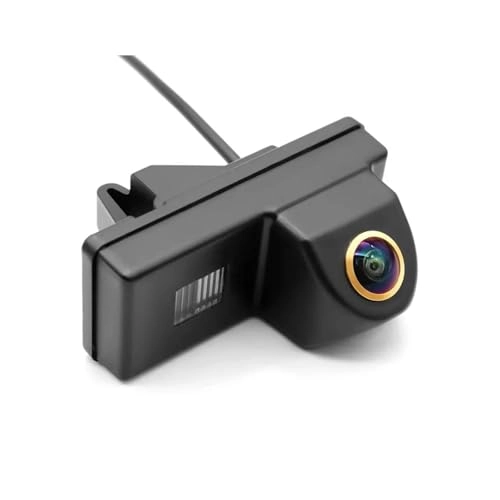

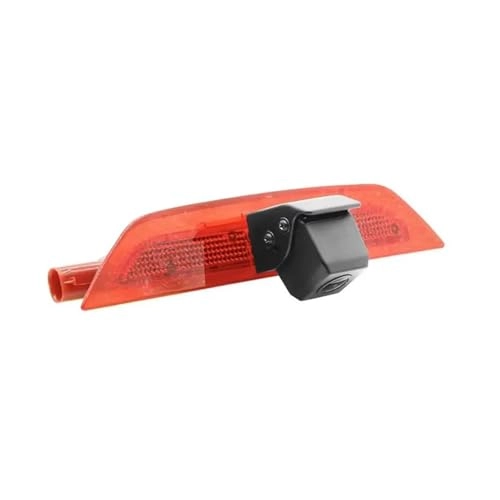

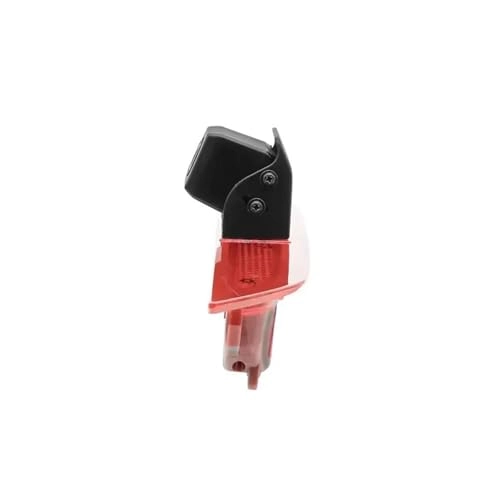

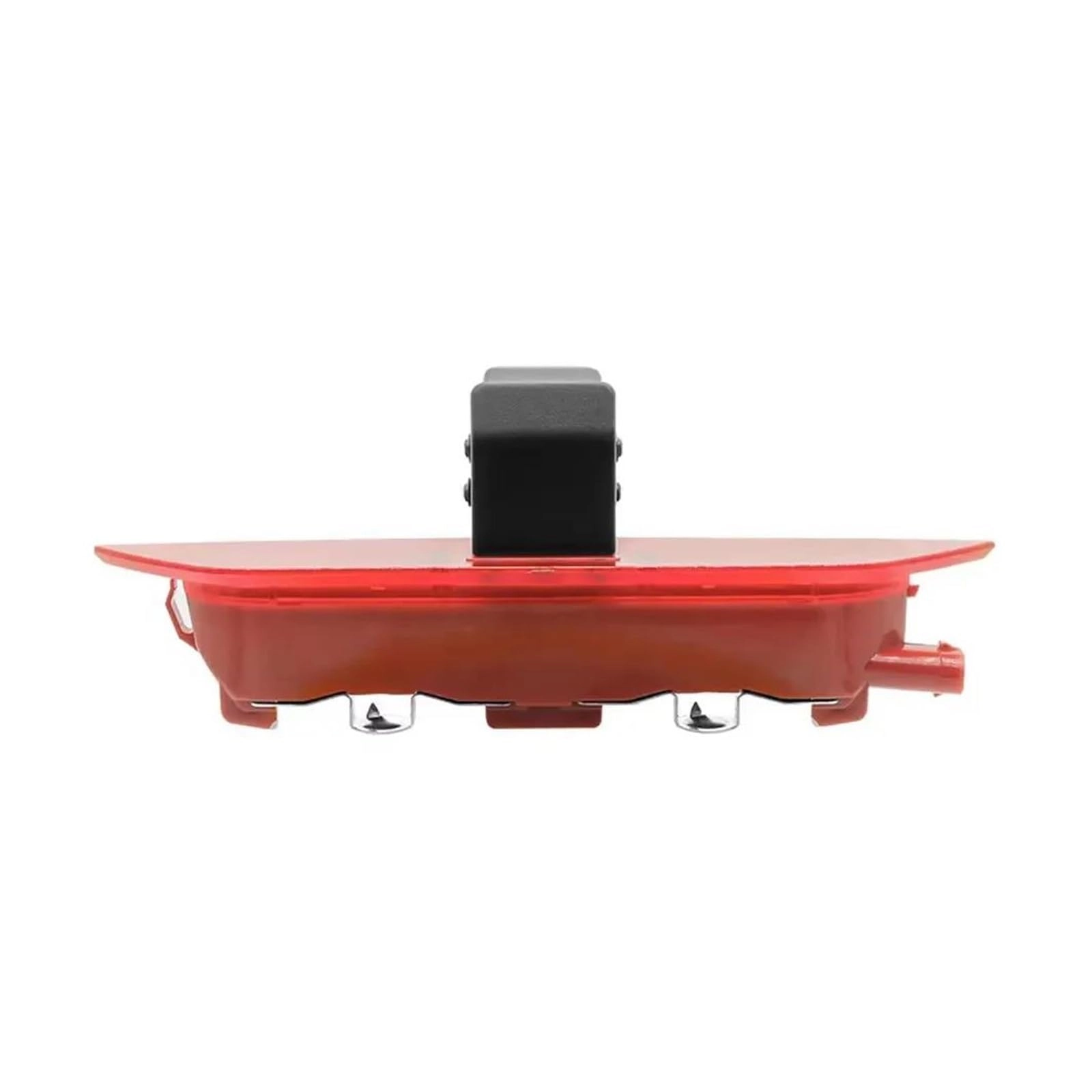

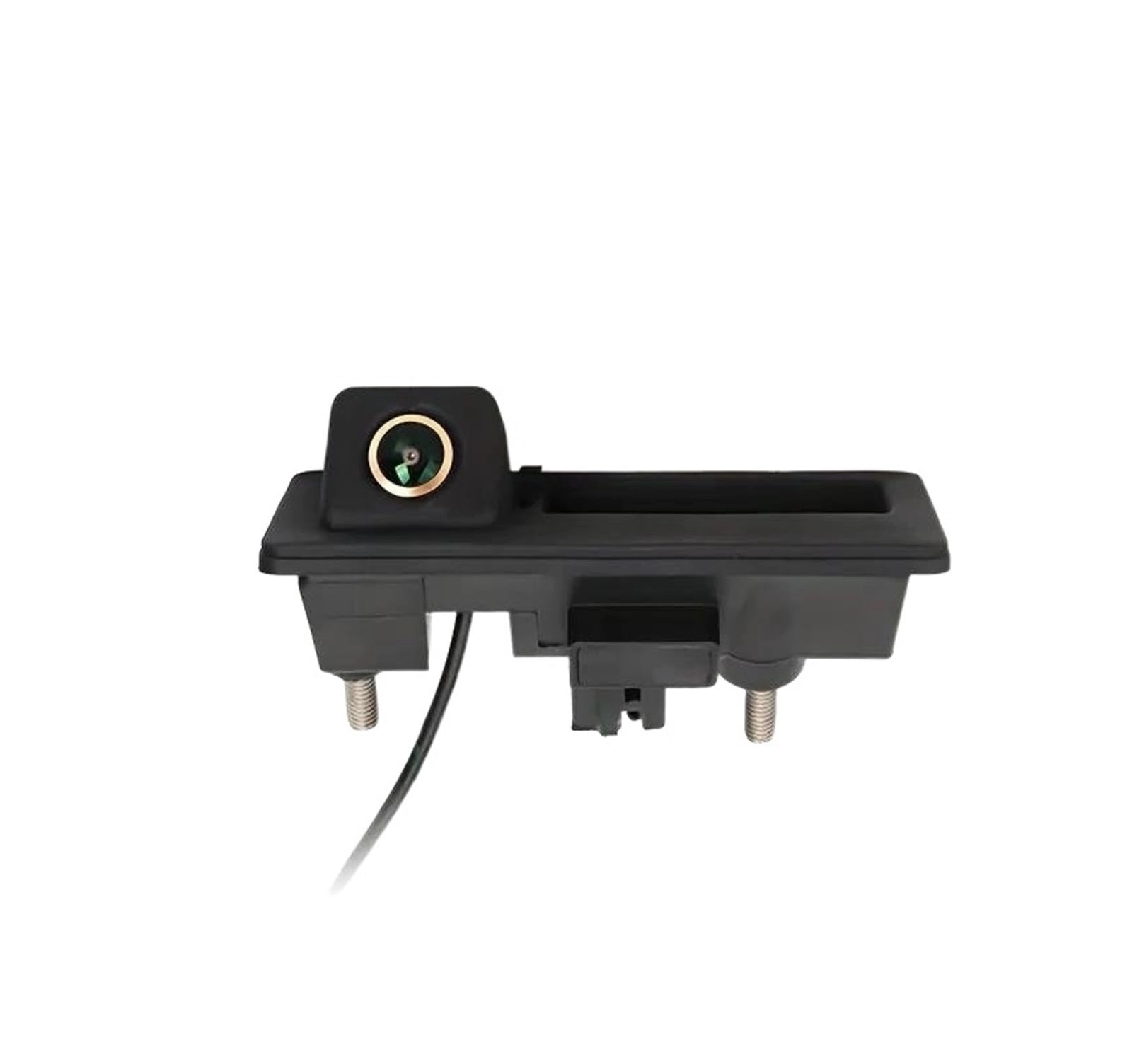

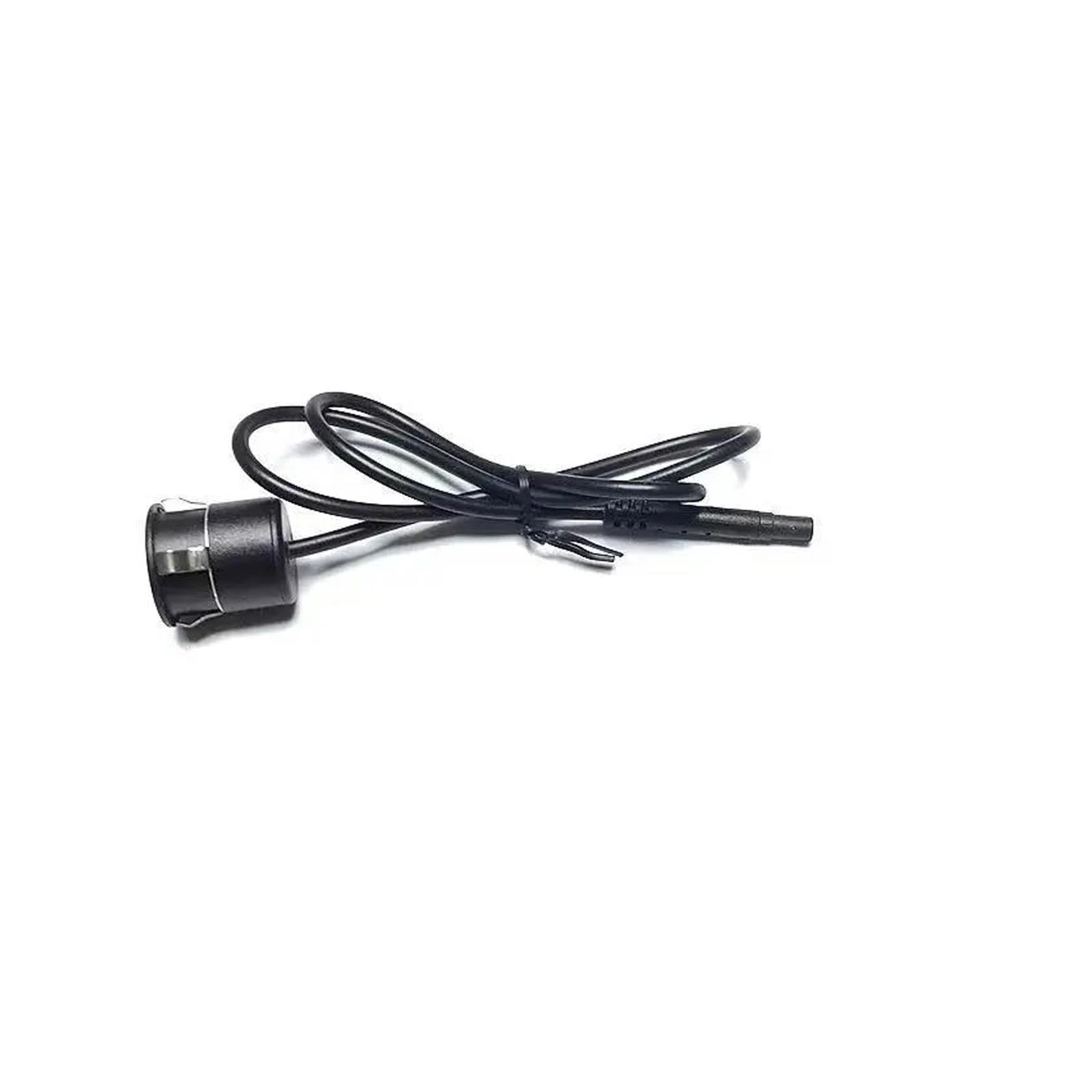

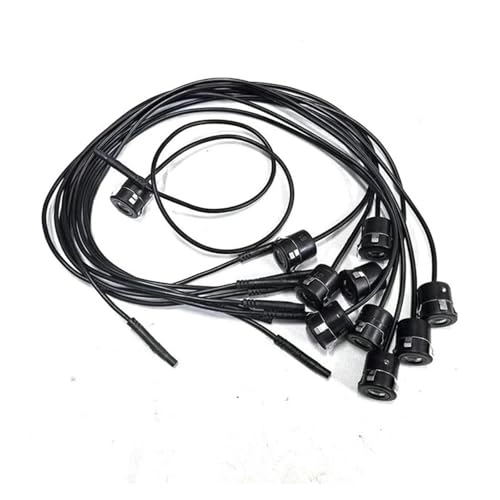

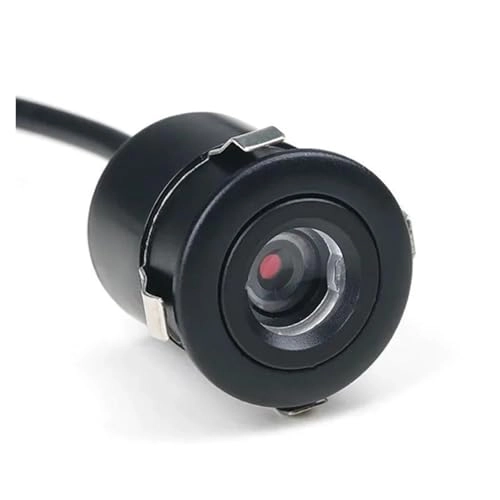

SQOFJDF Rear View Camera - Night vision 628(H)x582(V) Pixel

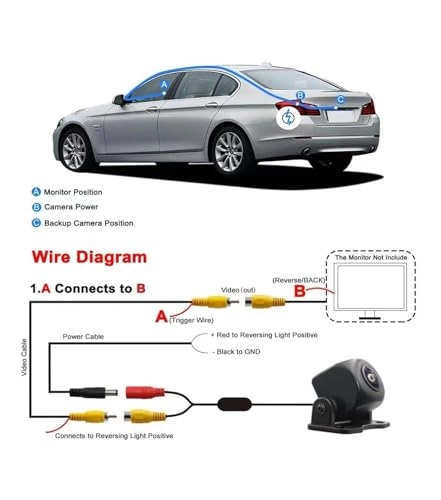

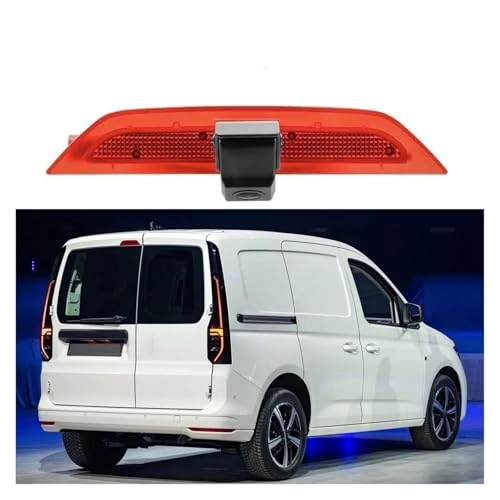

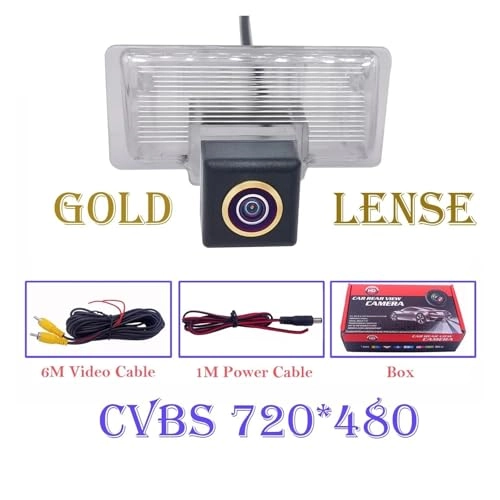

Description : - For VW For CADDY 2004-2015 - For VW For JETTA 2003-2014 - For VW For GOLF PLUS 2005-2007 - For VW For PASSAT 3C 3B 2001-2005 - For VW For TOURAN 2003-2015 - For VW T5, T5.1 For TRANSPORTER 2003-2015 Specification : Product name : wide angle reversing camera Material : plastic & metal Color : black Voltage : 12V DC Current consumption : 130mA Waterproof rating : IP67 Effective Pixels:NTSC:628(H) *535(V) Resolution : 480 TV lines Minimum illumination : 3Lux/F1.2(OLux when infrared LED on) Lens angle : wide S/N rstio : more than 48db Electronic shutter : 1/50/1/60-1/15,000 seconds Video output : RCA connector, 1.0vp-p,75ohm Operating temperature : -30 to 60 degree RH95% Max Storage temperature : -35 to 70 degree RH95% Max Other items : automatiewhite balance, AGC and BLC Cable Length of Camera:Approx.54cm/21.26in Power Supply Cable Length:Approx.102cm/40.16in Video Cable Length:Approx. 297cm/116.93in Placement on vehicle : rear Quantity : 1pc Installation: 1.Mount the camera inside the keyhole of your vehicle. 2.Adjust the lens of the camera to its best position. 3.Connect power cord to connect to your vehicle DC 12V power . 4.Connect the video output(yellow) of the camera to the display in your vehicle. Package Included: 1 x car rear view camera 1 x video cable 1 x power cable 1 x manual The back camera / reverse camera is specially designed for seeing the blind spot where your mirrors can’t reach, it can help you see more when you driving or parking, effectively avoid a lot of trouble. If you encounter any problems and need help, please email us within 24 hours and we will solve it for you as soon as possible!
