SIXTOP Reversing Camera - Night Vision AV 580X540

Note:

1. Voltage: DC 12V
2. If the image on the screen is blurry, flickering, or horizontal/vertical stripes appear, please check all power and video connections. Use different ground points (iron parts) as far as possible and wrap the power plug and video plug with insulation tape to isolate interference. If these problems persists, please order a 12V DC power adapter filter rectifiter to solve problems.

Ensure safe and confident reversing, designed for a range of vehicles including cars, vans, SUVs, and trucks

Compact Design Wide Angle Rear View Reversing Camera

• - 12-LED night vision to provide a clear view at dark
• - 170° wide viewing angle without blind spots
• - Guidelines for safe reversing
• - IP66 Waterproof for all weather conditions
• - Quality camera case design, performance and longevity
• - Strong Compatibility for variety of vehicles (with 6m extension cable)
• - Compatible with any car stereo, monitor, screen display, dash camera, via video input (AV connector)

Specifications

Image sensors: 1/4" color Sensor

TV System: NTSC default & PAL request

Minimum illumination. <0.5

AGC: Auto

BLC: Auto

White Balance: Auto

Video Color: Colorful

Waterproof Class: Ip 66

Effective Pixels : 580X540

Resolution : 420TV lines

Video Output: 1.0Vp-p,75

Electronic Shutter: 1/60(NTSC)-1/10000S

S/N ratio: Better Than 48db

Lens Angle: 170°

Operation Temperature: -20°C+80°C RH95%

Storage Temperature: -30°C+80°C

Working Power (DCV): 12V

Current consumption: 90mA Max

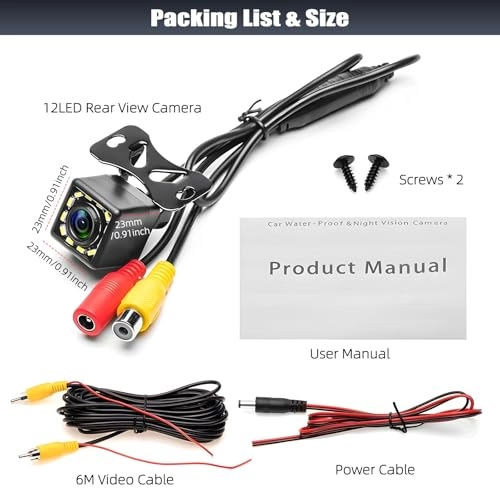

Package Included

1 x Rear View Camera

1 x 6M Video Cable

1 x Power Cable
