Shidekaifa INJ302-2POE - 12~48V max 60W 2 ports

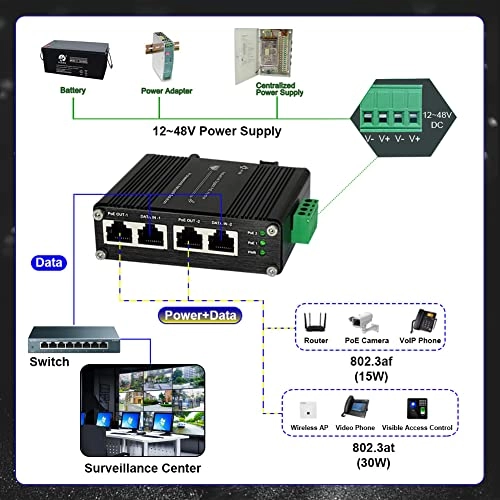

The 2 Ports PoE Injector is a Hardened Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant withI EEE 802.3ab. The PoE Out port compliant with IEEE 802.3 af/at. The 2 Ports POE adapter provides an integrated power solution with 12~48VDC wide range voltage input.

Features:

12~48VDC Power Input

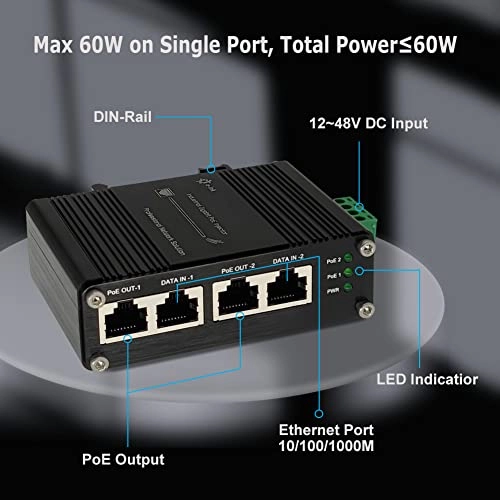

2 RJ45 Ethernet Data Input Port + 2 RJ45Power Over Ethernet Output Port(Data + Power)

Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment

Total PoE power is 60W, max 60W at single port PoE output

Support 10/100/1000Base-TX

Power Pin Assignment: 4/5(+), 7/8(-)

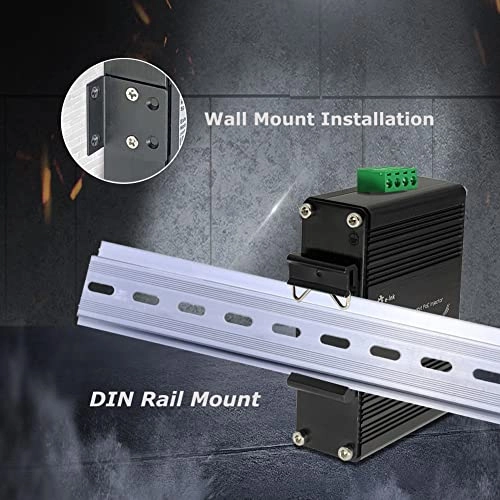

Support DIN-Rail & Wall-mountin stallation.

Extensive LED indicators for PoE diagnostics

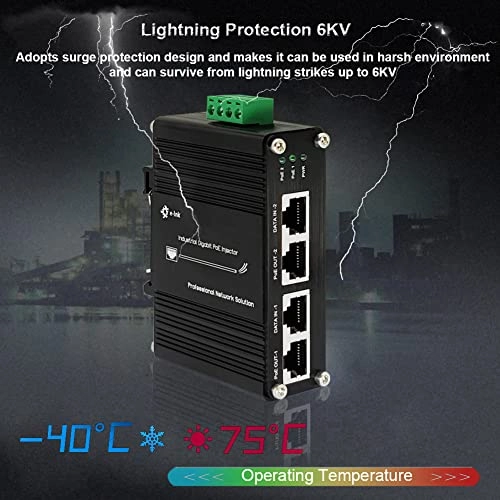

Environmentally Hardened -40°C to 80°C(-40°F to 176°F) operating temperature

Warranty: 5-Year Warranty

Package:

1 * 2 ports PoE Injector

1 * POE injector User Manual

1 * L-Shaped Wall Mount bracket

Note: The Power Supply for POE injector is to be purchased separately.
