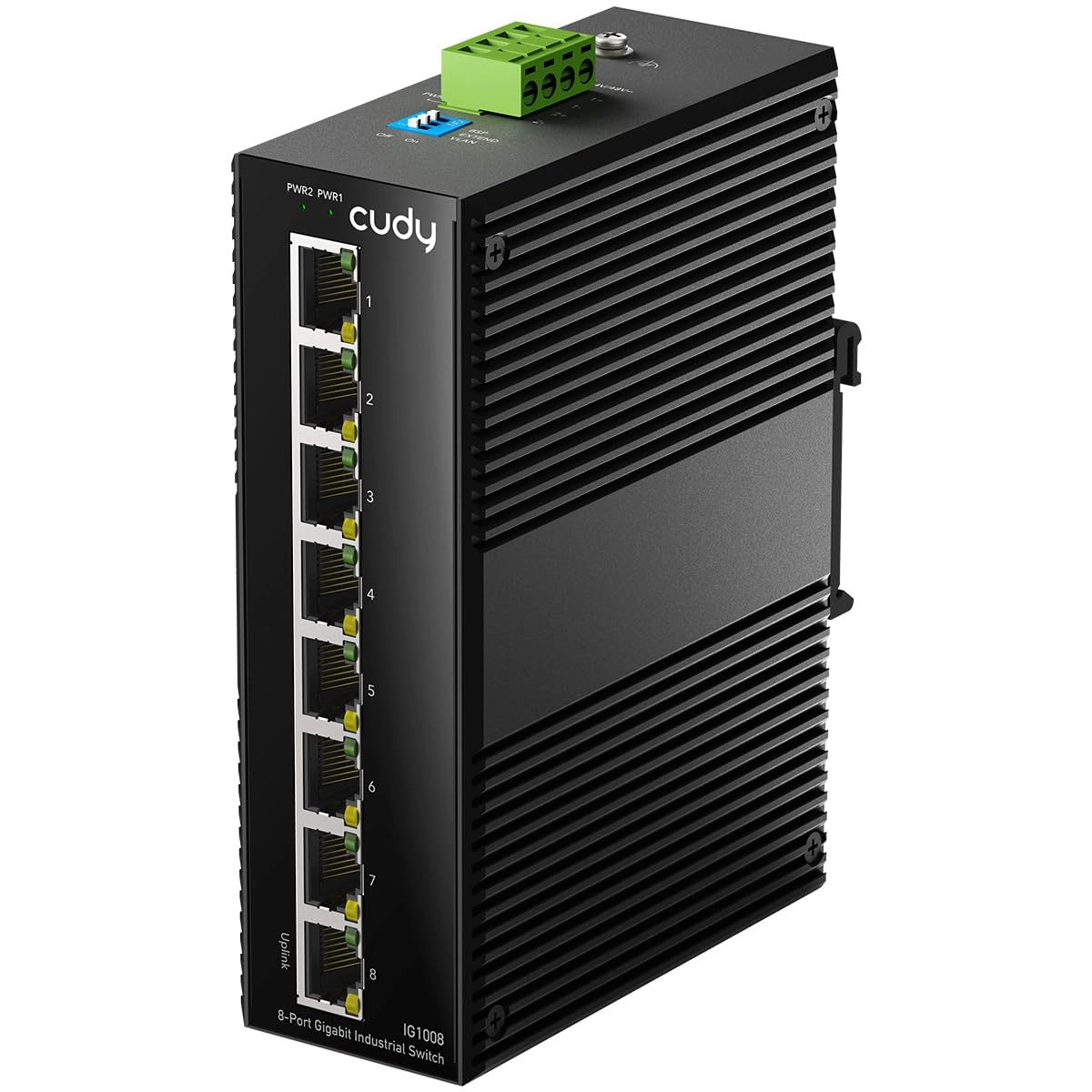

Shenzhen Cudy Technology Co., Ltd. IG1008 8-ports

Best offer

AED

270⁹²

Key Features

Product colour: Black
Switch type: Unmanaged
Interface: RJ45
Weight: 505g

Specifications

Features

Product colour

Black

Weight & dimensions

Weight

505 g

Ports & interfaces

Interface

RJ45

Technical details

Switch type

Unmanaged

Product Details

8 Gigabit Ethernet ports

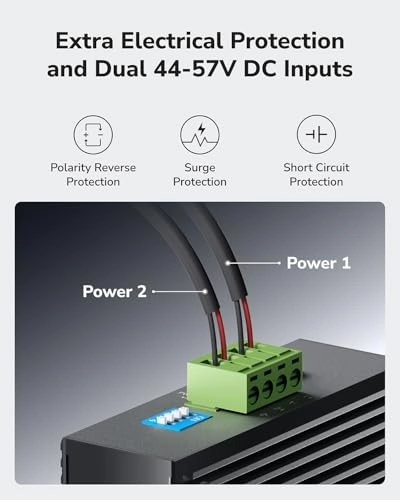

Redundant power input from 12V to 52V DC

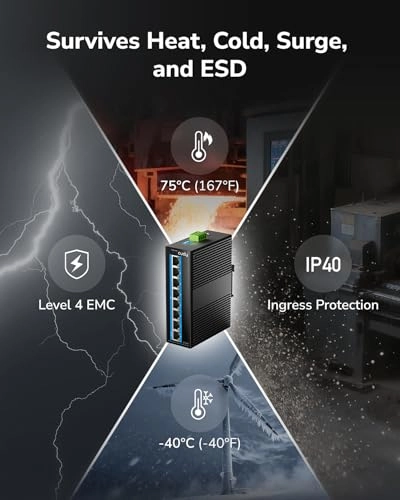

Operating temperature -40 â"ƒ to 85 â"ƒ
IP40 aluminium housing
Supports 6KV DC Ethernet ESD protection
Supports 6KV DC EFT protection for power line

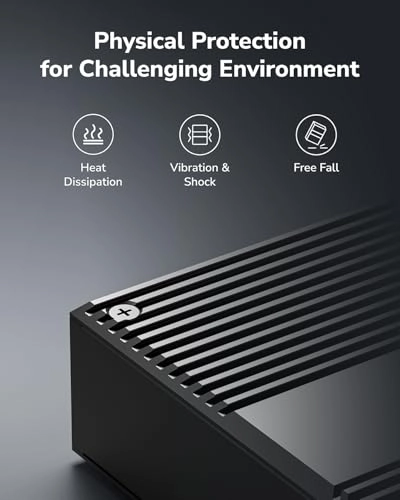

Free-fall, shock and vibration stability
DIN rail and wall mountable hardware design

Technical specifications:

10/100BASE-TX ports: 8 x RJ-45 auto-MDI / MDI-X ports.
Performance specification:

- Bandwidth: 20Gbps - Packet buffer memory: 2 Mbit - Packet forwarding speed: 15 Mpps - MAC address table: 8K

DIN Rail Installation
Maximum frame size: 9000 byte packet size
Flow control: back pressure for half duplex, IEEE 802.3x pause frame for full duplex
IP40 aluminium housing
LED indicators:

- Power: Red - Ethernet: Yellow

Redundant power supply from 12 to 52V DC (Note: this product does not include a power supply)
Power consumption 3 watts max.
Surge protection ±4KV
Network protocols:

IEEE802.3 10BASE-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x

Network Cables:

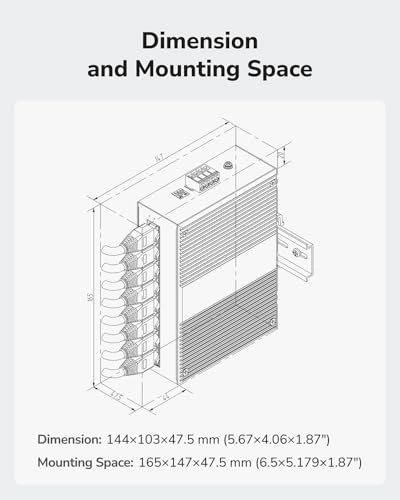

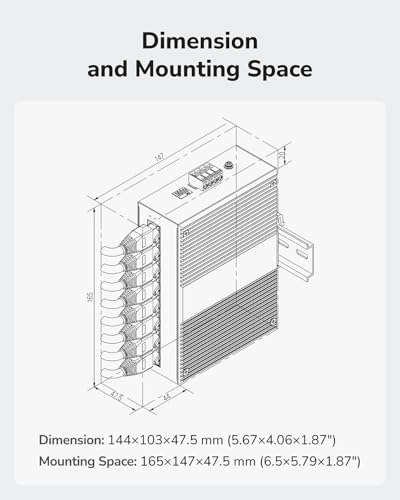

10BASE-T: Cat 3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat 5 or above UTP (≤10 meters) 1000BASE-TX: Cat 6 or above UTP (≤100 meters) Size:

Width: 143.7mm
Depth: 103mm
Height: 47.7mm

Environmental Features

Operating temperature:
