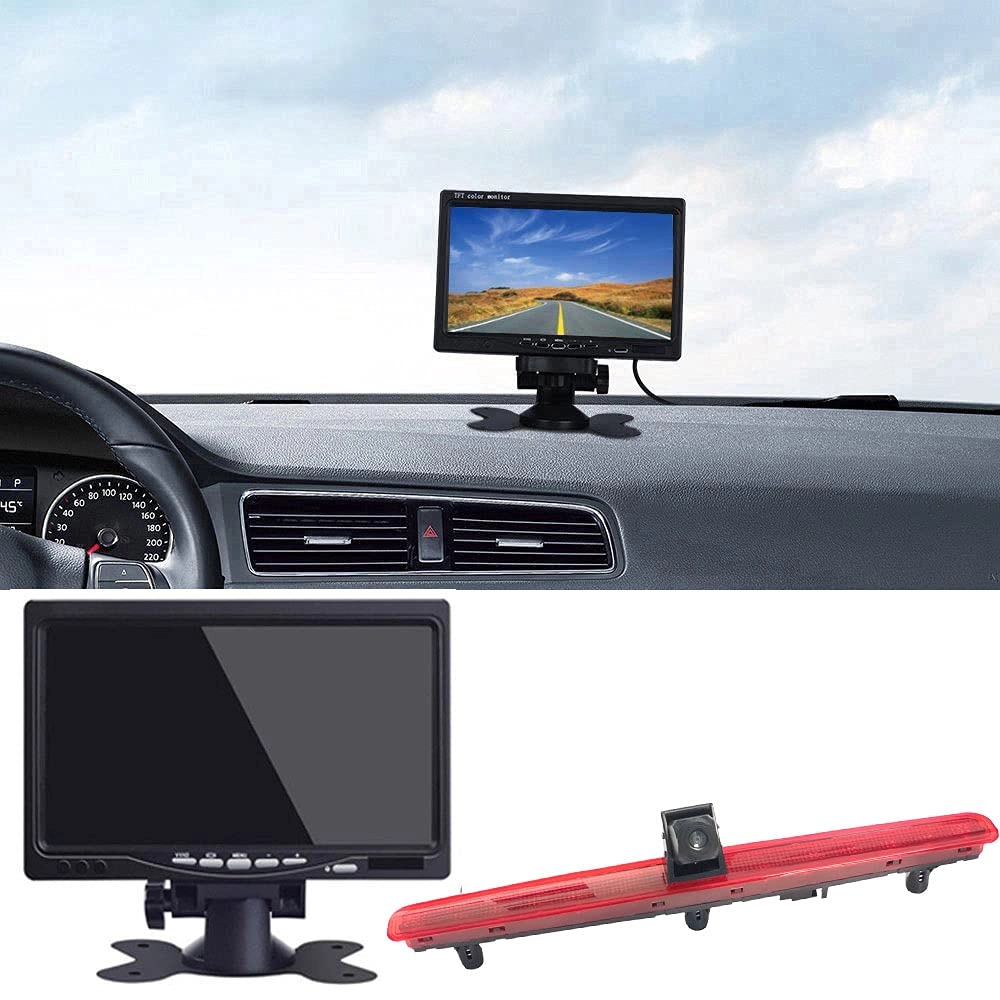

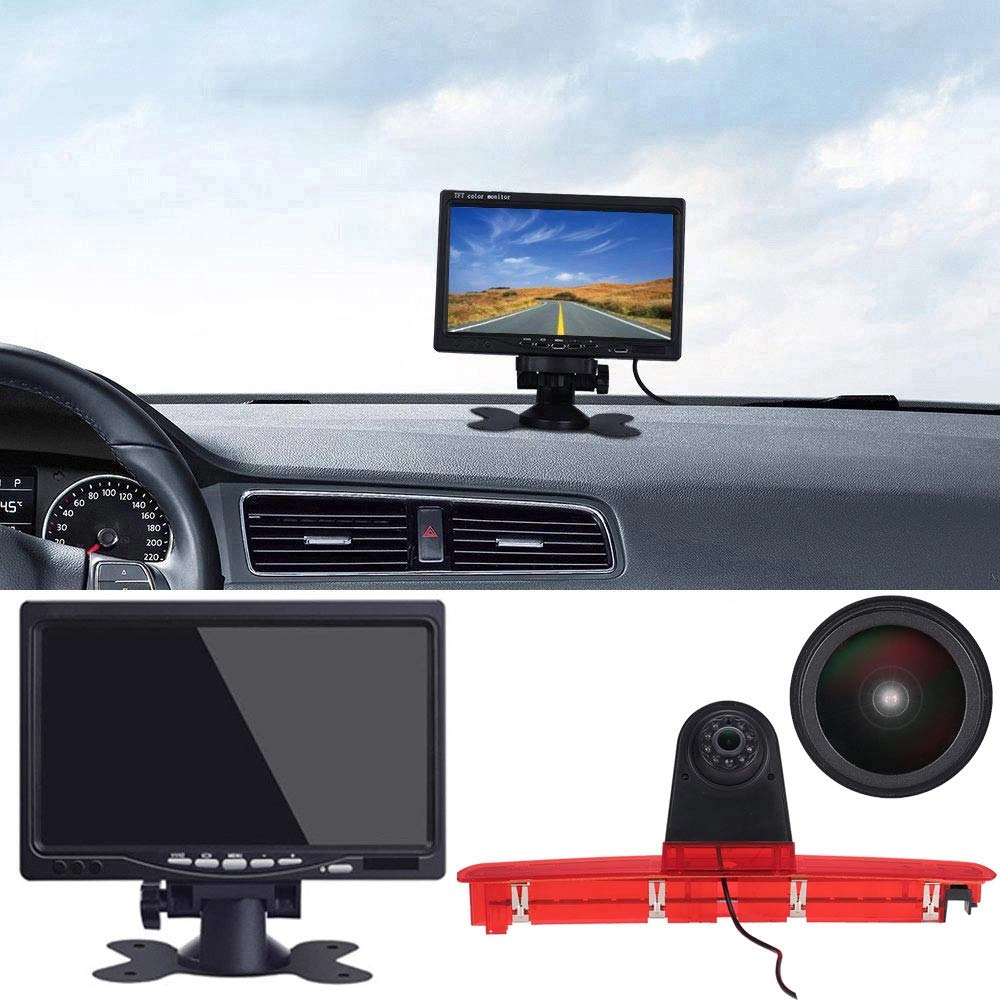

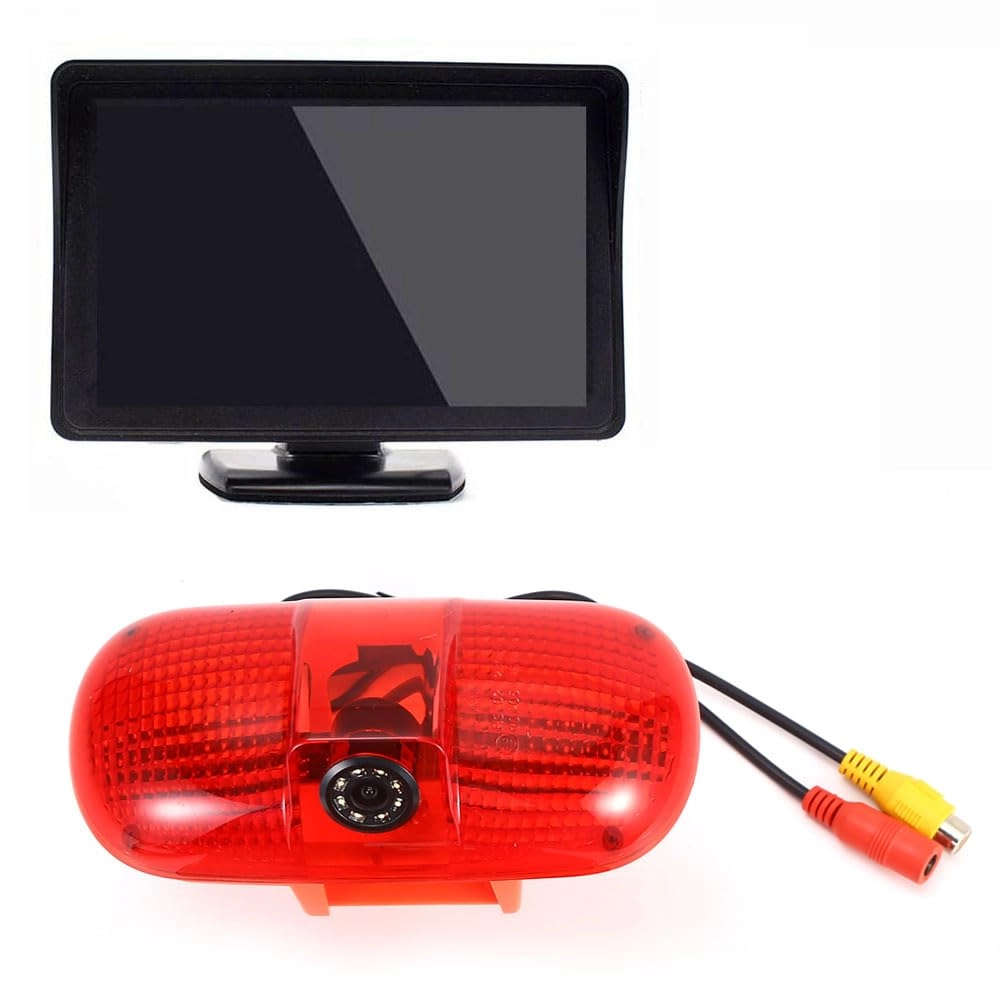

sedodogo TFT LCD monitor + rear view camera - Night vision 628 x 586

All cameras are checked before they are sent to you.

OEM: 9682830180 9688528980

Replacement for: Toyota Proace City Verso Box MPV 2019 - 2023;

Replacement for: Citroen Berlingo Van B9 Mk2 MK3 II 2 Phase III 3 Multispace First Furgon GFK GJK MF EC ER 1998-2023;

Replacement for: Opel Combo Box/Saloon X19 Tour Life K9 2018/08-2023/12;

Replacement for: Peugeot Partner Tepee Box L Saloon 2011/04-2023/12;

Replacement for: Peugeot Rifter 2018/09-2023/12.

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL
• Effective pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.

Packing list:

• 1 x 4.3 inch rear view mirror.
• 1 x power cable (for monitor).
• 1 x user manual (for monitor).
• 1 x car rear view camera.
• 1 metre DC cable (for camera).
• 8 meter AV cable (for camera)
