sedodogo Rear View Camera - Night vision Wired 640p

【All cameras are tested before being sent】

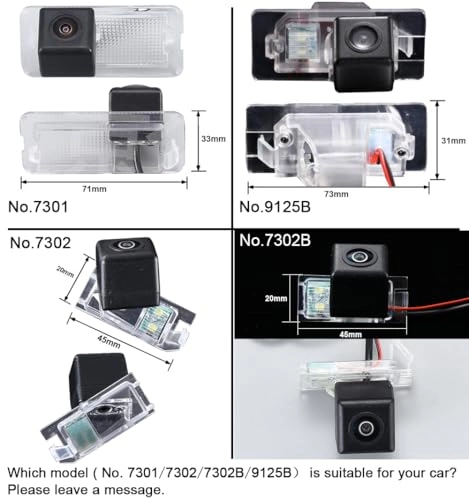

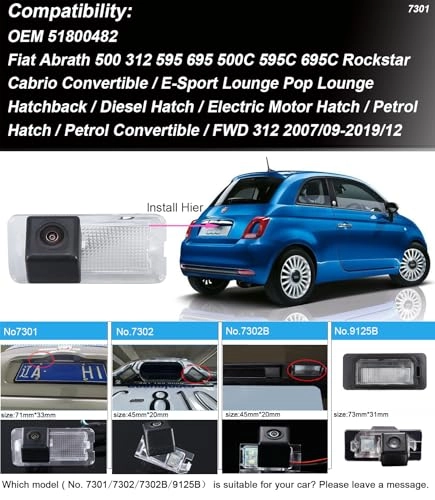

Replacement for:

Fiat 500/ Abarth 500 2007-2020 (choice no. 7301)

Fiat 500C/595C/695C/312C/Linea 2008-2022 (choice #7301)

Fiat 500X 2014-2019 (choice no. 9125)

Fiat 500 2013-2019 (USA model only) (choice #7302)

Fiat 500L / Punto Evo / Grande Punto 2012-2016 (Choose from 8039)

OEM: 51800482

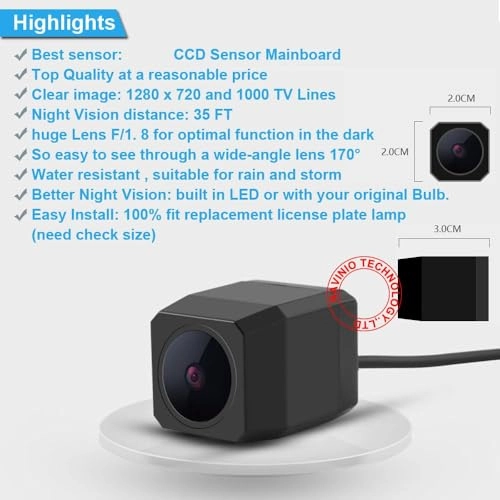

Specification:

• Image Sensors: 1/4" Color CCD
• TV system: NTSC and PAL
• Effective Pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67
• Working power (DCV): 12.
• Power consumption: 90mA max.

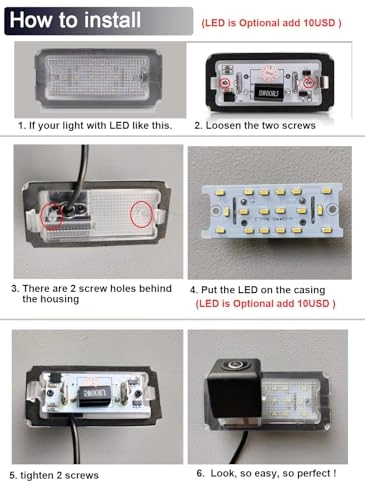

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

3. Connect the power cable (red and black) to the power cables of your vehicle lighting.

4. Connect the video cable (yellow) to the display.

【Distance Lines】

The camera has no distance lines by default.

If you need distance lines, you can cut the white line next to the camera and the distance lines are displayed.

Package includes:

• 1 x CCD Car Rear View Camera
• 1 x 8m Video Cable
• 1 x power cable.
• 1 x user manual (English language not guaranteed).
