REVODATA PoE HAT - 36-57V 25 Watts IEEE802.3af/at 1 Gigabits Per Second

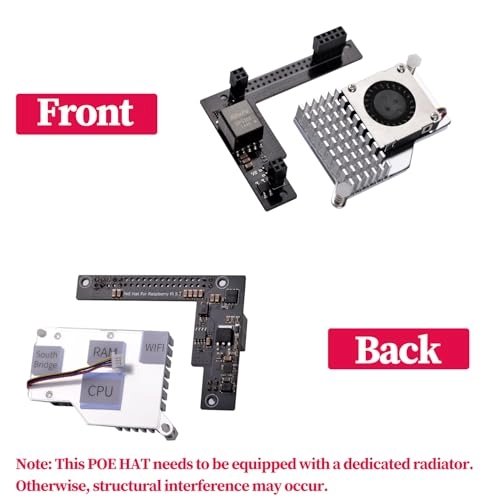

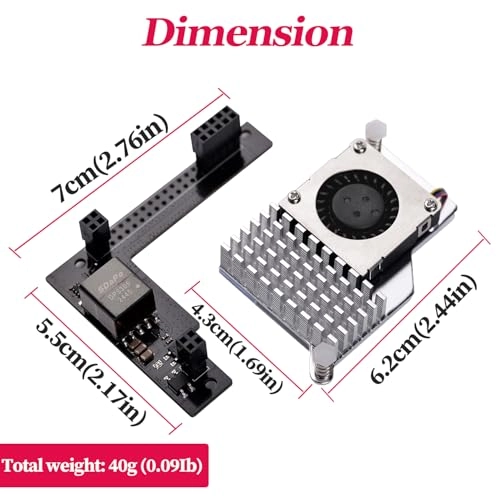

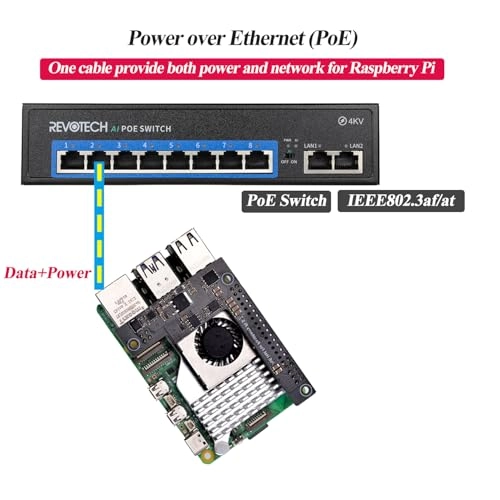

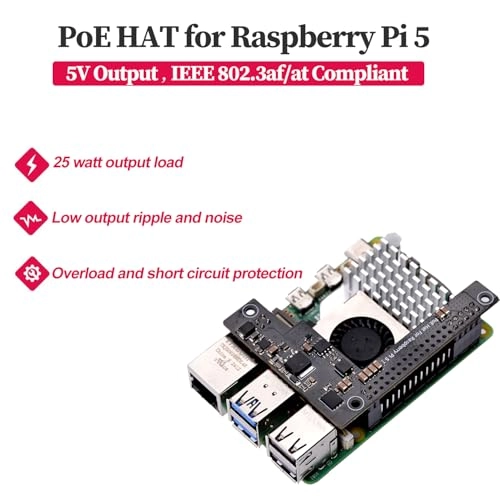

Note: This POE HAT needs to be equipped with a dedicated radiator. Otherwise, structural interference may occur. Overview： The “POE HAT” is a POE accessory with IEEE802.3af Power Over Ethernet(POE) standard for the Raspberry Pi 5. The Raspberry Pi can get power and network from this POE HAT, by connect to IEEE802.3af/at PoE switch with RJ45 Ethernet cable. Easy installation and low cost(isolation type and minimum external device required). Features： Fully IEEE 802.3af/at compliant 25 watt output load IEEE Power class programmable (Green) 1500 Volt DC isolation (Input to Output) 5V output voltage models Overload and short circuit protection Wide input voltage (36V to 57V DC) Support PoE applications in both of Fast / Gigabit Ethernet environments. Low output ripple and noise RoHS Compliant Specification: Power input: DC 36-57V Power output: 5V Output Power: 25 Watts(70°C) ; 22.5 Watts(85°C) POE standard: IEEE802.3 af/at Working Environment: -40~85°C Storage Temperature:-40~100˚C PoE HAT Dimension: 70 x 55 x 16mm(2.76 x 2.17 x 0.63in) Weight(Include cooler) : 40g (0.09Ib) Package Content: 1 * PoE HAT 1 * Cooling Fan
