Real HD HD-5EB28WA

HD-5EB28WA

You must know before you buy: 1. This 4-in-1 security camera requires a DVR for recording video. It supports 5MP or 4K 8MP TVI DVR,HD CVI DVR, AHD DVR, and 960H DVR. It does not support IP NVR. 2. In TVI, CVI, AHD DVR Mode, camera resolution is 5MP. In CVBS (960H) mode, resolution is 1000TVL. 3. Camera resolution is 5MP. If connect to 3MP, 1080P, 720P DVR or 960H DVRS, it won’t work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input otherwise switch camera to Analog. 4. If need to remote view by App, customer needs to use the APP of DVR Technical Parameters: - 1/2.9" color CMOS sensor - Resolution: 5MP - 65ft IR Range - TV System: NTSC - Video Output: HD-TVI(5MP),(AHD/TVI/CVI/CVBS) - Day &Night: Support (ICR) - Frame Rate: 25fps (50HZ), 30fps (60Hz) - Min illumination: 0.1lux(LED ON) 0.01lux(0-3 lux LED) - S/N Ratio: >52dB (AGC off) - Electronic Shutter: Auto 1/50s (1/60s)-1/100.000s - White Balance: Auto - Gain Control: Auto - Weatherproof for indoor/outdoor - Power Supply:DC12V 1000mA

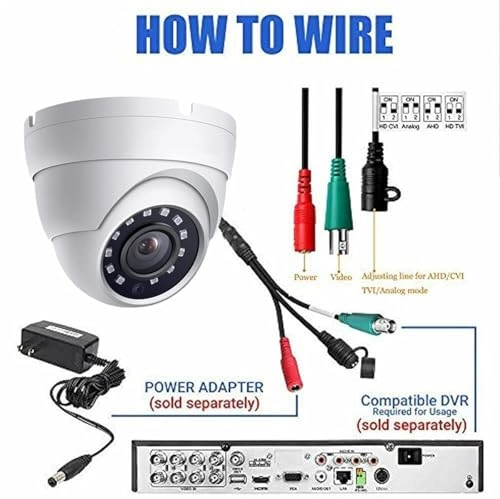

4 in 1 video model, provides flexible for your security applications HD-TVI/ CVI/AHD/960H technology delivers zero latency HD video over RG59 coax or any standard analog CCTV cabling up to 300’. With convenient DIP Switch control of settings over coax cabling, you can eliminate the need for a separate cable. Note:

This camera does not have recording or remote view feature, require DVR for recording, not wireless and do not support mobile view. Default mode is HD AHD, if you are using other type of DVR, like Analog DVR, please switch the video type follow the user manuals. Package included: 1 x Dome camera 1 x Bag of mounting screws 1 x Installing Template 1 x Manual
