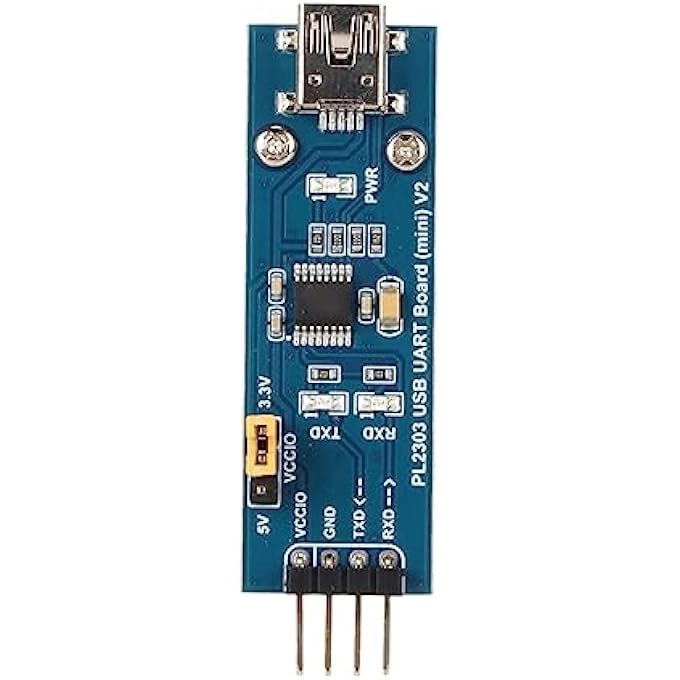

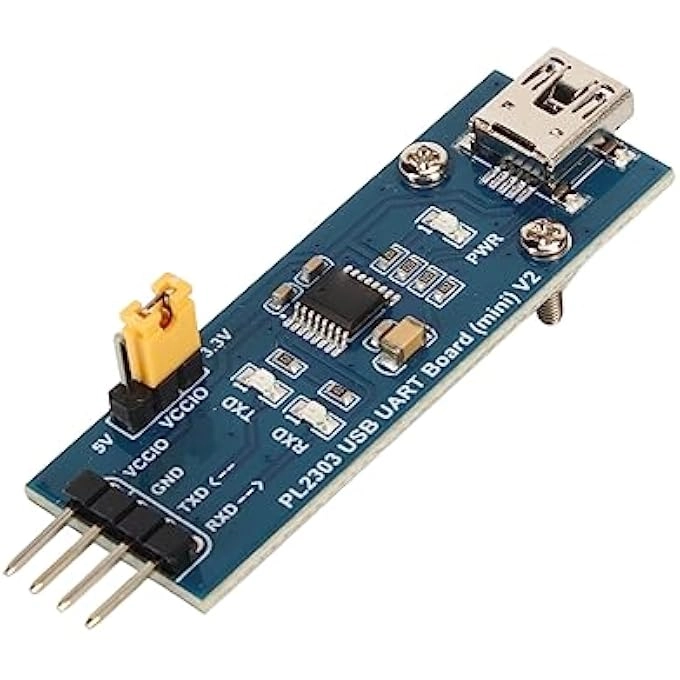

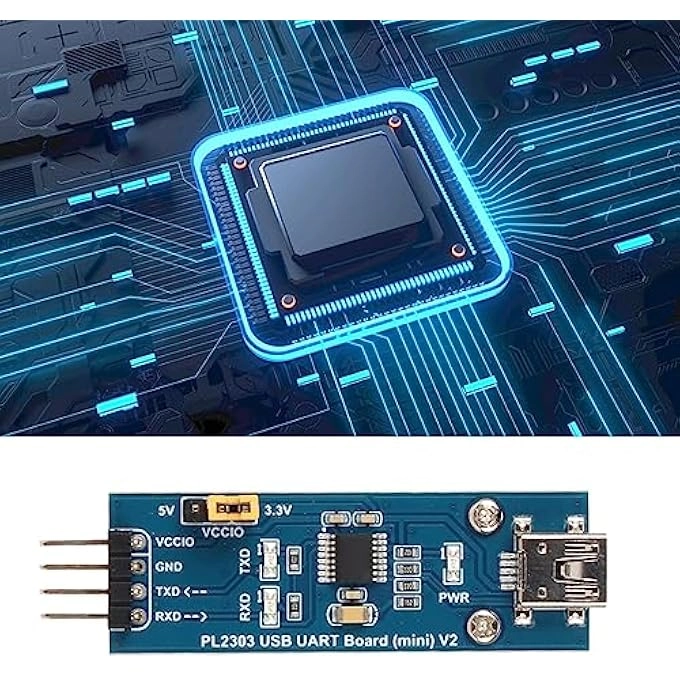

rayihni USB UART TTL MODULE - PL2303TA USB Mini AB 3.3V/5V

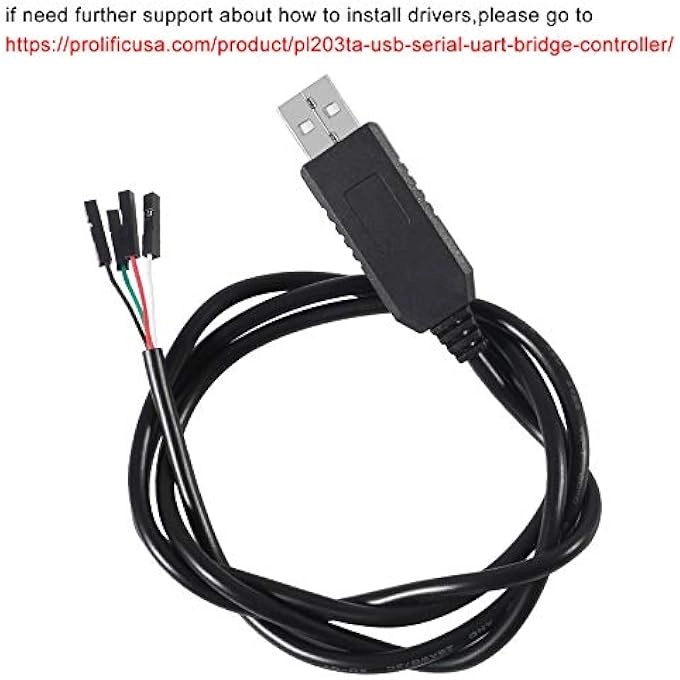

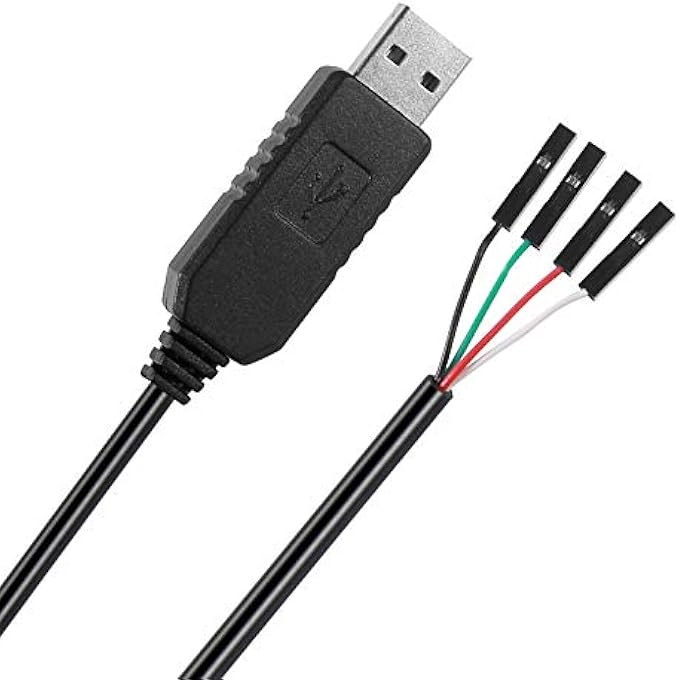

Cable Length:3ft/1m; Specific Interface A: USB 2.0 type A Male Port; Interface B: 4 pin Female Socket flying leads. Prolific chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM. USB to TTL serial cable 3.3V (4 way output flying leads ) provides access to UART (transmit) Tx, (receive) Rx, VCC (5V) and GND(ground), RX and TX at 3V3 logic level; The wires can be distinguished by different colors, Red: +5V, Black: GND, Green: TXD, White: RXD. TTL to USB Converter Support Windows XP/Vista/7/8; Ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc. Application:PL2303 USB to TTL serial adapter is designed to be used for USB to TTL electronic projects, easy to connects devices with 3.3 V logic level UART signals interface to a laptop via USB port; Upgrading Legacy Peripherals to USB;Interface Microcontroller UART or I/O, FPGA / PLD to USB;USB Software / Hardware Encryption Dongles; Industrial Control. Note: 3.3V and 5.0V output is set (this is the power supply to the microcontroller, upgrade machines do not need the small plate) unplugged from the computer, set the jumpers to take, do not live to avoid damage to the equipment. › See more product details
