rayihni RS232 CAN BUS CONTROL CONVERTER GATEWAY

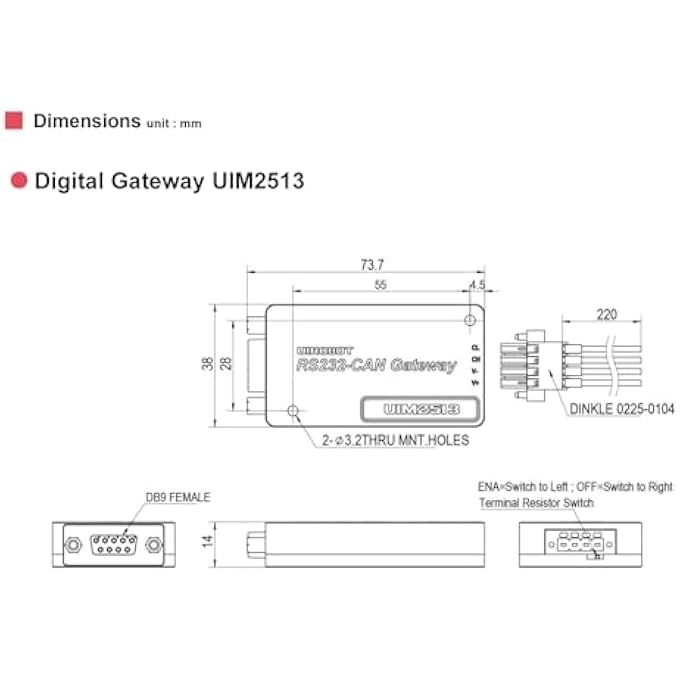

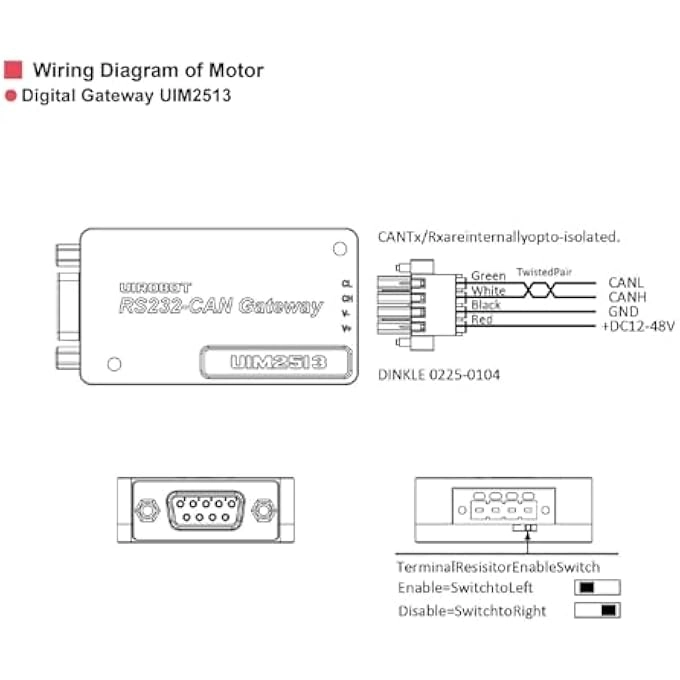

[CONNECTING MODULE] Our gateway supports RS232 protocol and CAN bus connection, and is primarily used to connect the master controller (PC or MCU) with UIM series servo stepper motors, AC servo motion controllers, or DAQ I/O modules. [STRONG CONTROL SYSTEM] They feature a robust DSP core and fault tolerance, along with a fail-safe user interface. Additionally, free debug/control software and complete SDKs, .dll, .lib, .so, and sample codes for C++, C#, etc., are provided for Linux and Win 32/64-bit platforms. [SAFE AND DURABLE] The RS232-CAN Control Converter Gateway features a wide voltage input of 12~48VDC, a DB9 Female interface, and 1500V photoelectric isolation. It is housed in an aluminum alloy casing, providing sturdiness and durability for efficient heat dissipation. [HIGH SPEED CAN] This active CAN 2.0 supports a maximum speed of 1 Mbps, with 3000V isolation. It also supports 3 kinds of CAN IDs: Node ID, Group ID, and Global ID, making it easy to group and manipulate. [PORTABLE] This rs232 can bus adpater is suitable for any occasion, featuring a significantly reduced size of 73.7*38*14mm and a weight of 70g. It's a lightweight, handy, pocket-sized mini serial port adapter, perfect for industrial robots, automatic medical equipment, automated instrumentation. › See more product details
