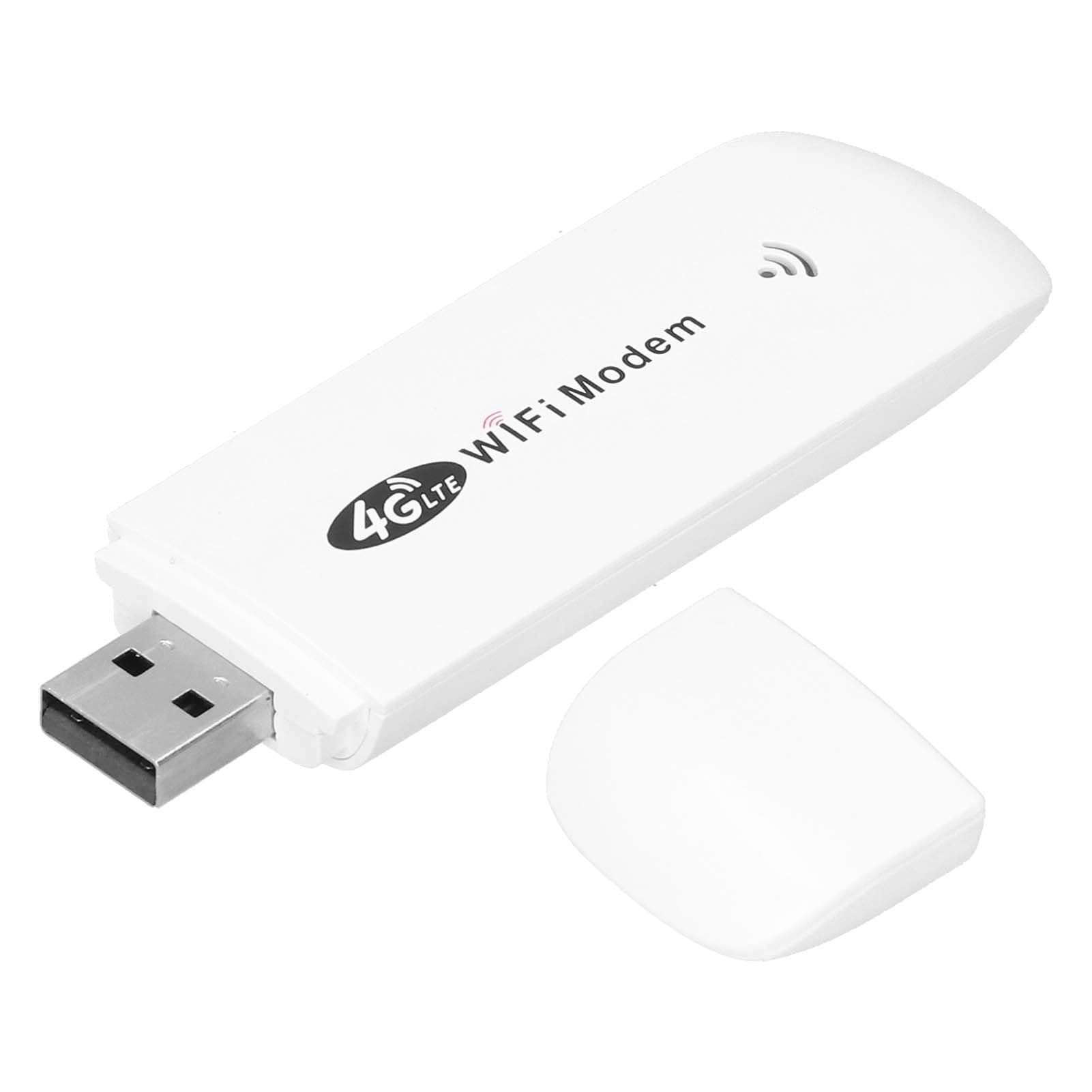

PUSOKEI gcgsw1ampu - 4G FDD B1 B3 B5 B40 3G UMTS WCDMA B1 802.11 b g n 2.4G 150Mbps

Specification: Item Type: WiFi Modem Dongle How to Use: 1. Prepare a SIM card, open the back cover of the dongle and insert the SIM card, close the back cover and insert the computer or other USB power supply port, search the network MIFI SSID: 4G MIFI**** (UFI SSID: 4GUFI_**** )Click connect, Enter the Default Password: 1234567890 and click OK. 2. For Win 7 Open Control Panel→Network and Internet→Network and Sharing Center→Connect to the network, and select the wifi point with the same SSID of this device to connect in the WIFI list. Enter the correct wifi password, click OK and wait for a while, when it shows connected to wifi, it means the connection is successful. 3. For phone Tap Settings, tap the Wi-Fi switch to turn on Wi-Fi. In the WIFI list, select the WIFI that is consistent with the device SSDI, enter the correct WIFI password and click connect. Frequency: 4G / LTE-FDD: B1 / B3 / B5 (850/1800/2100MHz) 4G / LTE-TDD: B38 / B39 / B40 / B41 (1900/2300/2500/2600MHz) 3G / WCDMA: B1 (2100MHz) 2G / GSM: None Peak Rate: LTE FDD: DLUL 150M / 50 Mbps (category 4) Wireless Internet: 2.4G, 802.11 b/g/n Display Mode: LED status indicator Power Port: USB2.0 SIM Card: Micro SIM Port Input Voltage: 5V / 1A Operating Systems Supported by WIFI: For Win XP / Vista / Win 7/8/10 / OS X / / Linux Associated Users: Up to 10 Language: Chinese and English shared APN Settings: Support Wireless Network Settings: Support Device Settings: Support Routing Setting: Support Firewall setting: Support Package List: 1 x WiFi Modem Dongle 1 x User Manual Note: This product does not include SIM card
