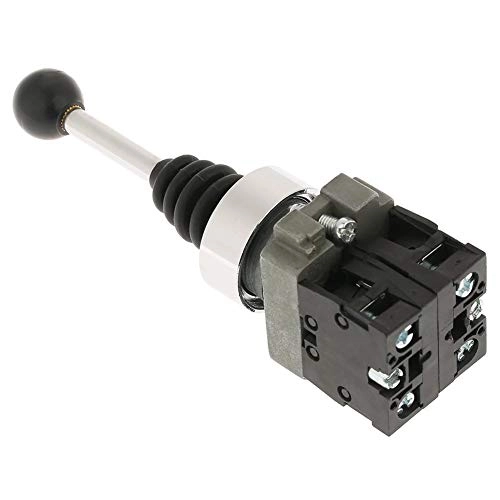

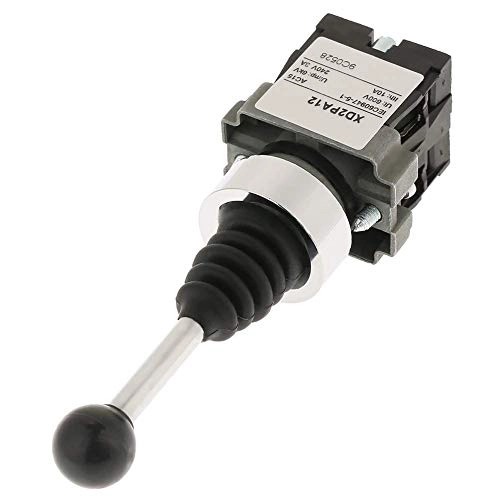

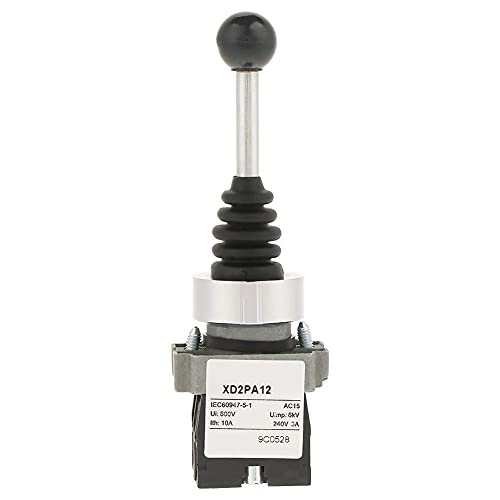

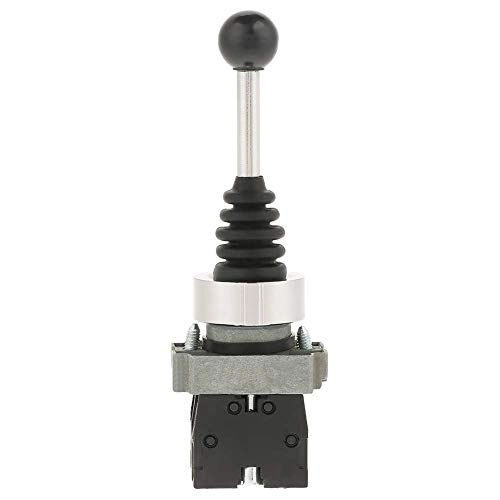

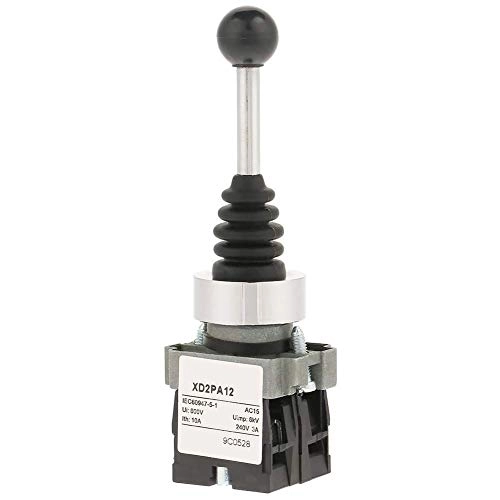

POOWO XD2PA12 - Momentary 2NO Joystick Switch

Features:

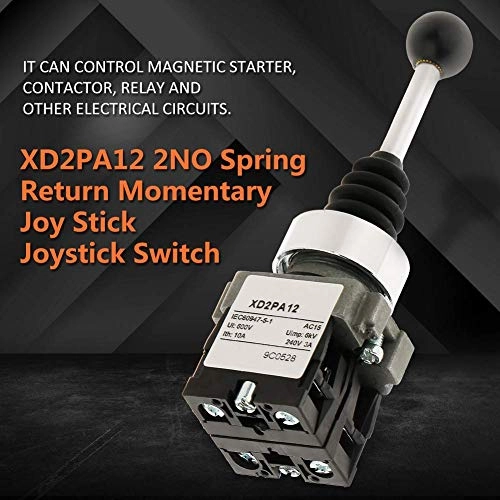

This joystick switch can control magnetic starter, contactor, relay and other electrical circuits, widely used for industrial control AC 50Hz and DC circuits.

Specifications:

Model: XD2PA12

Contact: 2 NO

Rated voltage: 220V / 380V

Rated current: 5A / 10A

Assembly aperture: Dia. 22 mm

Electrical life: >500,000 times

Mechanical life: > 500,000 times

Standard operating environment:

Ambient temperature: -25 ~ +55 degrees Celsius (no ice)

Operating humidity: 45 ~ 85%RH (no condensation)

Contact resistance: ≤50mΩ

Insulation resistance: ≥100Ω

Maximum withstand voltage: 3000V, AC 50Hz

Vibration: 50 Hz, amplitude: Approx. 1mm

Impact resistance: > 10m/s2(about 10G)

Protection grade: IP55

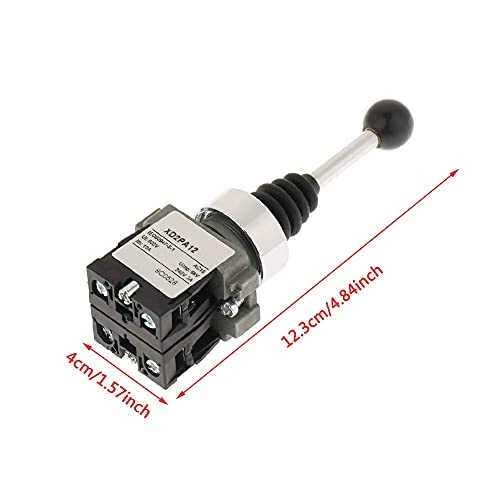

Overall size: 12.3 x 4cm / 4.84 x 1.57inch

Weight: 124g

Package Includes:

1 x Joystick Switch
