POMIACAM IV8W

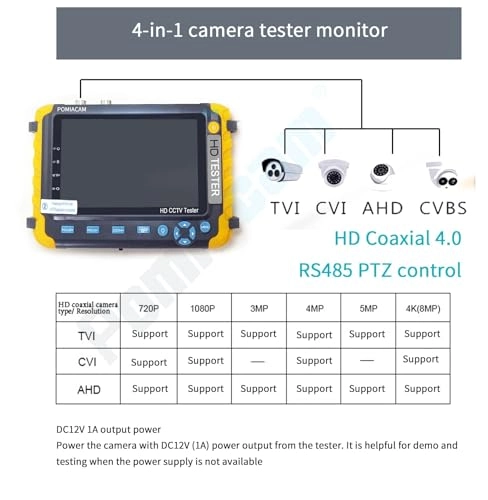

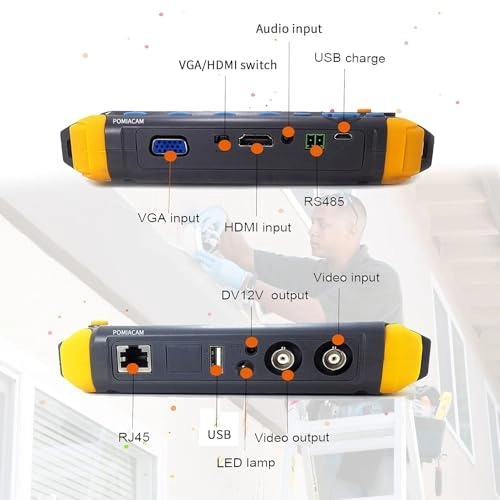

Product Funtions: ● Video signal testing ● PTZ controller ● Image generator:Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section ● DC12V 1A output power ● Audio testing:Test the audio input from pickup devices. Connect the r and pickup device with the audio cable. ● Enhanced network cable testing:By UTP CABLE TEST port on the meter, you can test the connection of network cable. ● VGA/HDMI input:Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440 ● TVI camera test:HD TVI video surveillance testing, support 1MP 2MP 3MP 4MP 5MP. When TVI signal input, the r will display HD TVI camera image. ● AHD camera test:HD video surveillance testing, support AHD 2.0 version, 1MP 2MP 3MP 4MP 5MP. When AHD signal input, the r will display the AHD camera image. ● CVI camera test:HD CVI video surveillance testing, support 1MP 2MP 3MP 4MP. When CVI signal input, the r will display HD CVI camera image. ● LED lamp:It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. ● The battery graphic display: The r has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours. Packing list ●1* HD coaxial r ●1* Adapter DC5V 1.5A（with USB cable) ●1* International Standard 18650 2600ma battery ●1* BNC cable ●1* RS485 connector ●1* Power output conversion cable ●1* Audio cable ●1* Lanyard ●1* Tool bag ●1* Instruction Manual
