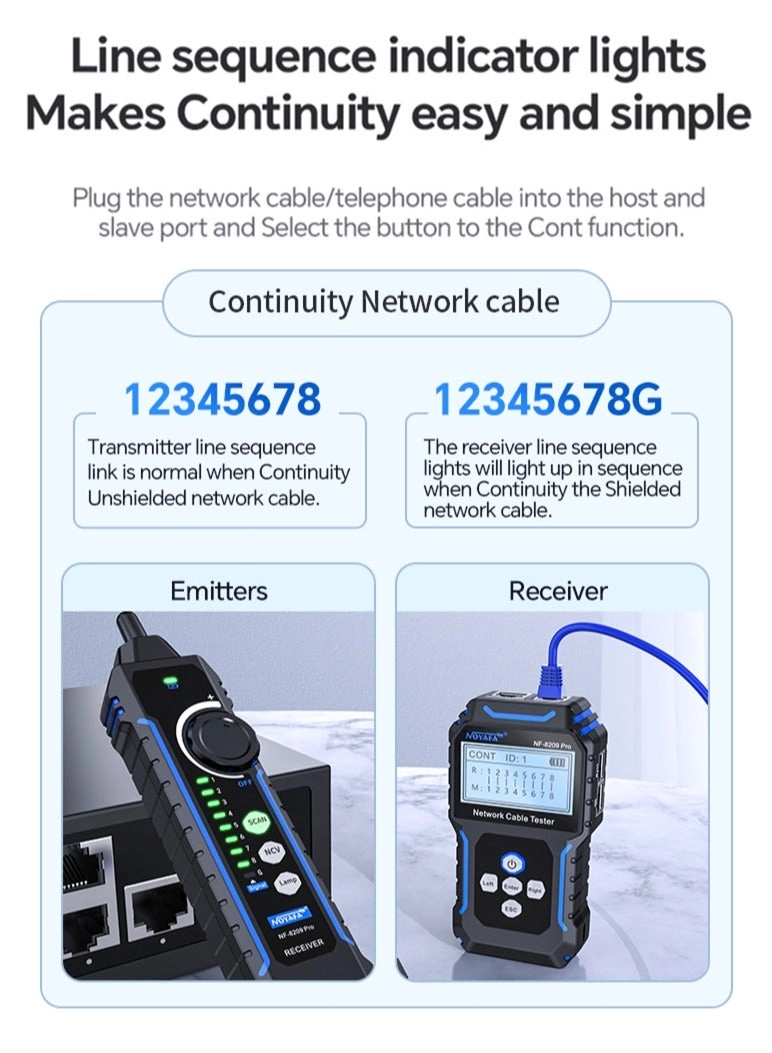

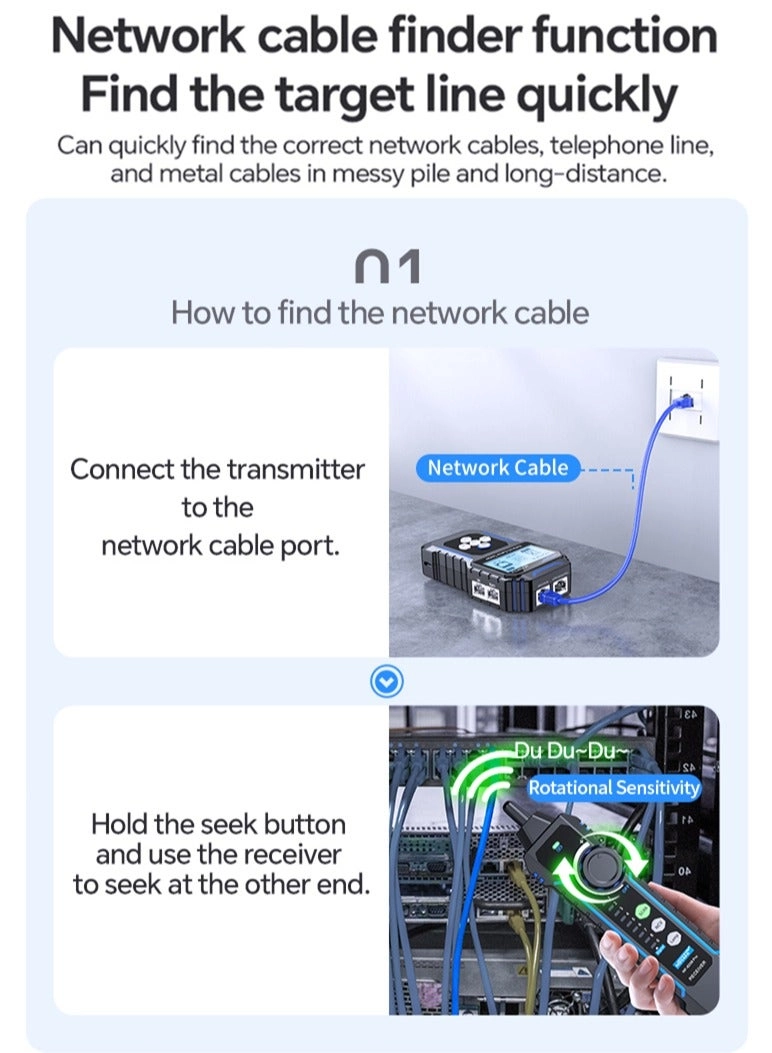

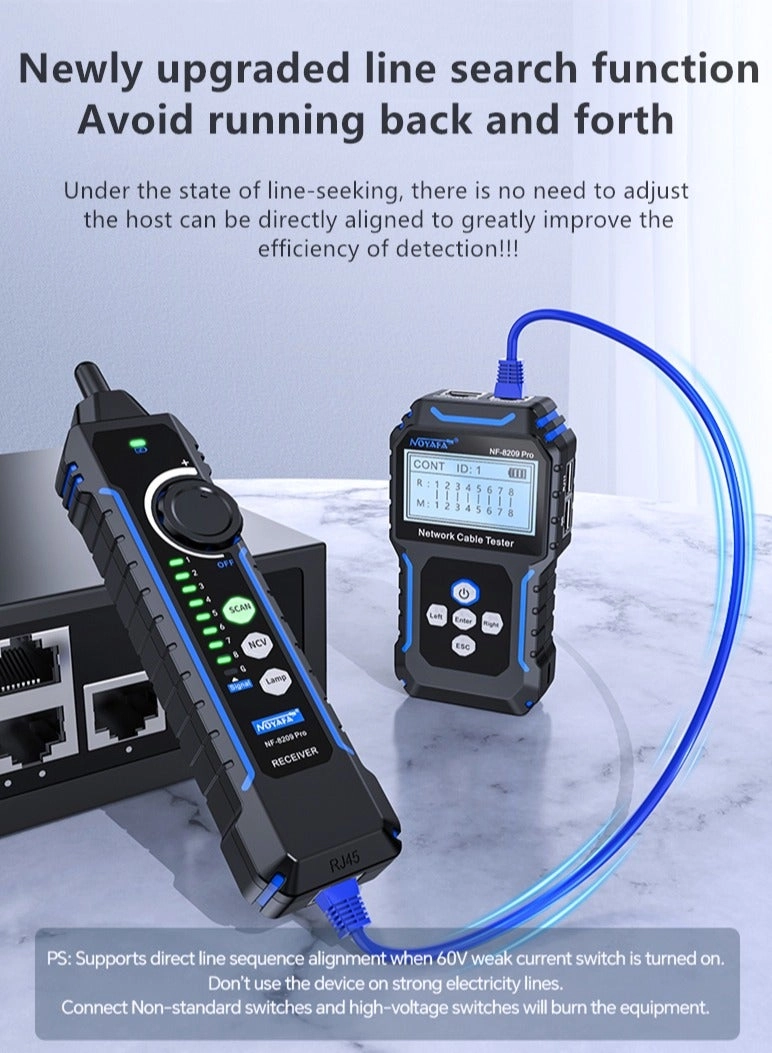

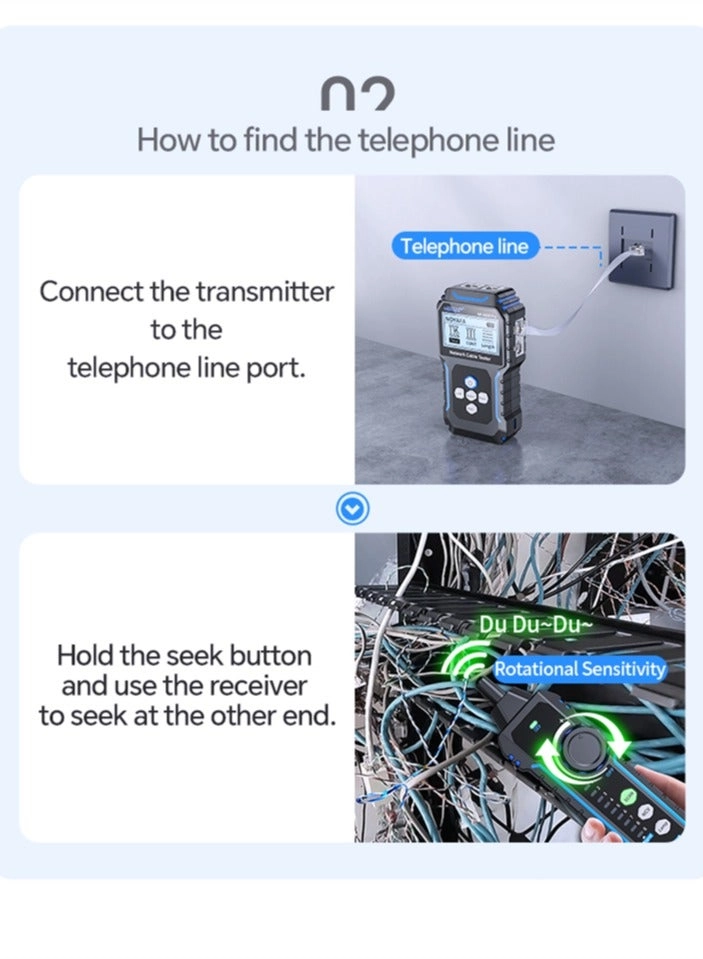

Newly upgraded line search function: Line-to-line dual mode. Under the state of line-seeking, after finding the target line, there is no need to adjust the host can be directly aligned. You can directly measure theshort-circuit, and open-circuit ofthe line sequence, eliminatig the need to run at both ends to improve work efficiency!

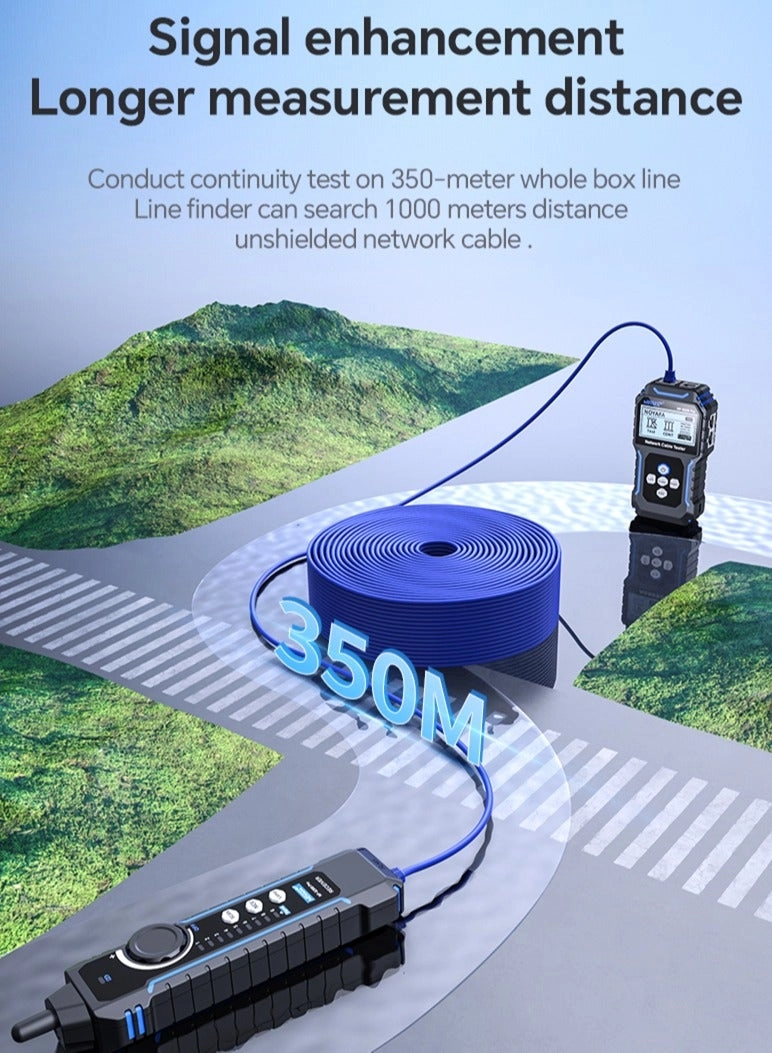

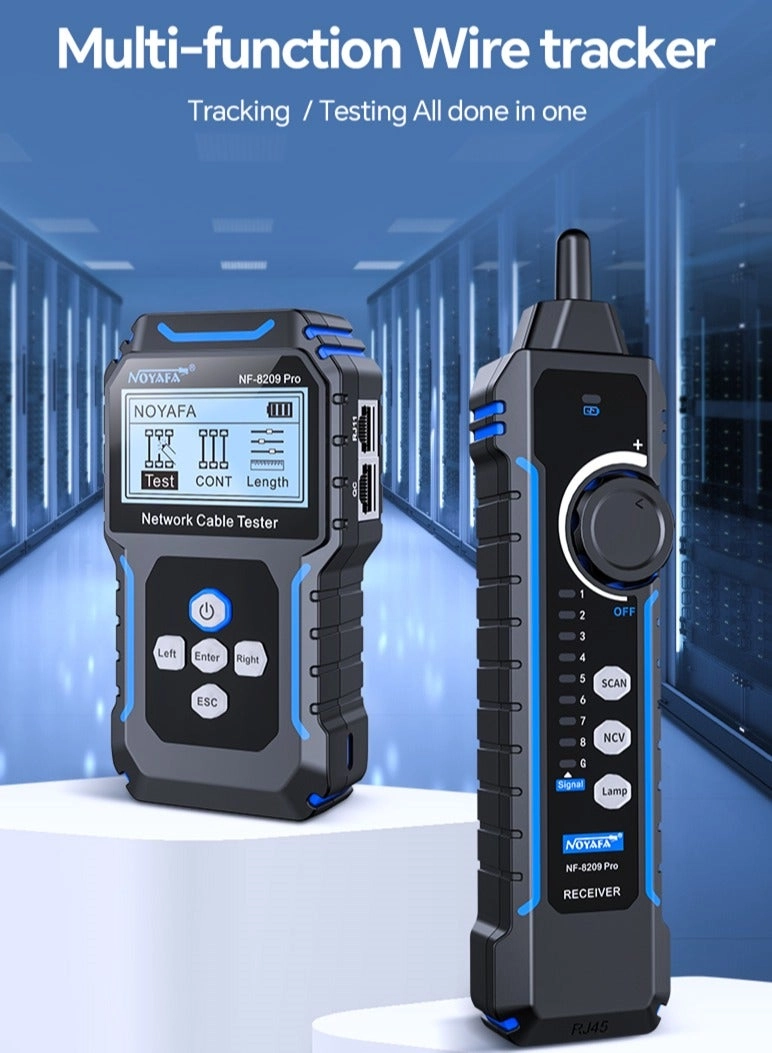

Cable Length Test: NF-8209Pro cable tester adopting the new generation chip and more accurate sensor technology, it can provide AC filter and analog signal and digital mode to track. It can measure cable length in the range of 1-350 meters and detect cable crossovers, short circuits and breaks.
Scanning Modes: The Anti-interference line finder provide there scanning modes can be selected: normal mode/anti-interference mode/PoE mode, meet the work needs of different scenarios. Use it to accurately measure cable length without calibration.

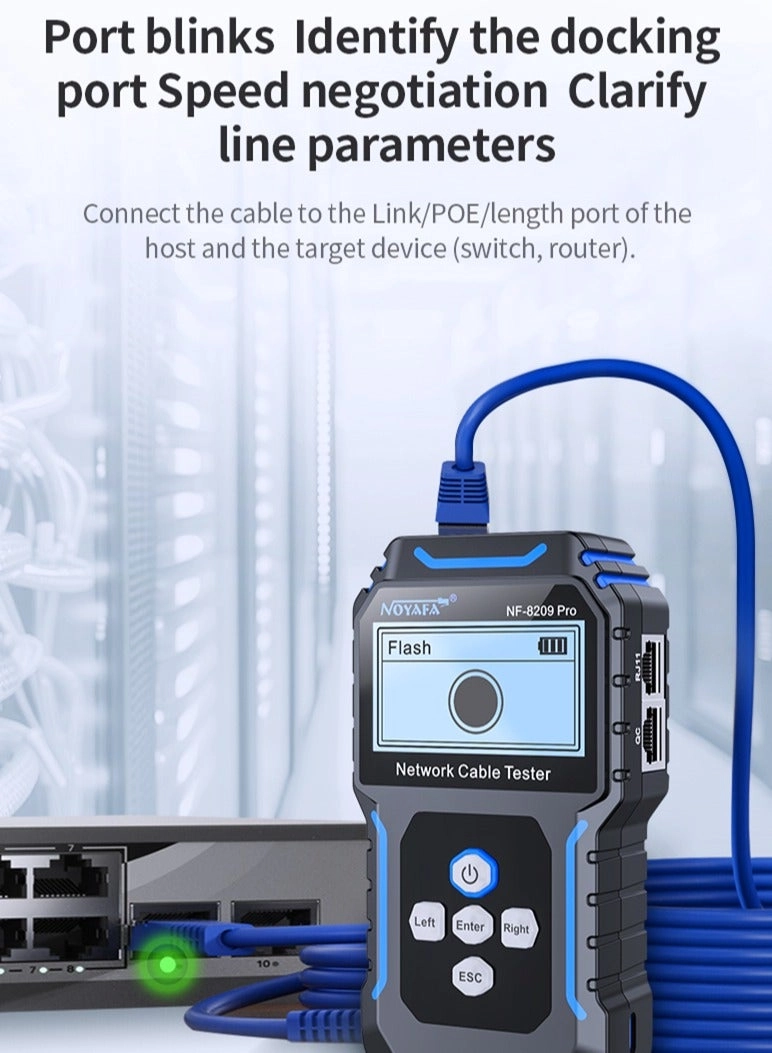

Port Flashing: This ethernet cable tester can through the flashing port indicator on the hub/switch, the hub flashes to locate the network port, which can quickly find the network cable on the switch/router. tcan be used for 10M / 100M/1000M hubs/switches.

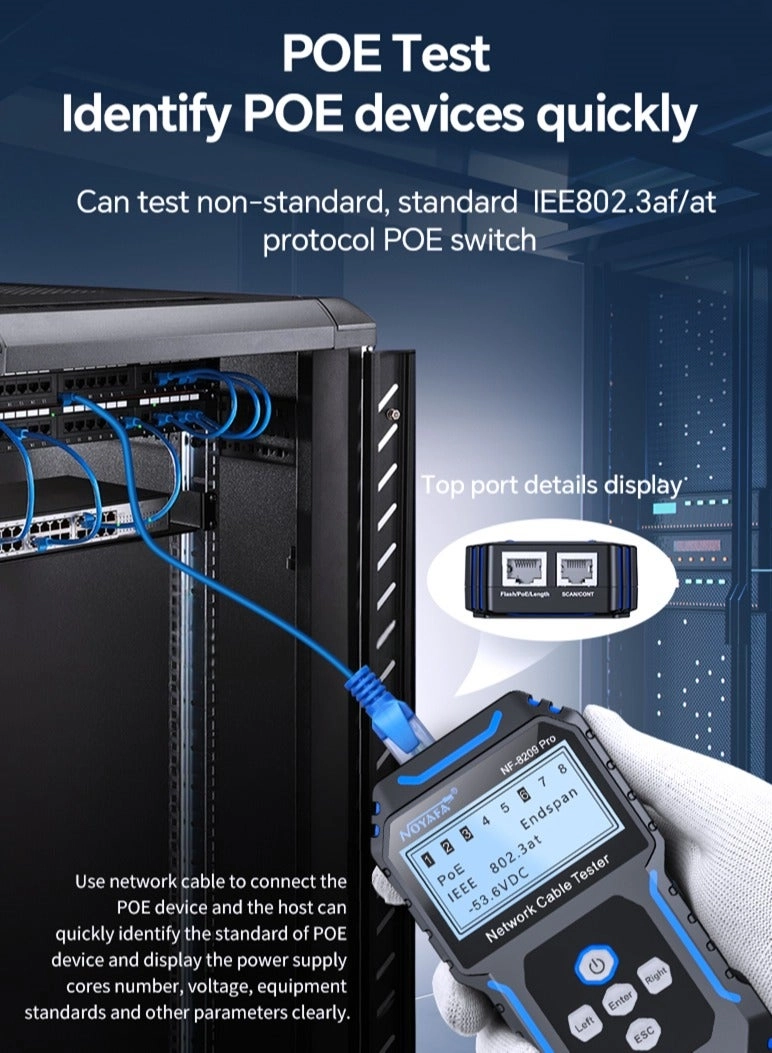

POE Test: Determine which pins are supplying power and detecting voltage, determine the type of PSE (according to/af standard), and detect the presence of AC voltage (50V-1000V). Test the physical state of STP and UTP lan cables.

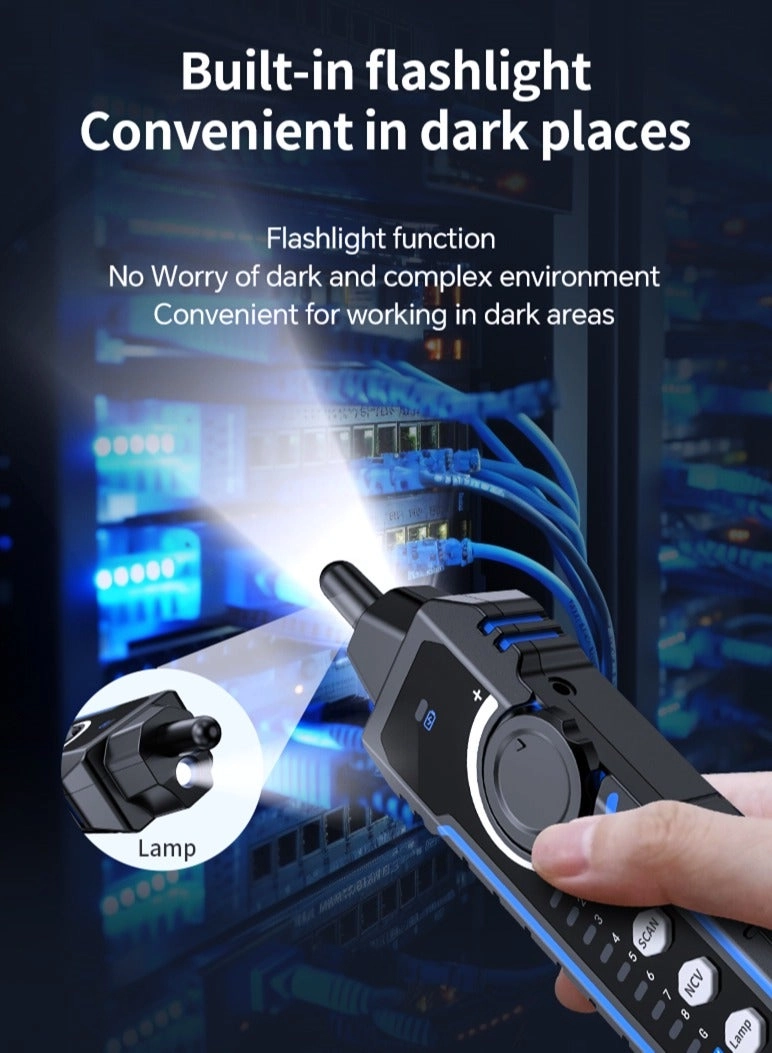

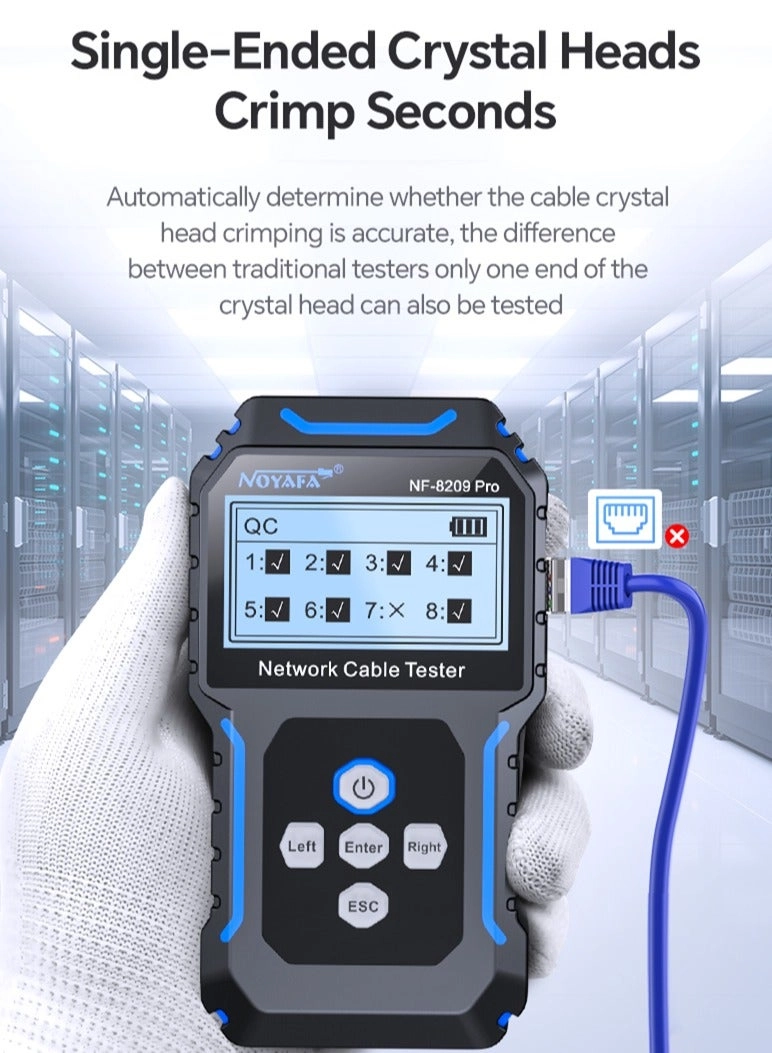

LED Light & Wire Pressing Function: NOYAFA NF-8209Pro network cable tester is equipped with an LED light, so you can use it in low-light or dark environments. It also add a wire crimping function to help you determine whether the crystal head is crimped well.

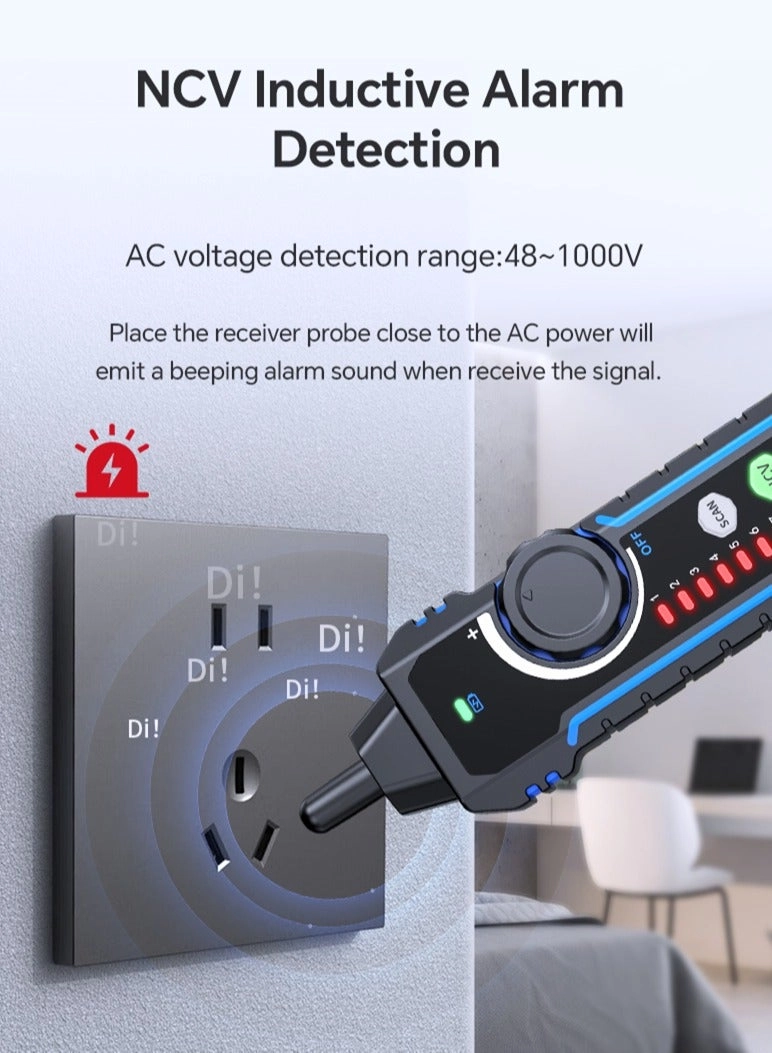

NCV Funtion (Receiver): The NCV function is used to detect the presence of strong current cables in the work environment to ensure construction safety. Briefly press the receiver NCV key to enter the NCV mode. When an AC voltage greater than 70V is detected, the receiver emits a "drip" sound.
